DTC P06AF
DTC P06AF: Engine Stall
General Description

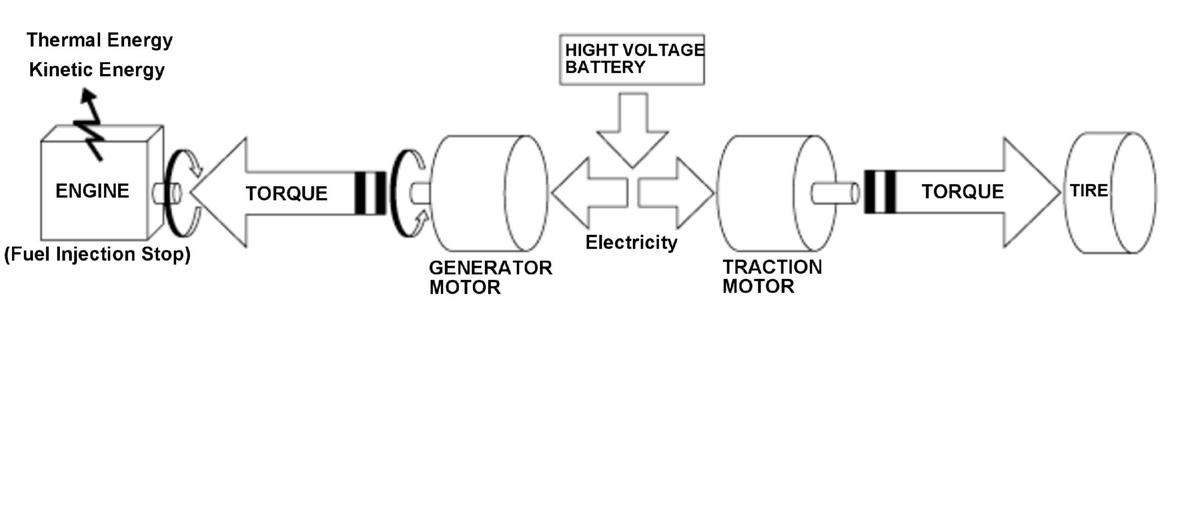

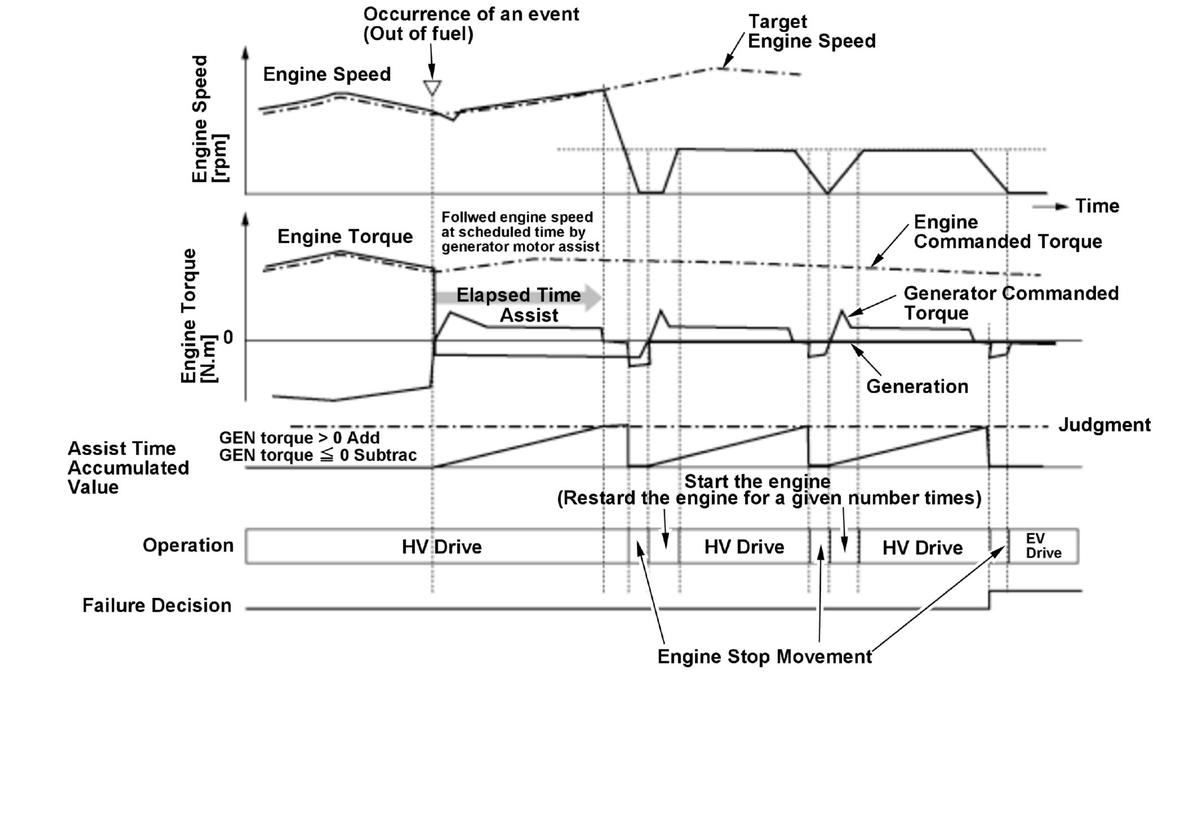

In the event no engine torque is generated, the generator motor will waste the energy of the high voltage battery. It is determined that engine torque is not generated when the engine speed decreases or the engine stops after maintaining engine revolution by assist by the generator motor for a given period of time. When engine torque is still not generated after trying to restart the engine for a given number of times, the powertrain control module (PCM) detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 27 seconds or more (51 seconds or more)* |
| DTC Type | One drive cycle, MIL off |
*: Freeze data can be cleared by disconnecting the 12 volt battery.
Enable Conditions
| Condition | ||
|---|---|---|
| State of the vehicle | HV driving mode | |
| Maintenance mode | ||
| Other | Out of OBD detection | |
| Other than a catalytic converter warm-up | ||
| During fuel injection | ||
Malfunction Threshold
When assist by the generator motor has continued for 27 seconds (51 seconds)* or more.
Possible Cause
- Out of fuel
- Fuel system perfection stop
- Engine stall
- Ignition system relay failure
Confirmation Procedure
Operating Condition
The vehicle drive or stop for at least 27 seconds (51 seconds)*.
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory. The MIL does not come on.
Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
