DTC P07BA

DTC P07BA: Transmission Park Position Sensor/Switch B Circuit High

General Description

Courtesy of HONDA, U.S.A., INC.

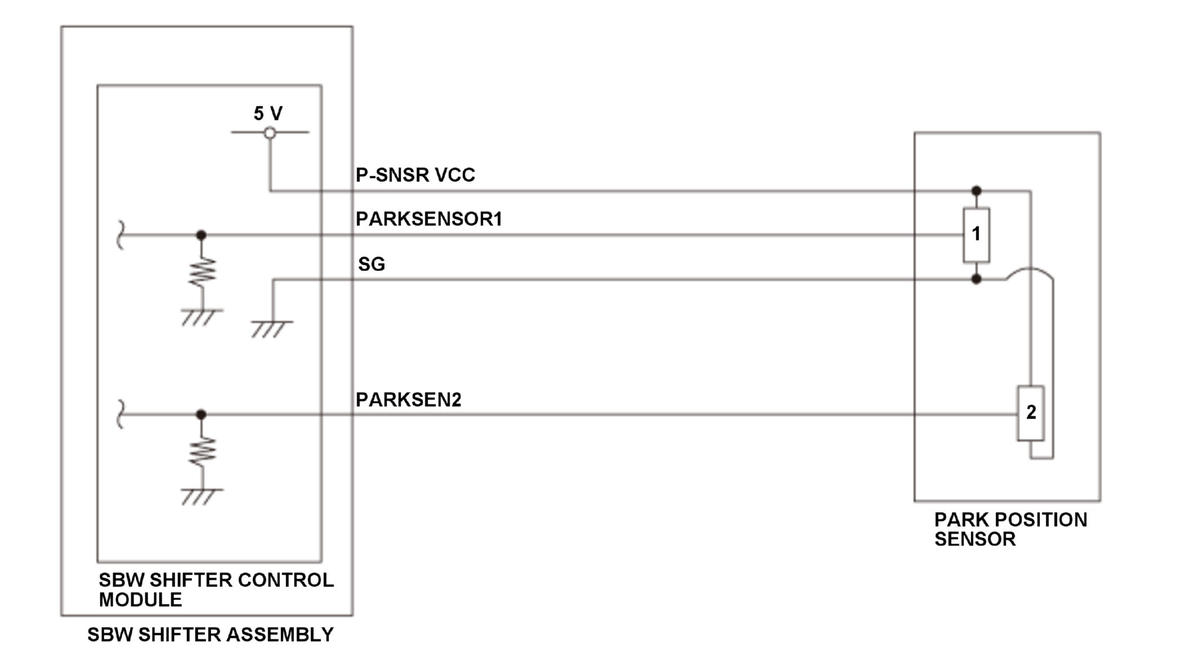

The SBW shifter control module in the SBW shifter assembly judges the parking position by the output voltage from the park position sensor. The SBW shifter control module monitors the park position sensor 2 output voltage, and when the output voltage is a specified value for a specified duration, the powertrain control module (PCM) receives malfunction from the SBW shifter control module, and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution	Continuous
Sequence	None
Duration	2 seconds or more
DTC Type	One drive cycle, MIL on, Shift position indicator blinks

Enable Conditions

Condition
Vehicle	ON mode

Malfunction Threshold

Park position sensor 2 output voltage [Parking Sensor 2 voltage] is 4.855 V or more for at least 2 seconds.

[ ]: HDS Parameter

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

Park position sensor PARKSEN2 line short to power
Park position sensor failure
SBW shifter assembly internal failure

Confirmation Procedure

Operating Condition

Turn the vehicle to the ON mode, and wait for at least 10 seconds.

With the HDS

None.

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected, the MIL comes on, the shift position indicator blinks and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory.

Conditions for clearing the DTC

The shift position indicator comes off by turning the vehicle to the OFF (LOCK) mode. The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
