Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System - Service Information
>>
Overhaul
>>
Alternator Overhaul
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View
Alternator Exploded View

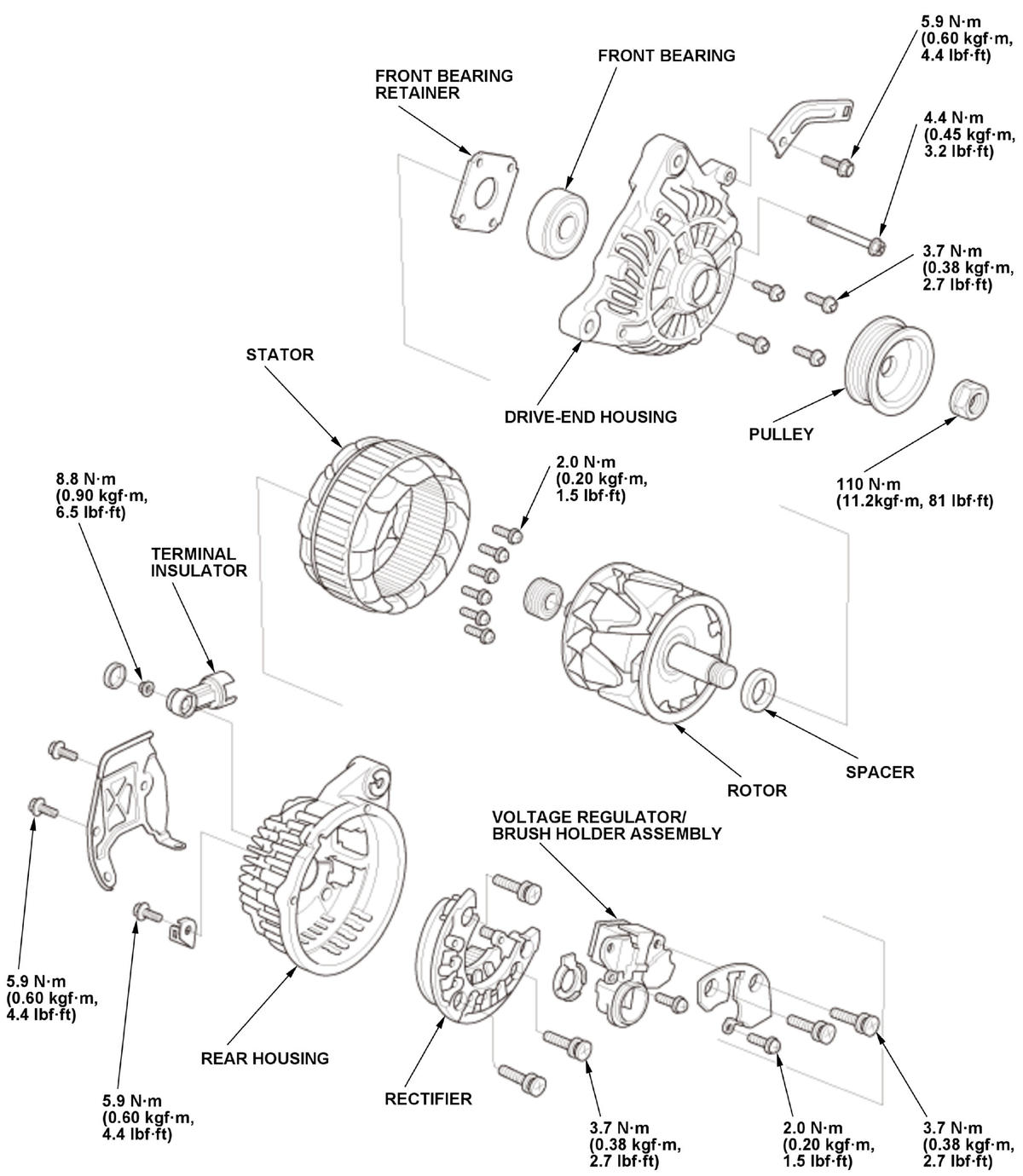

Fig 1: Alternator Exploded View With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
