DTC P0716
DTC P0716: Input/Turbine Speed Sensor "A" Circuit Range/Performance
General Description

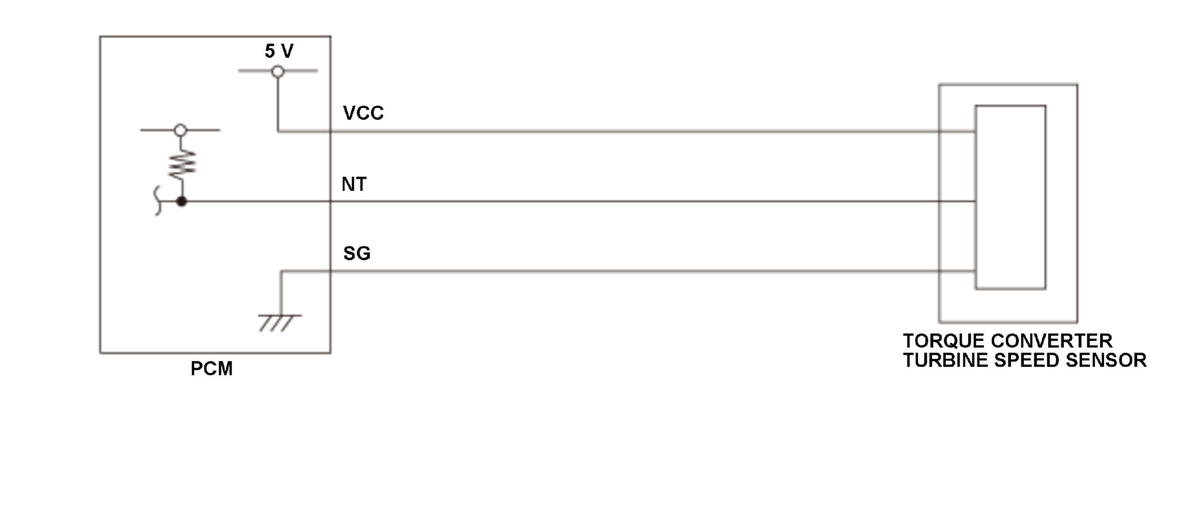

The torque converter turbine speed sensor is attached to the outside of the transmission housing. The torque converter turbine speed sensor detects the number of revolutions of the gear on the input shaft and sends a pulsing signal to the powertrain control module (PCM). The PCM converts the pulses to input shaft speed. If no pulses occur with the input shaft rotating, the PCM detects a malfunction that may be caused by an open, an intermittent open, or a short to ground. Based on the correlation between the torque converter turbine speed sensor and the CVT drive pulley speed sensor, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Continuous |
| Sequence | None |
| Duration | 10 seconds or more |
| DTC Type | One drive cycle, MIL on, A/T gear position indicator blinks |
| OBD Status | PASSED/FAILED/NOT COMPLETED (STILL TESTING) |
Enable Conditions
| Condition | Minimum | Maximum | |
|---|---|---|---|
| Engine speed [Engine Speed] | 500 rpm | - | |
| Drive pulley speed [Input Shaft (Drive Pulley) Speed rpm] | 550 rpm | - | |
| Torque converter turbine speed [Torque Converter Turbine Speed] | 500 rpm | - | |
| 12 volt battery voltage [Battery Voltage] | 10.0 V | - | |
| Shift lever position | Without paddle shifter | D, S, L | |
| With paddle shifter | D, S | ||
| No active DTCs set (prevents monitor from running) | P0501, P0502, P0705, P0706, P0717, P0746, P0777, P0780, P0792, P0793, P0796, P0962, P0963, P0966, P0967, P0970, P0971, P1898, P1899 | ||
| Other | Not when the shift lever is being shifted | ||
| No electrical noise in the torque converter turbine speed sensor output circuit | |||
| When the accelerator pedal is pressed | |||
[ ]:HDS Parameter
Malfunction Threshold

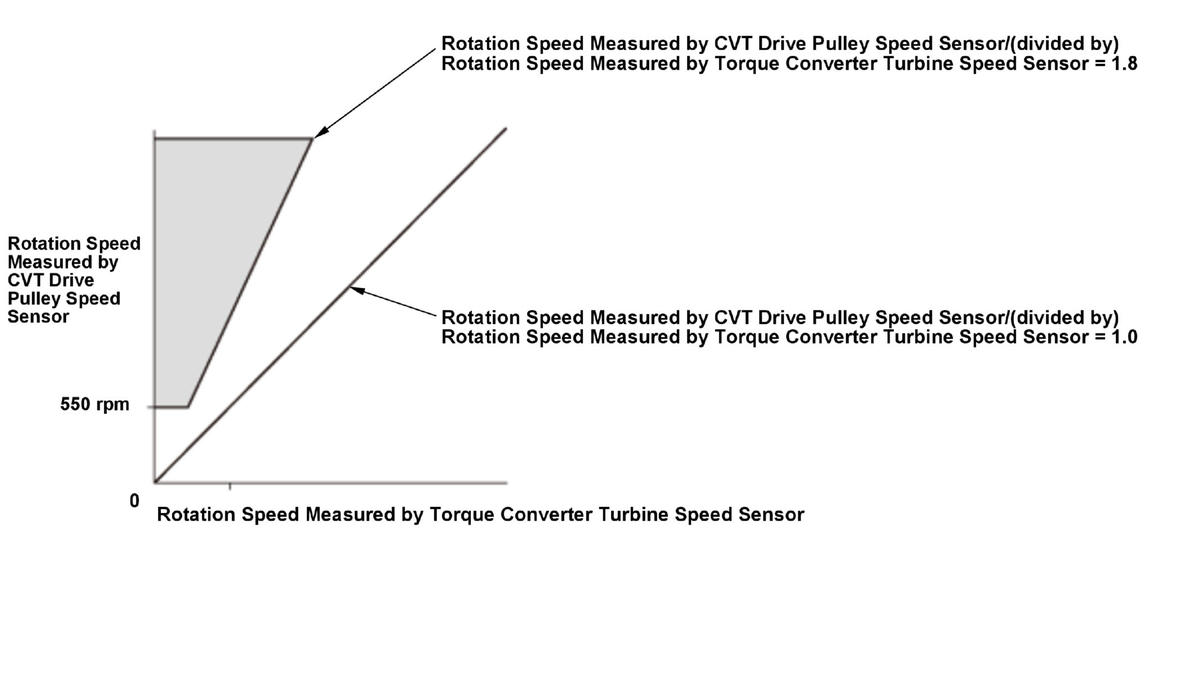

The rotation speed [Torque Converter Turbine Speed] measured by the torque converter turbine speed sensor is less than the rotation speed [Input Shaft (Drive Pulley) Speed rpm] measured by the CVT drive pulley speed sensor by a factor of 0.56 for at least 10 seconds.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Torque converter turbine speed sensor line open (includes connector loose connection or disconnection)
- Torque converter turbine speed sensor line short to ground
- Torque converter turbine speed sensor failure
- PCM internal circuit failure
Confirmation Procedure
Operating Condition
- Start the engine.
- Drive the vehicle at a speed of 19 mph (30 km/h) or more for at least 30 seconds.
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
