DTC P16F6
DTC P16F6: Starter Cut Relay 2 Control Circuit High Voltage
General Description

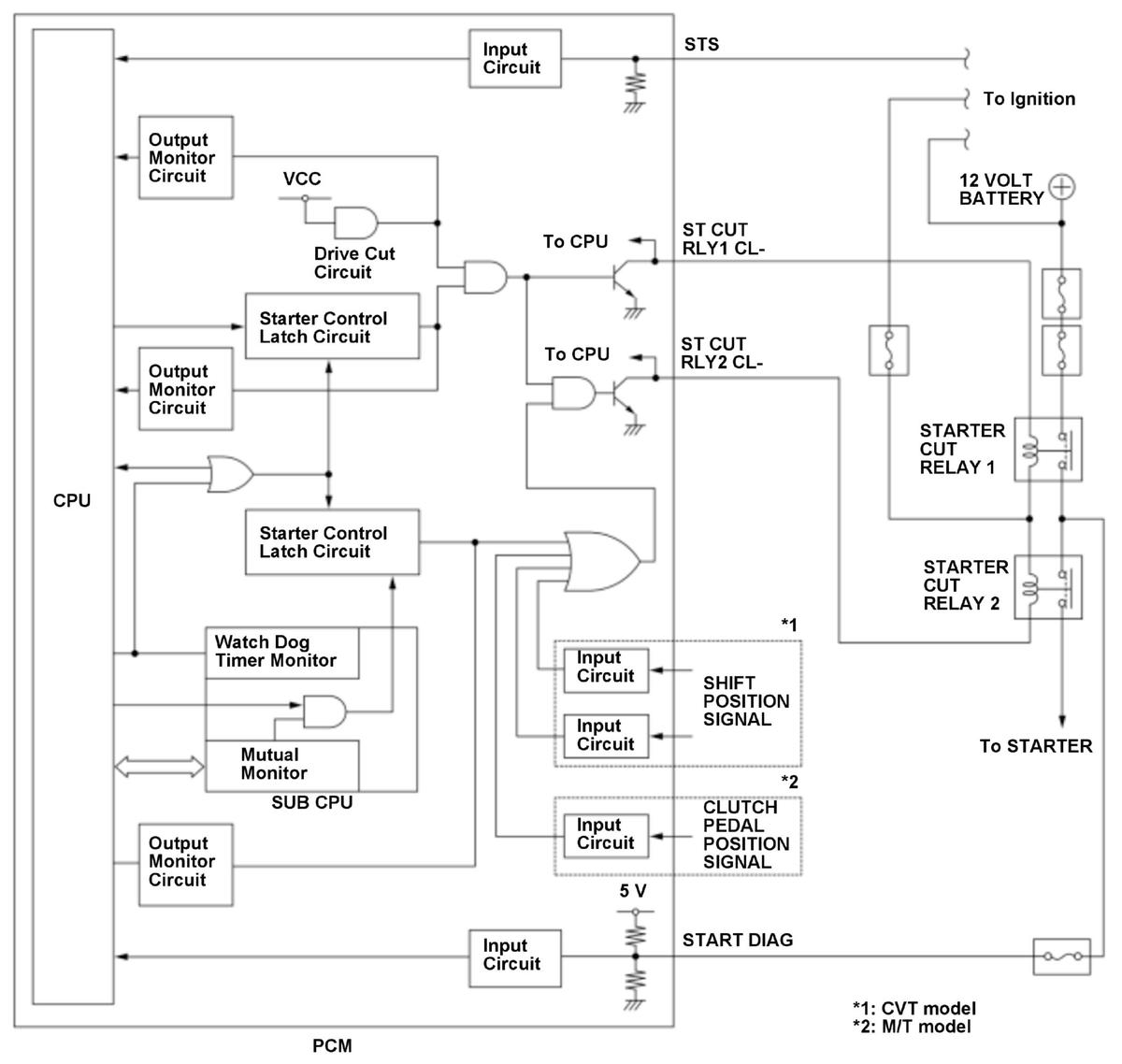

The starter control system prevents the starter from accidentally activating when the shift lever position is not in the P or N position (CVT) or the clutch pedal is released (M/T), or when the engine is running. If the vehicle is turned mistakenly while the shift lever position is not in P or N position (CVT) or the clutch pedal is released (M/T) or while the engine is running, the powertrain control module (PCM) will stop power to the starter cut relays. In this system, two starter cut relays are connected in series (starter cut relay 1, starter cut relay 2) to prevent the starter from running continuously due to a starter cut relay malfunction. To activate the starter, the starter control latch circuit and the drive cut circuit which are in the PCM are switched ON to apply power to the starter cut relays. When the starter control latch circuit ON malfunction is detected, the drive cut circuit shuts down output to the starter control latch circuit to prevent the starter from continuing to run. If only the ST CUT RLY2 CL- return signal is HIGH while the starter control latch circuit and the drive cut circuit are ON (STS ON, CVT in P or N, M/T when the clutch pedal is pressed to the floor), the PCM detects a malfunction of the ST CUT RLY2 CL- line and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 500 milliseconds or more |
| DTC Type | One drive cycle, MIL off |
Enable Conditions
| Condition | |
|---|---|
| Vehicle | START mode |
| Shift lever position* 1 | P, N |
| Clutch pedal* 2 | Pressed |
*1: CVT model
*2: M/T model
Malfunction Threshold
The ST CUT RLY2 CL- return signal is HIGH for at least 500 milliseconds.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Starter cut relay ST CUT RLY2 CL- line short to power
- PCM internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory. The MIL does not come on.
Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command.
