Keyless/Power Door Locks/Security System
For relationships between signals in a system, refer to System Diagram .

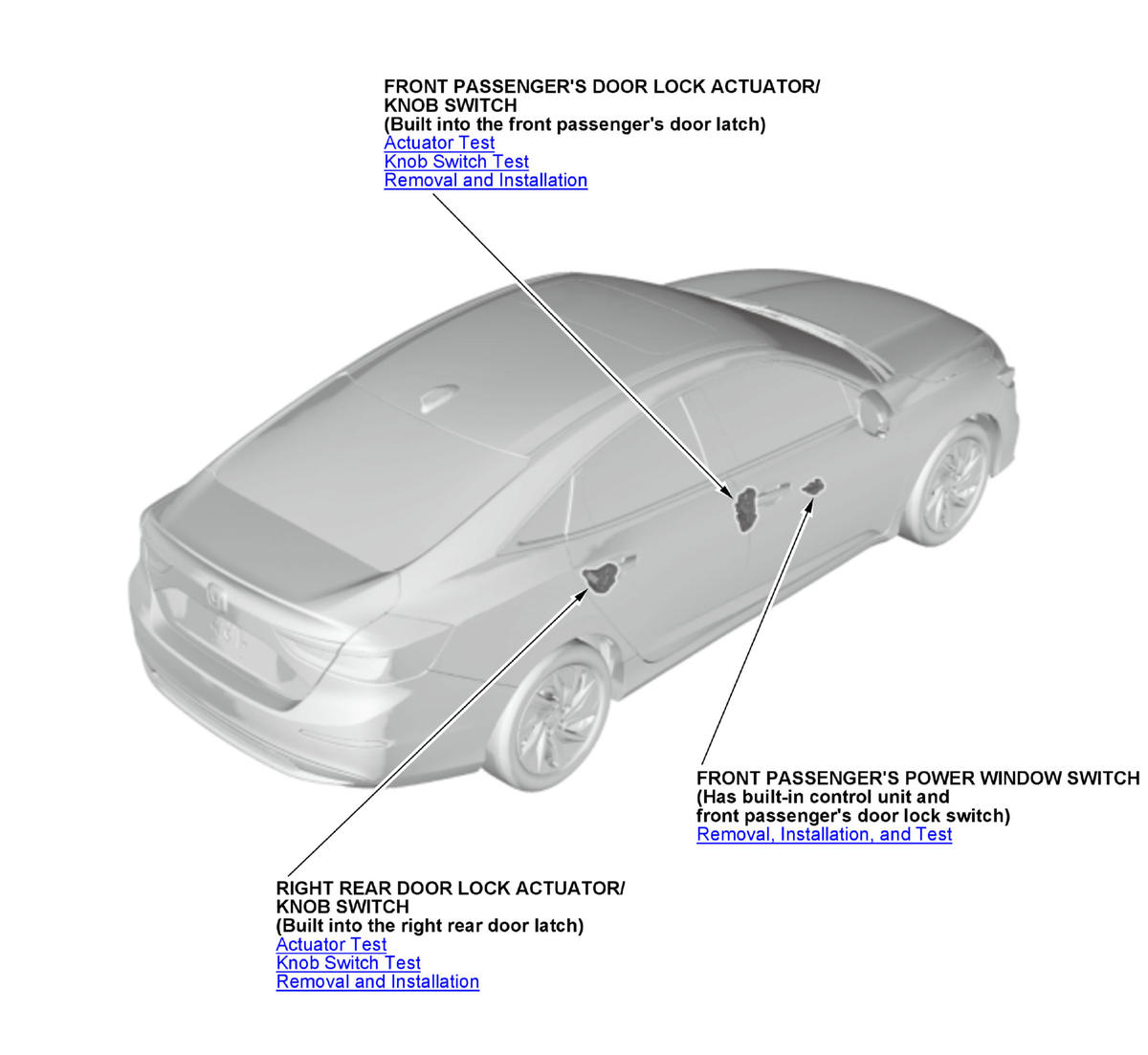

 Courtesy of HONDA, U.S.A., INC.
|

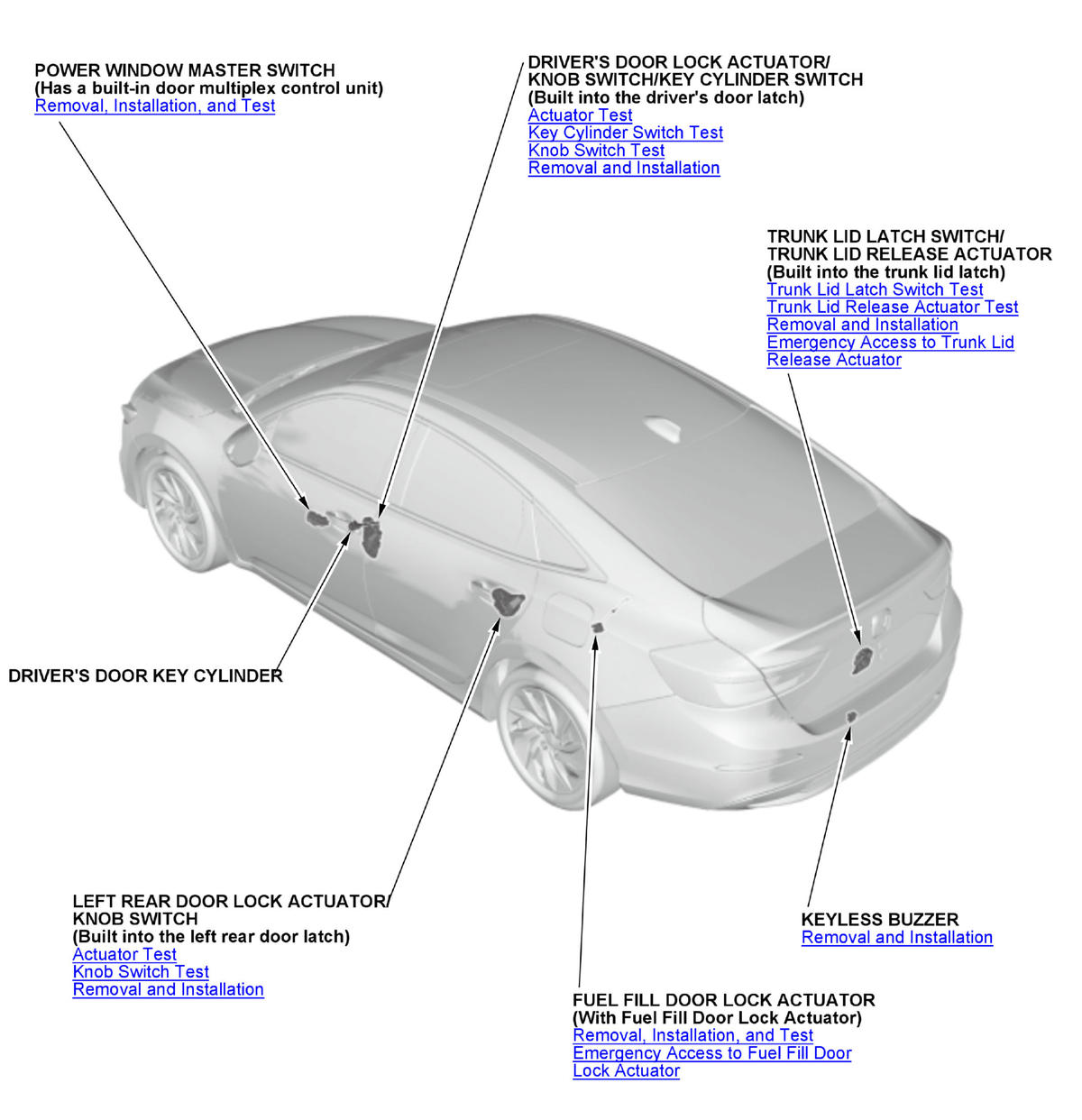

 Courtesy of HONDA, U.S.A., INC.
|

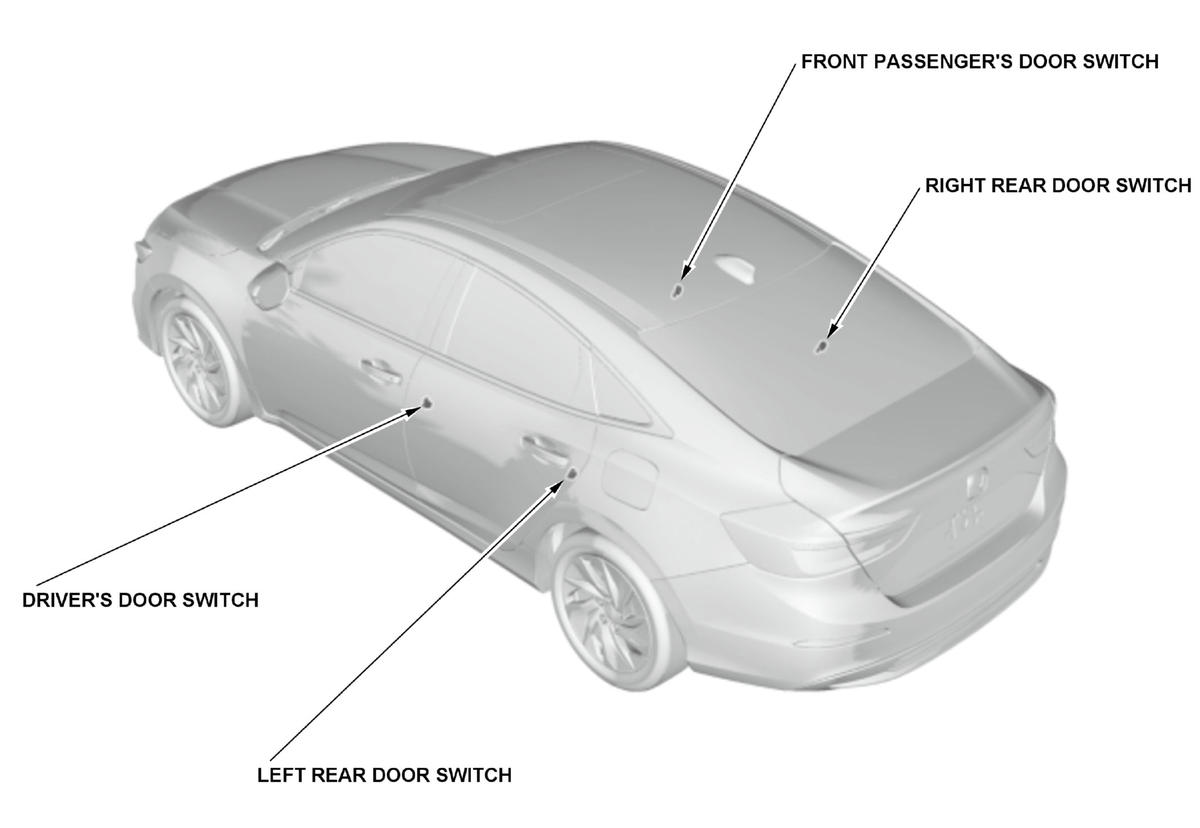

 Courtesy of HONDA, U.S.A., INC.
|

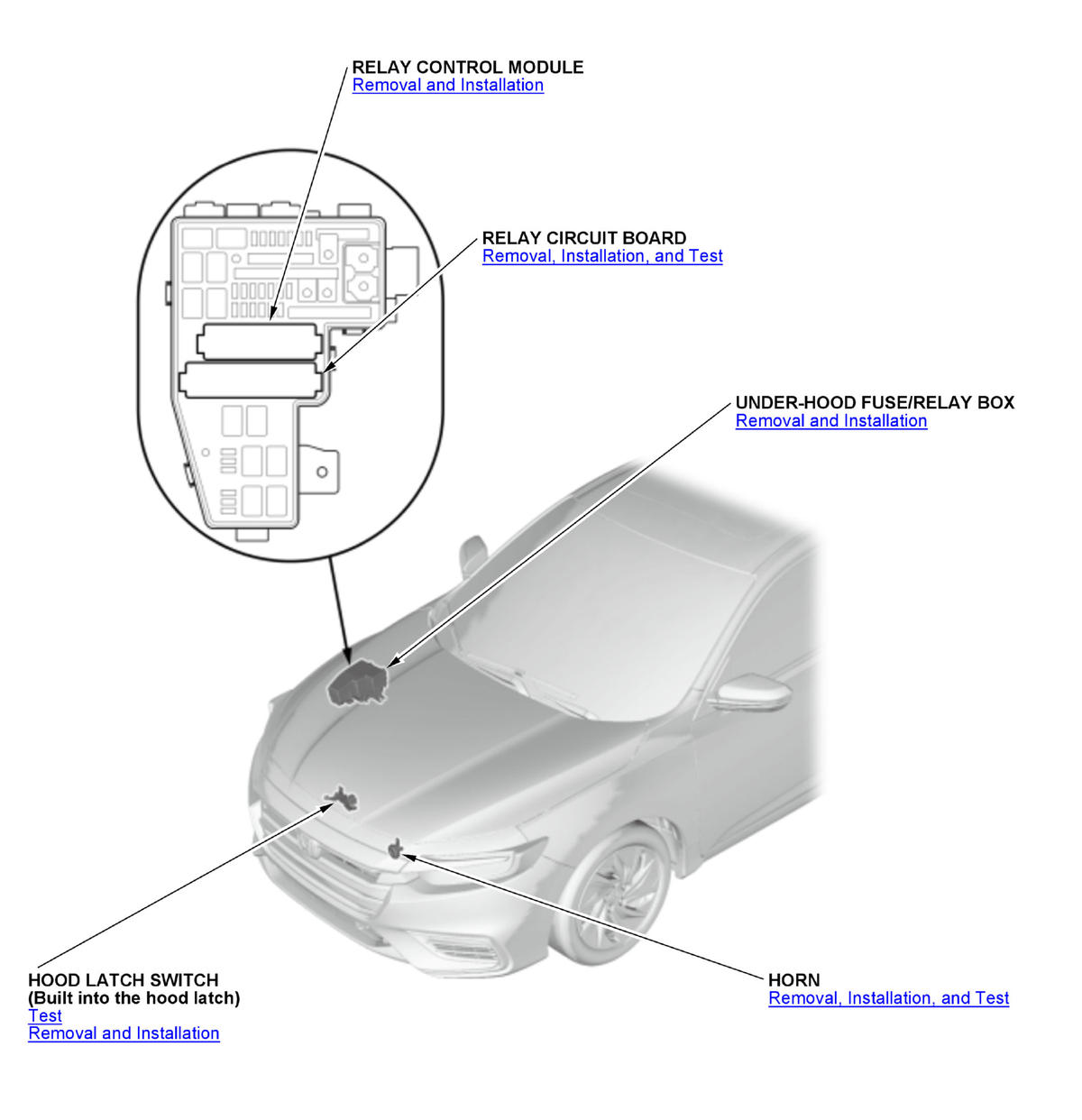

 Courtesy of HONDA, U.S.A., INC.
|

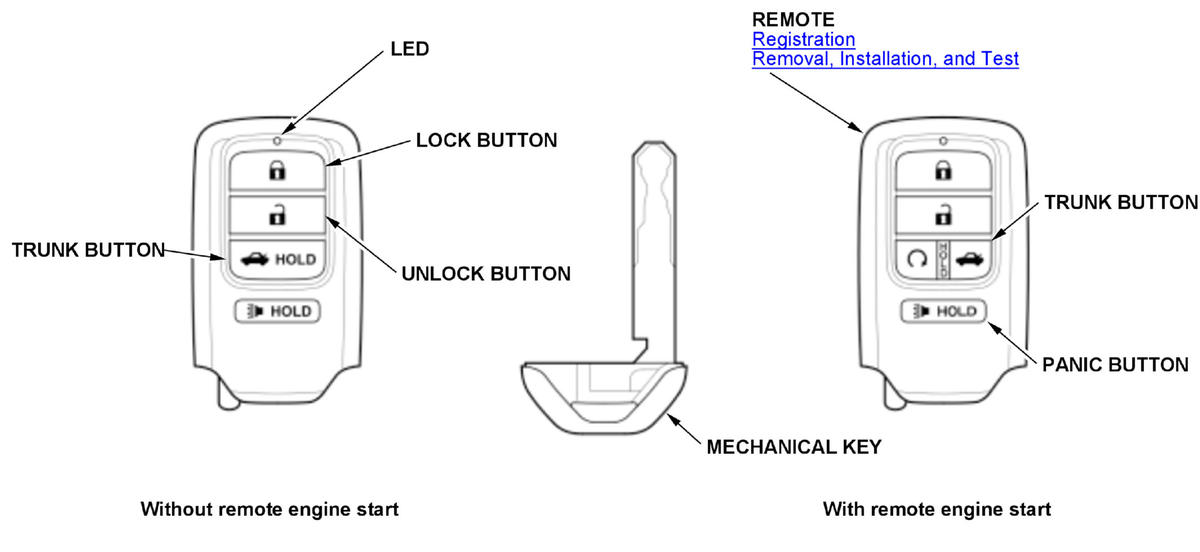

 Courtesy of HONDA, U.S.A., INC.
|

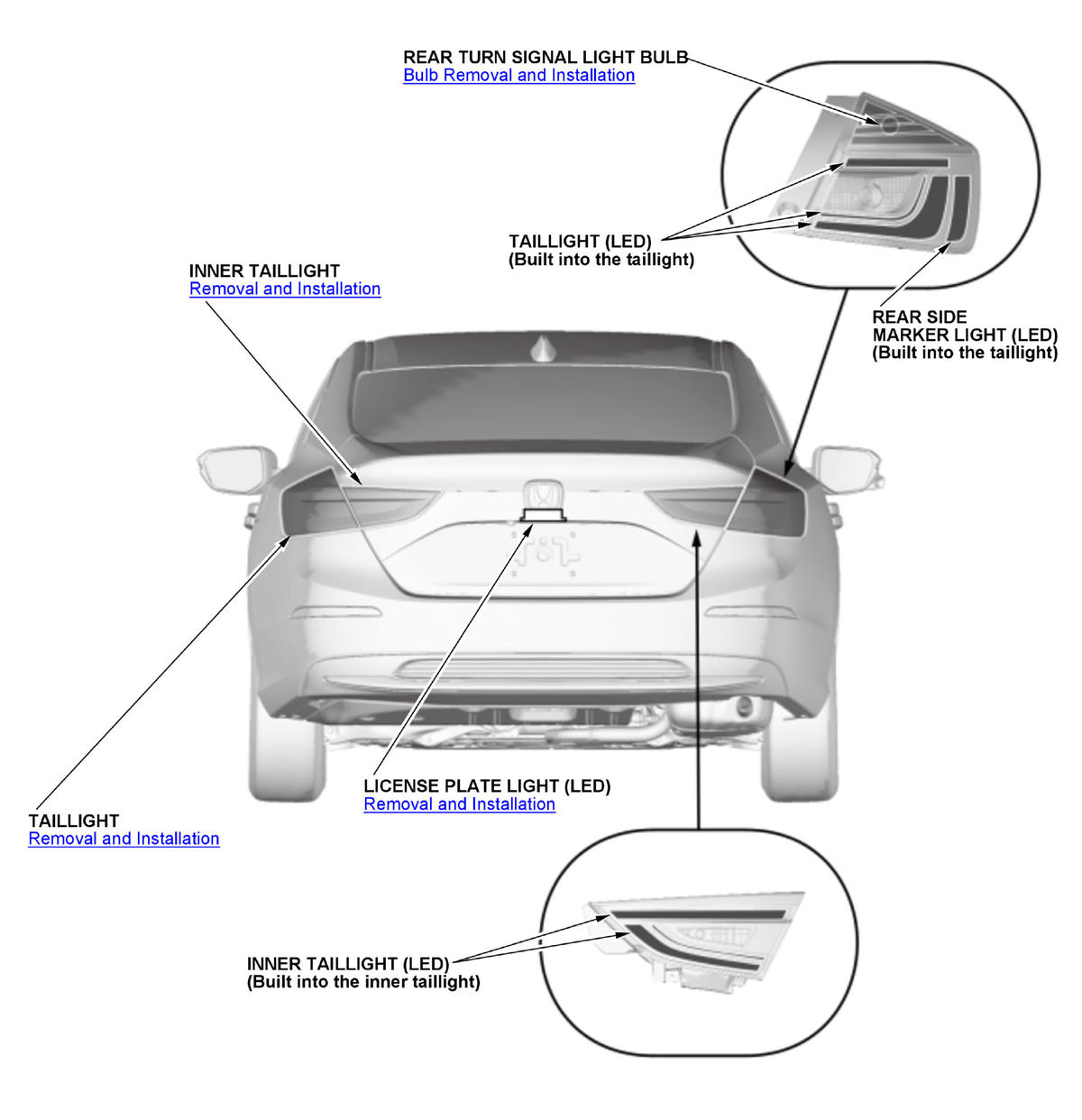

 Courtesy of HONDA, U.S.A., INC.
|

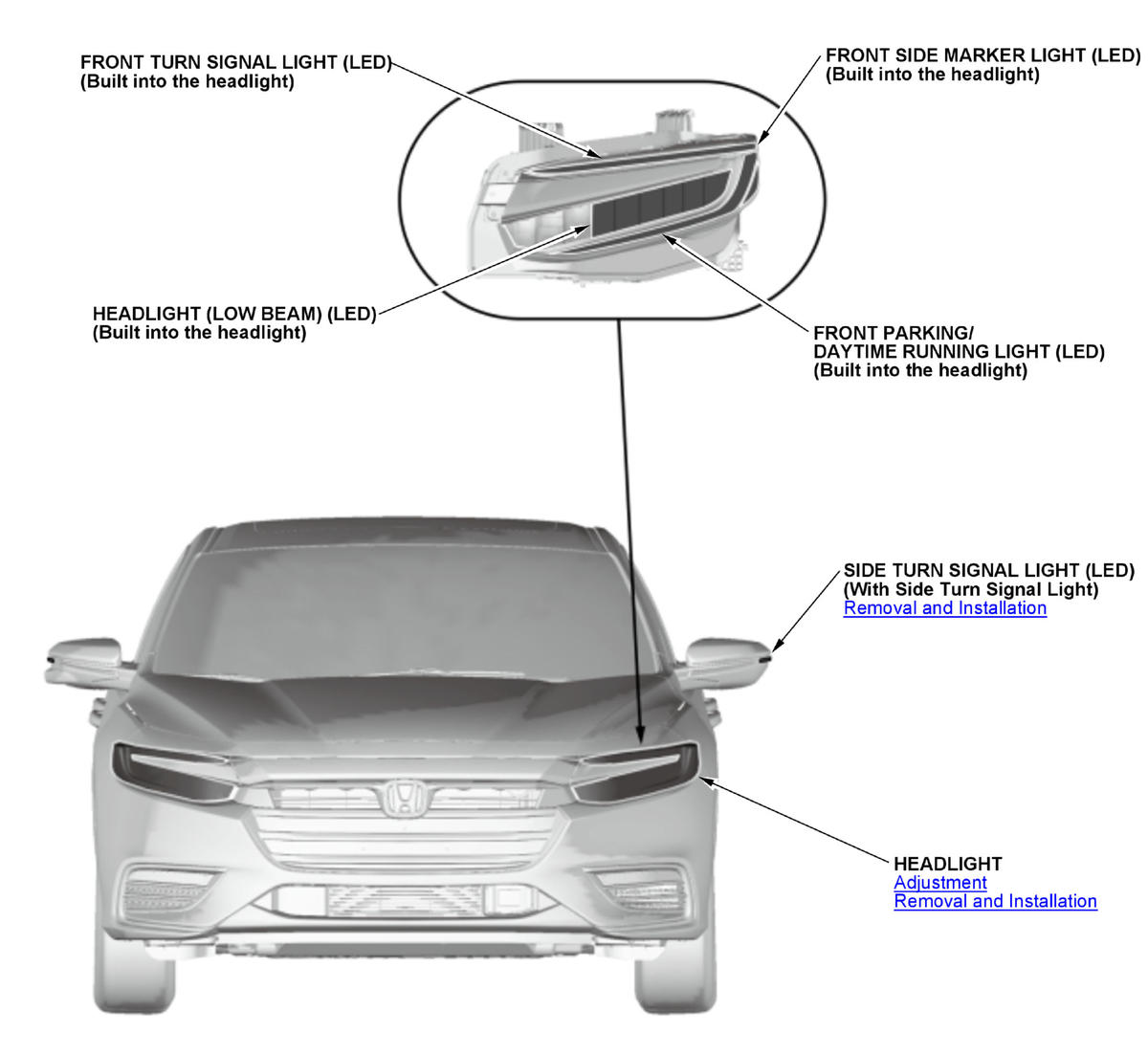

 Courtesy of HONDA, U.S.A., INC.
|

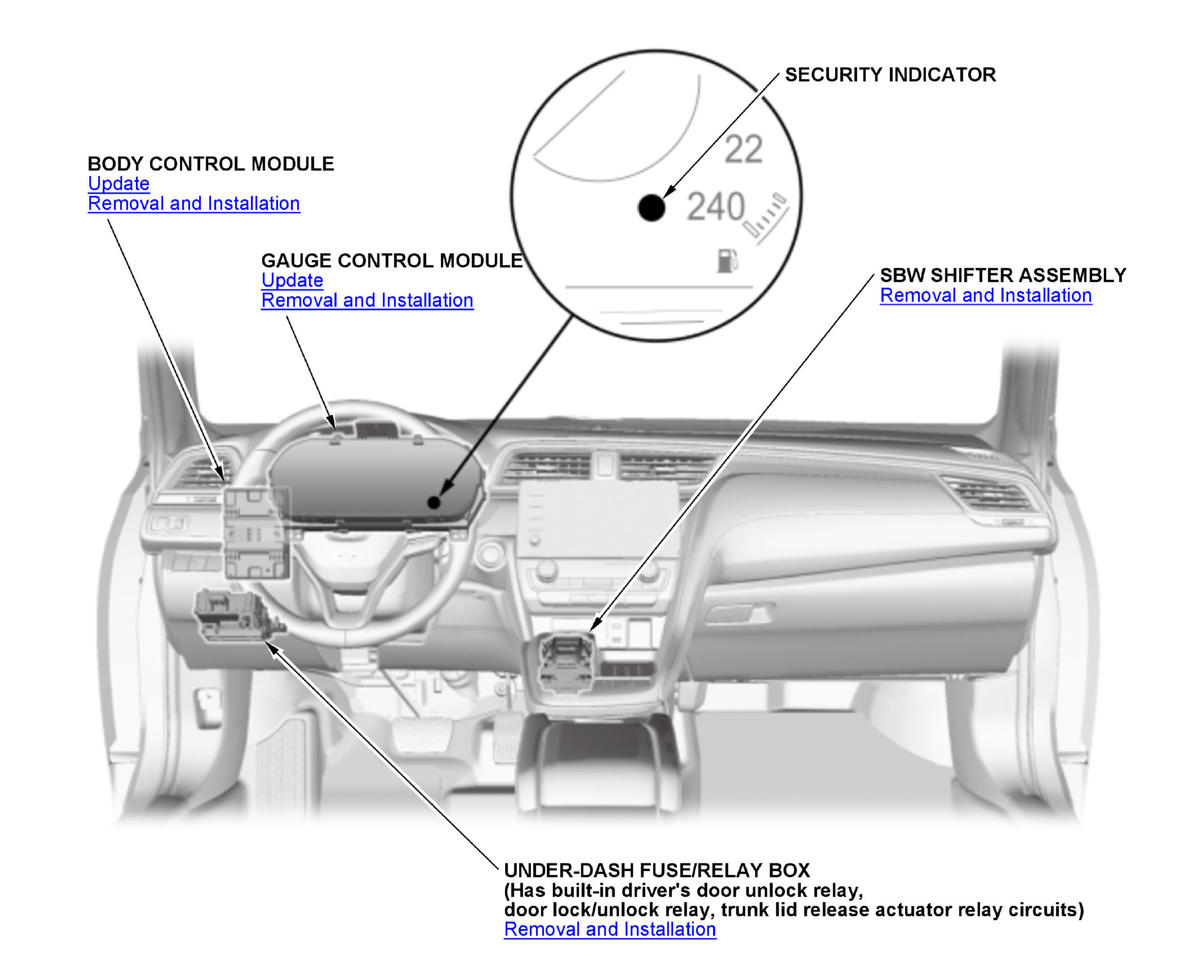

 Courtesy of HONDA, U.S.A., INC.
|
