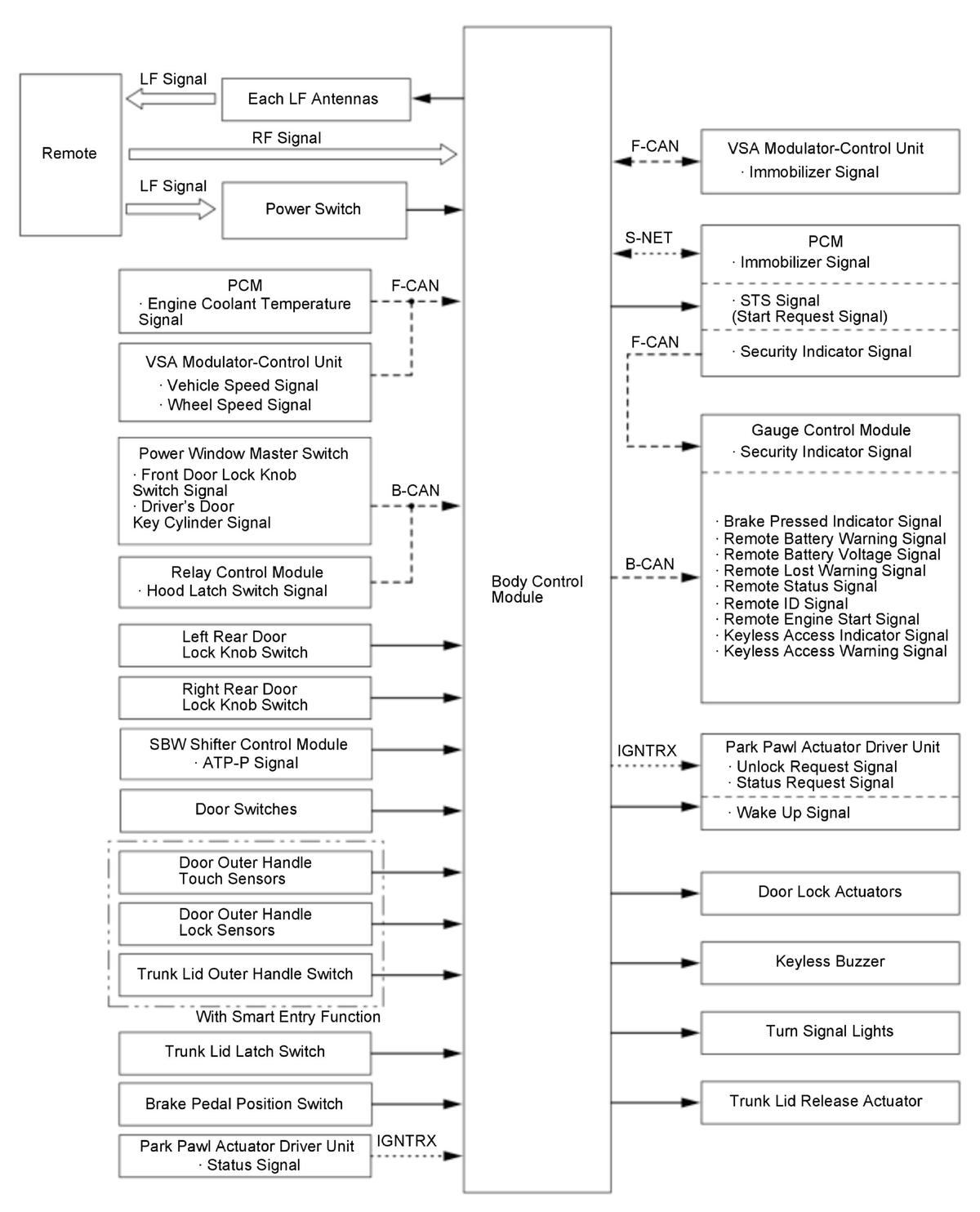

Keyless Access - System Diagram

For locations of each component on the vehicle, refer to the Component Location Index:

• Keyless Access System
• Keyless/Power Door Locks/Security System

Courtesy of HONDA, U.S.A., INC.
