DTC P0713: General Description

Courtesy of HONDA, U.S.A., INC.

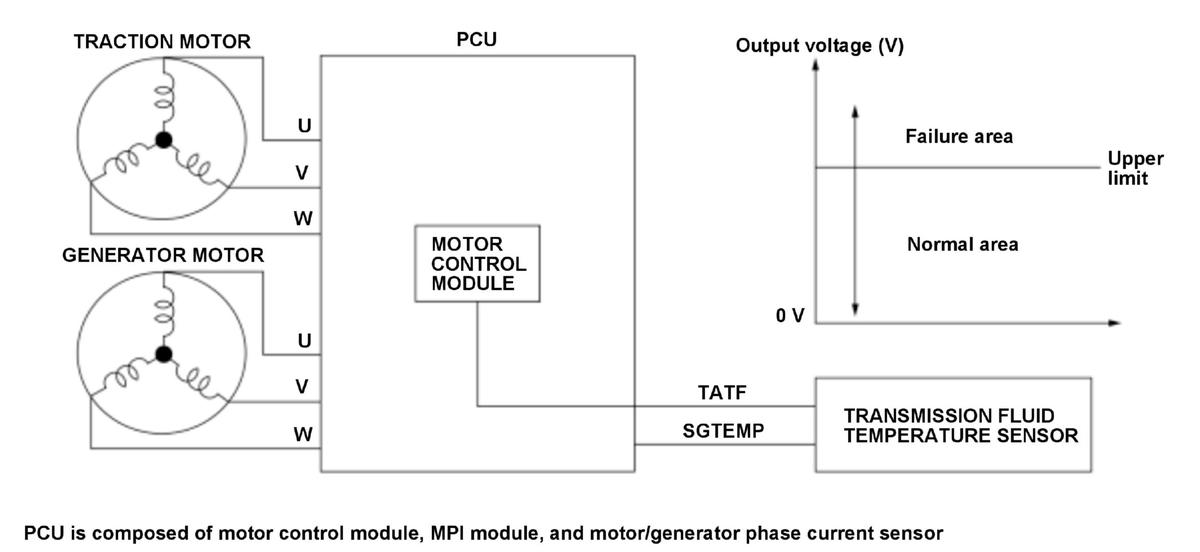

The power control unit (PCU) monitors the transmission fluid temperature sensor value to prevent malfunction of traction motor and generator motor due to heat generation. If the transmission fluid temperature sensor voltage is excessively high for a set time, the motor control module in the PCU detects a malfunction and stores a DTC.
