DTC P0A4D: General Description

Courtesy of HONDA, U.S.A., INC.

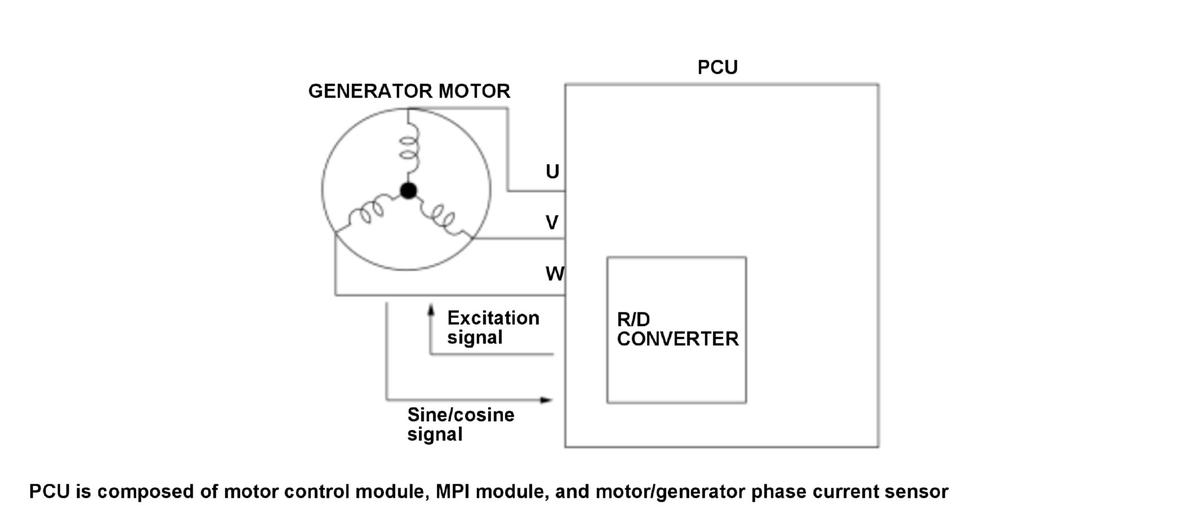

The power control unit (PCU) detects the generator motor position by the R/D converter based on the generator motor rotor position sensor signals. If the sine/cosine signal offset voltage is a specified voltage for a specified time, the motor control module in the PCU detects a malfunction and stores a DTC.
