DTC P0A5F: General Description

Courtesy of HONDA, U.S.A., INC.

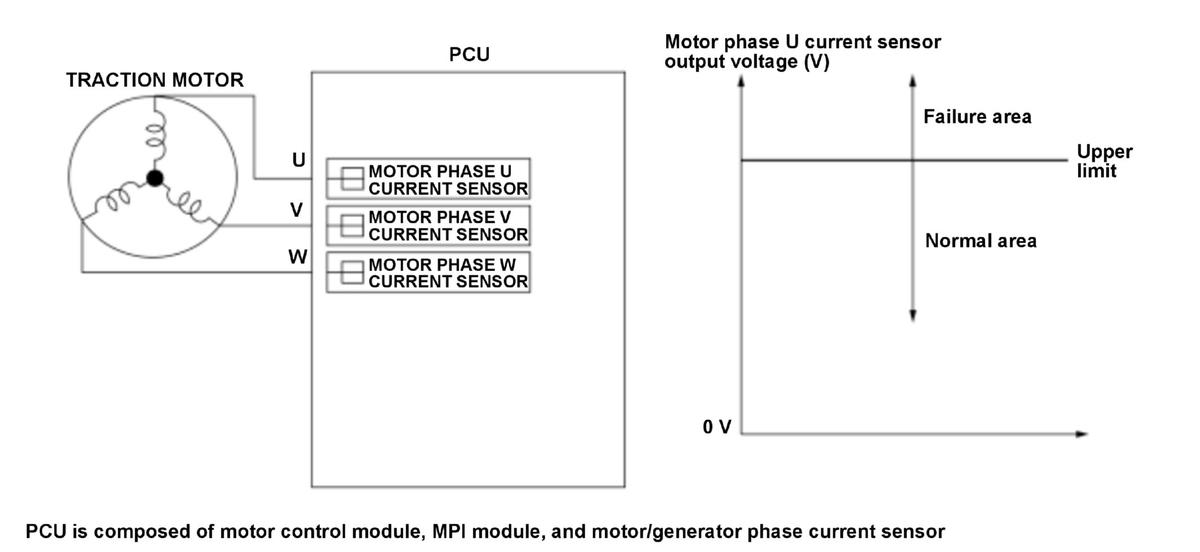

The power control unit (PCU) controls the traction motor output based on the motor phase current sensor signals. When the motor phase U current sensor output voltage is a specified voltage for a set time, the motor control module in the PCU detects a malfunction and stores a DTC.
