DTC P0A76: General Description

Courtesy of HONDA, U.S.A., INC.

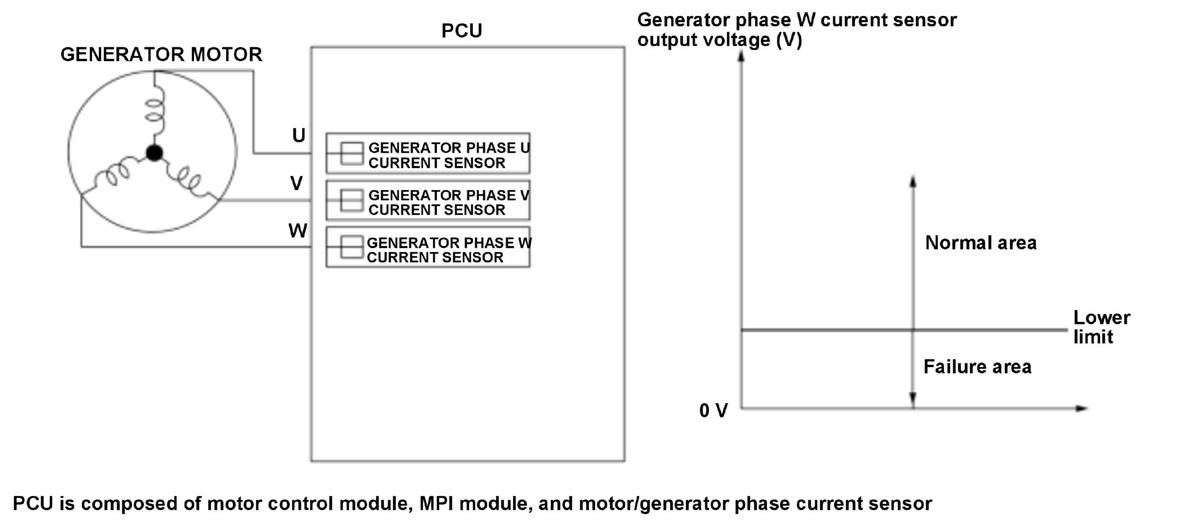

The power control unit (PCU) controls the generator motor output based on the generator phase current sensor signals. When the generator phase W current sensor output voltage is a specified voltage for a set time, the motor control module in the PCU detects a malfunction and stores a DTC.
