DTC P1D11: General Description

Courtesy of HONDA, U.S.A., INC.

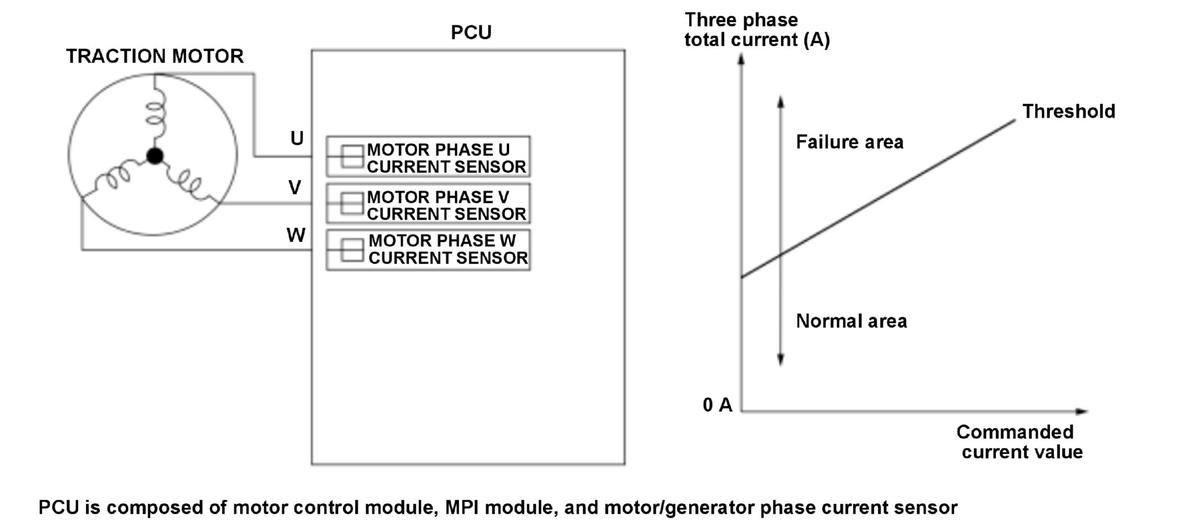

The power control unit (PCU) controls the motor output based on the motor phase current sensor signals. If the sum of three motor phase current sensor current is out of a specified range for a specified time, the motor control module in the PCU detects a malfunction and stores a DTC.
