DTC P1D1C: General Description

Courtesy of HONDA, U.S.A., INC.

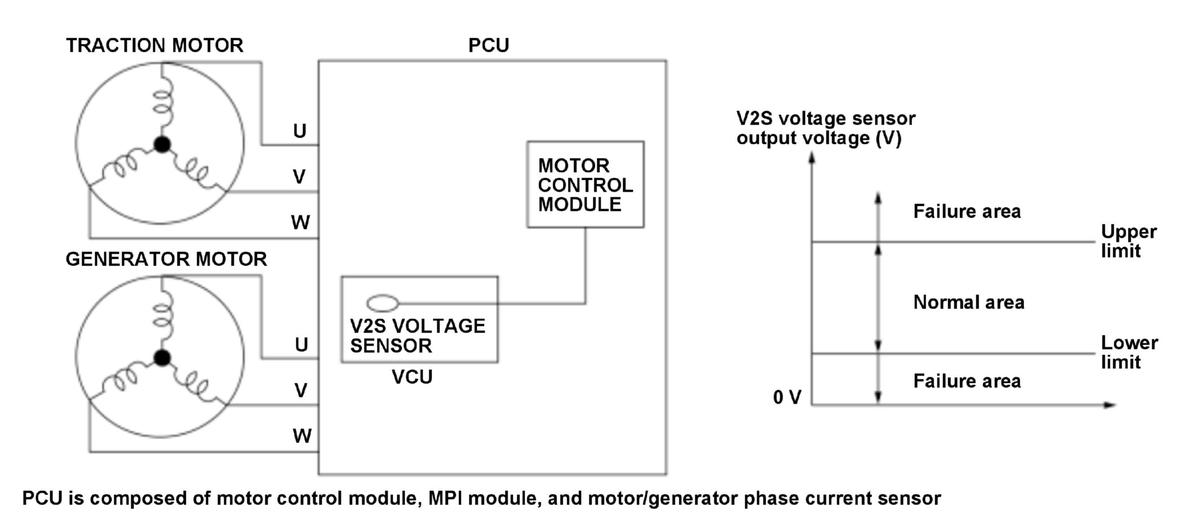

The power control unit (PCU) controls the traction motor and generator motor output based on the V2S voltage sensor signals. If the signal voltage from the V2S voltage sensor exceeds a set value for a specified time, the motor control module in the PCU detects a malfunction and stores a DTC.
