DTC P1D79: General Description

Courtesy of HONDA, U.S.A., INC.

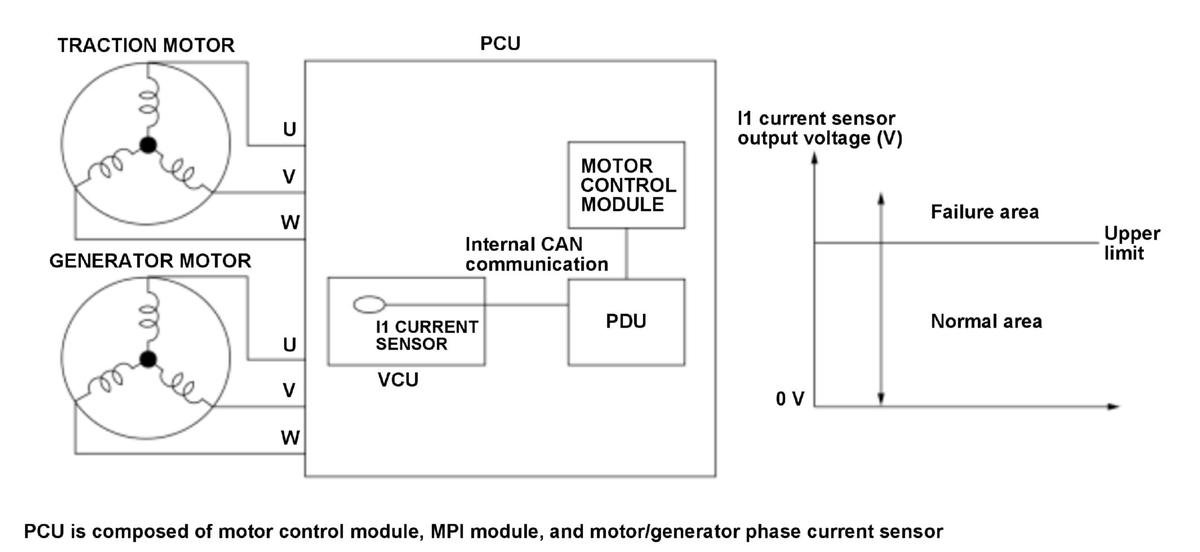

The power control unit (PCU) controls the voltage control unit (VCU) output based on the I1 current sensor signals. If the signal voltage from the I1 current sensor exceeds a set value for a specified time, the motor control module in the PCU detects a malfunction and stores a DTC.
