DTC P1D7B: General Description

Courtesy of HONDA, U.S.A., INC.

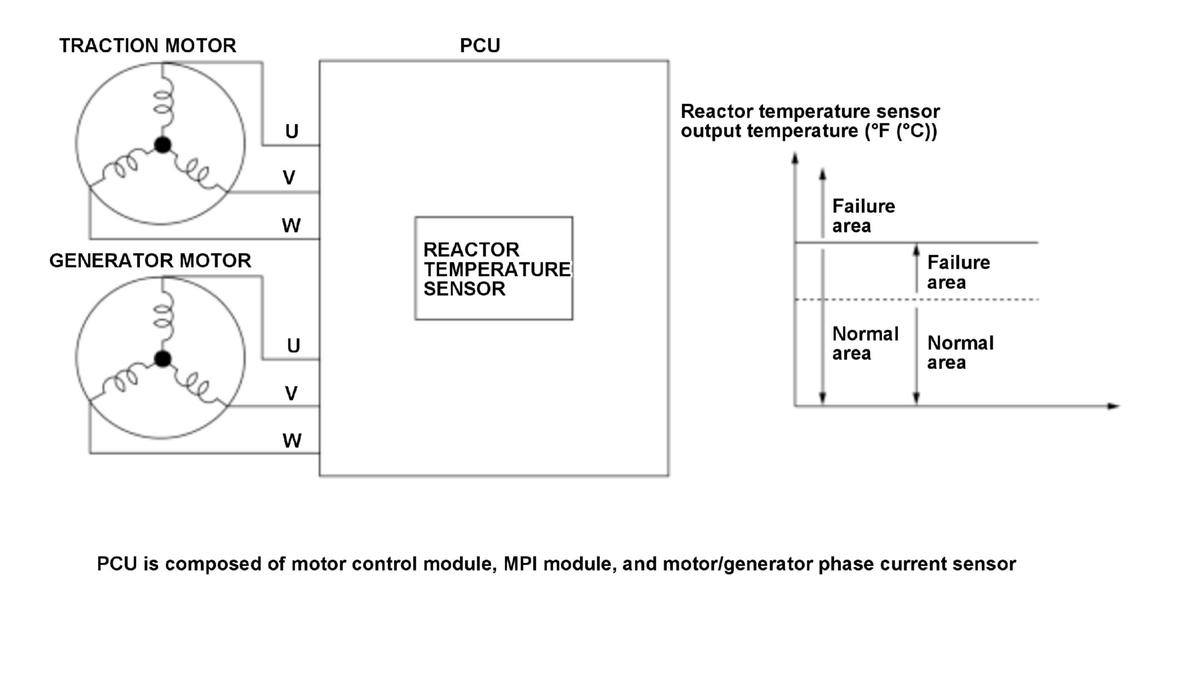

The power control unit (PCU) monitors the reactor temperature sensor value to prevent malfunction of the reactor due to heat generation. If the reactor temperature sensor output temperature is a specified temperature for a specified time, the motor control module in the PCU detects a malfunction and stores a DTC.
