DTC P1D97: General Description

Courtesy of HONDA, U.S.A., INC.

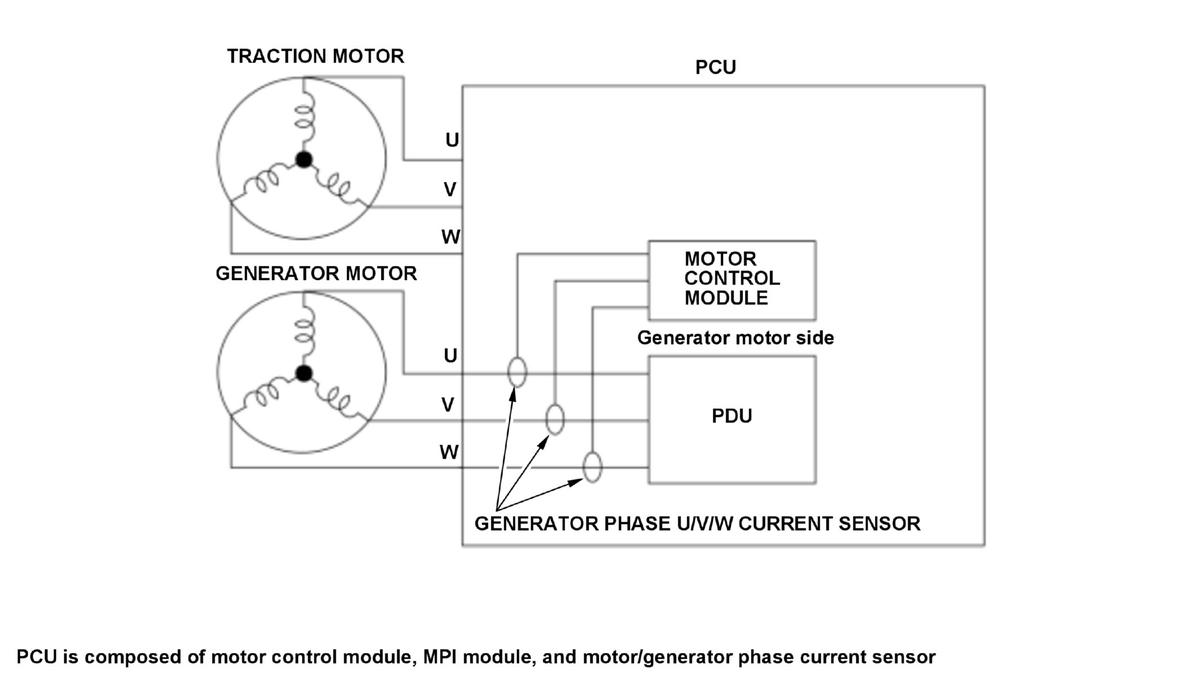

The power control unit (PCU) controls the generator motor output based on the generator phase current sensor signals. If a failure in the current sensor or sensor power supply is detected in two phases or more, it is determined more than one failure occurs and the PCU detects a malfunction and stores a DTC.
