DTC P1DA6: General Description

Courtesy of HONDA, U.S.A., INC.

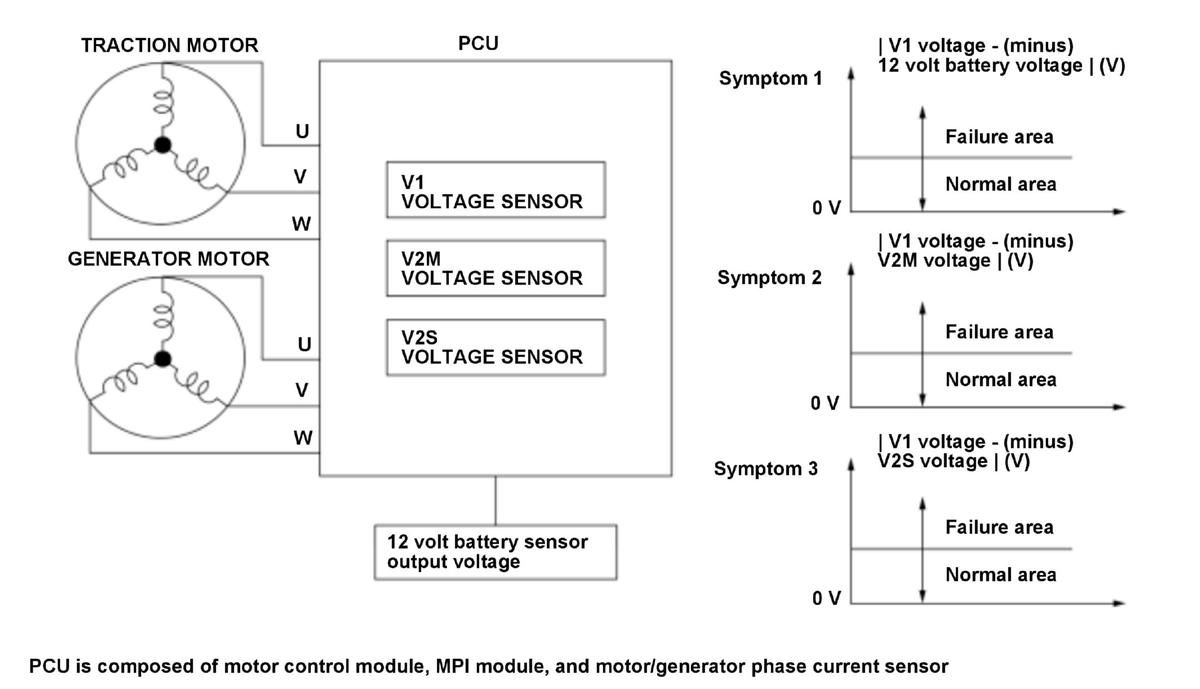

The power control unit (PCU) controls the voltage control unit (VCU) output based on the V1 voltage sensor signals. If a calculated output voltage of the V1 voltage sensor (V V1 S) is out of a specified value for a specified time, the motor control module in the PCU detects a malfunction and stores a DTC.
