VSA System

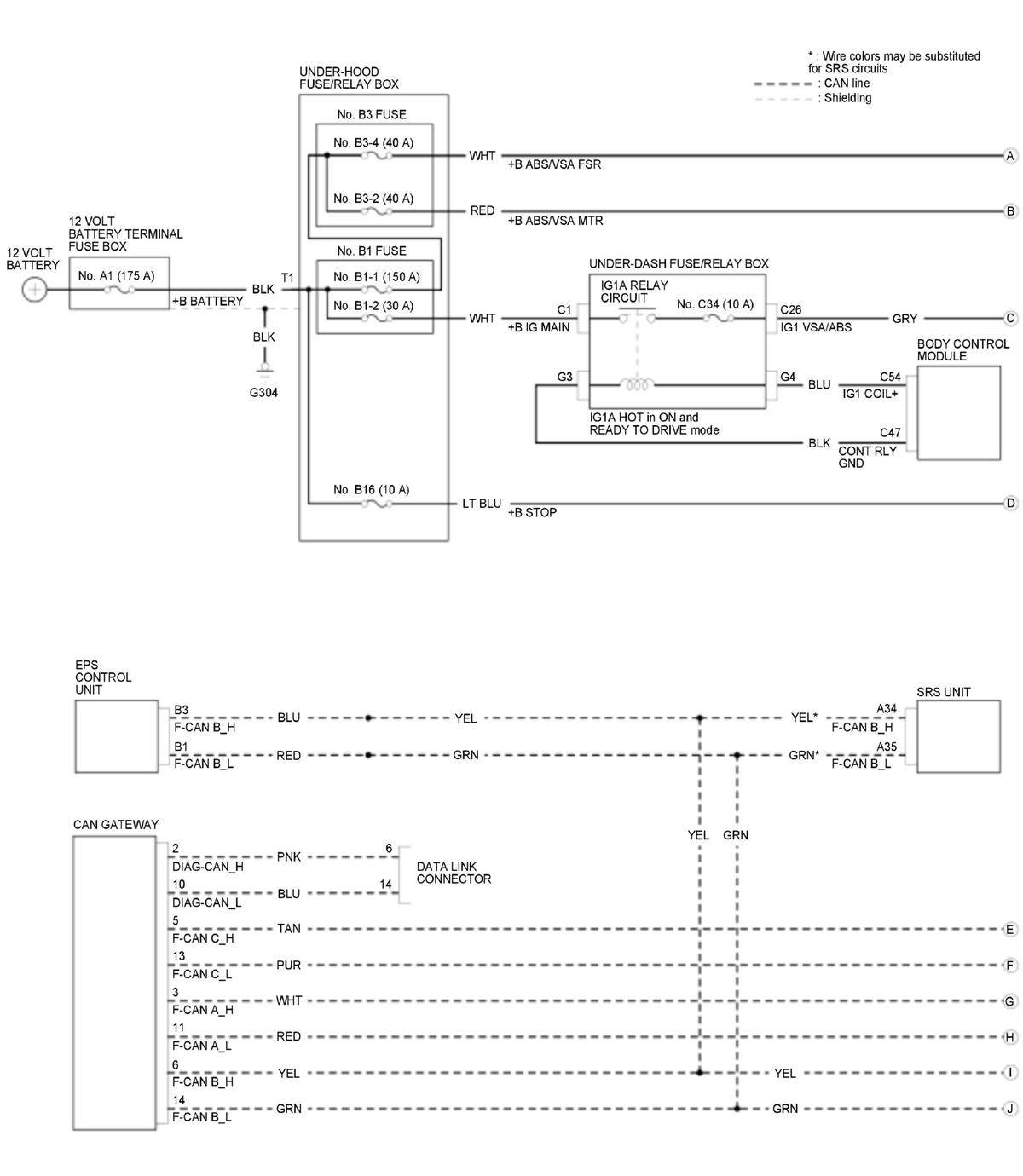

GHH388616Courtesy of HONDA, U.S.A., INC.

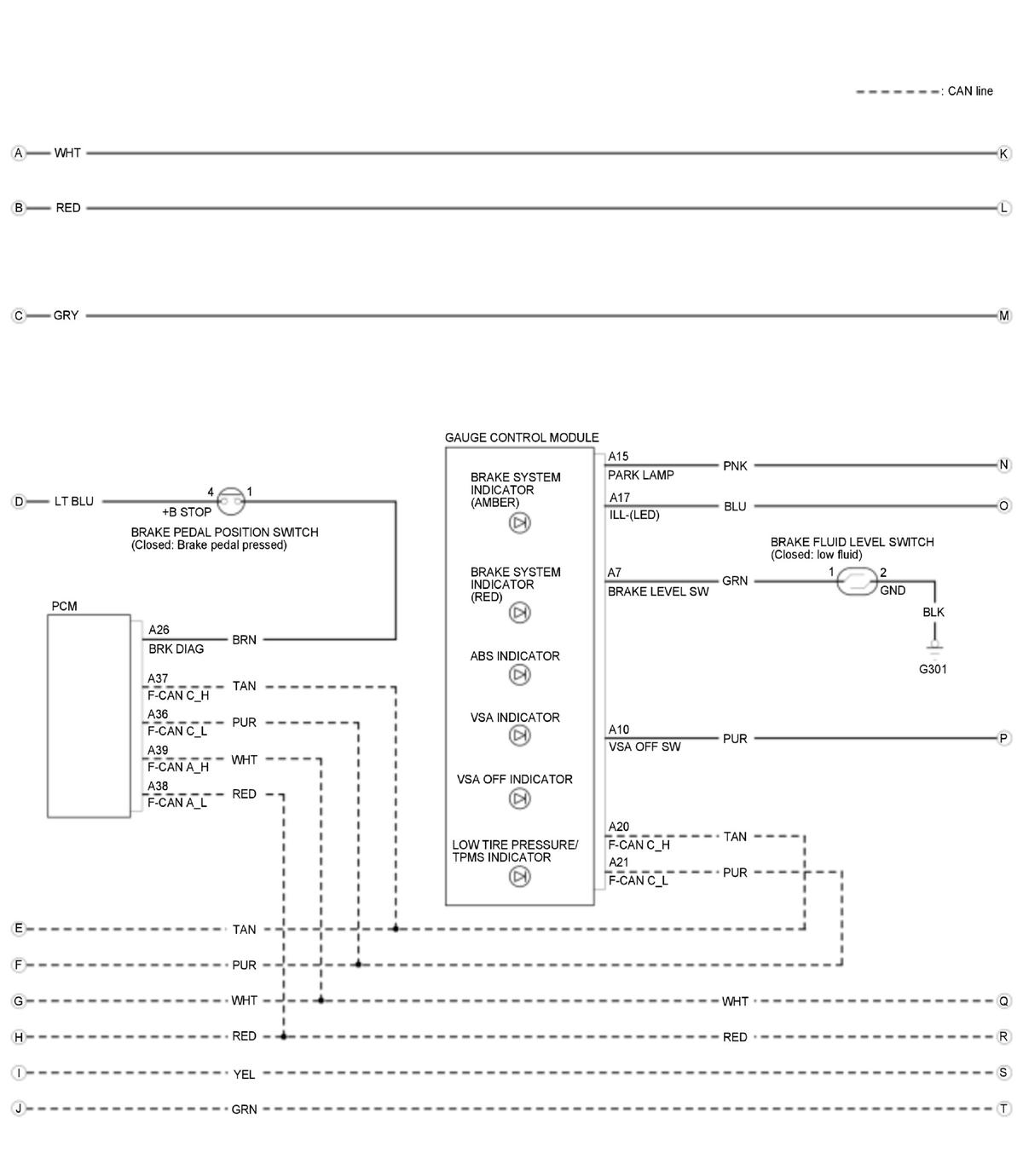

GHH388617Courtesy of HONDA, U.S.A., INC.

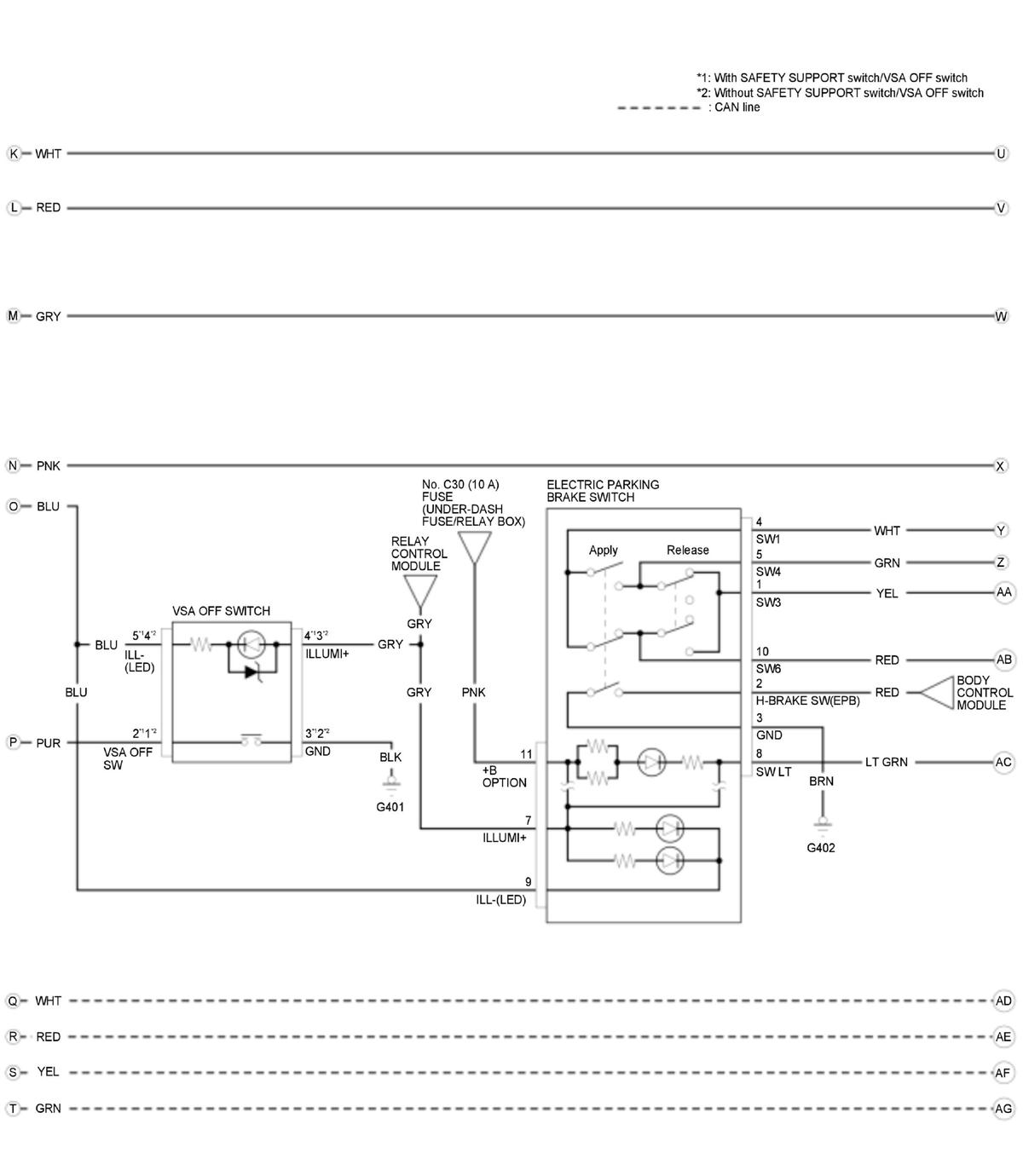

GHH388618Courtesy of HONDA, U.S.A., INC.

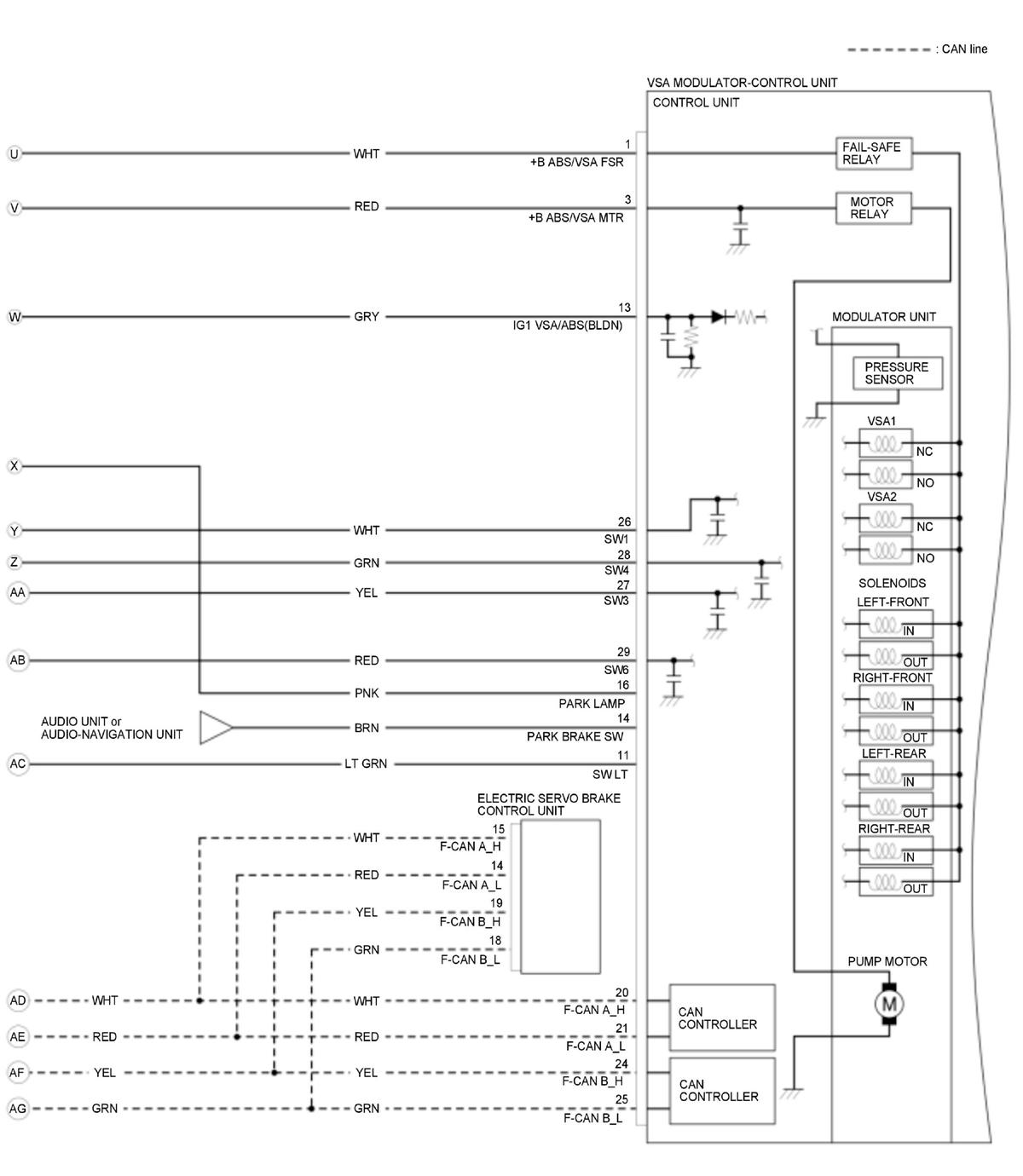

GHH388619Courtesy of HONDA, U.S.A., INC.

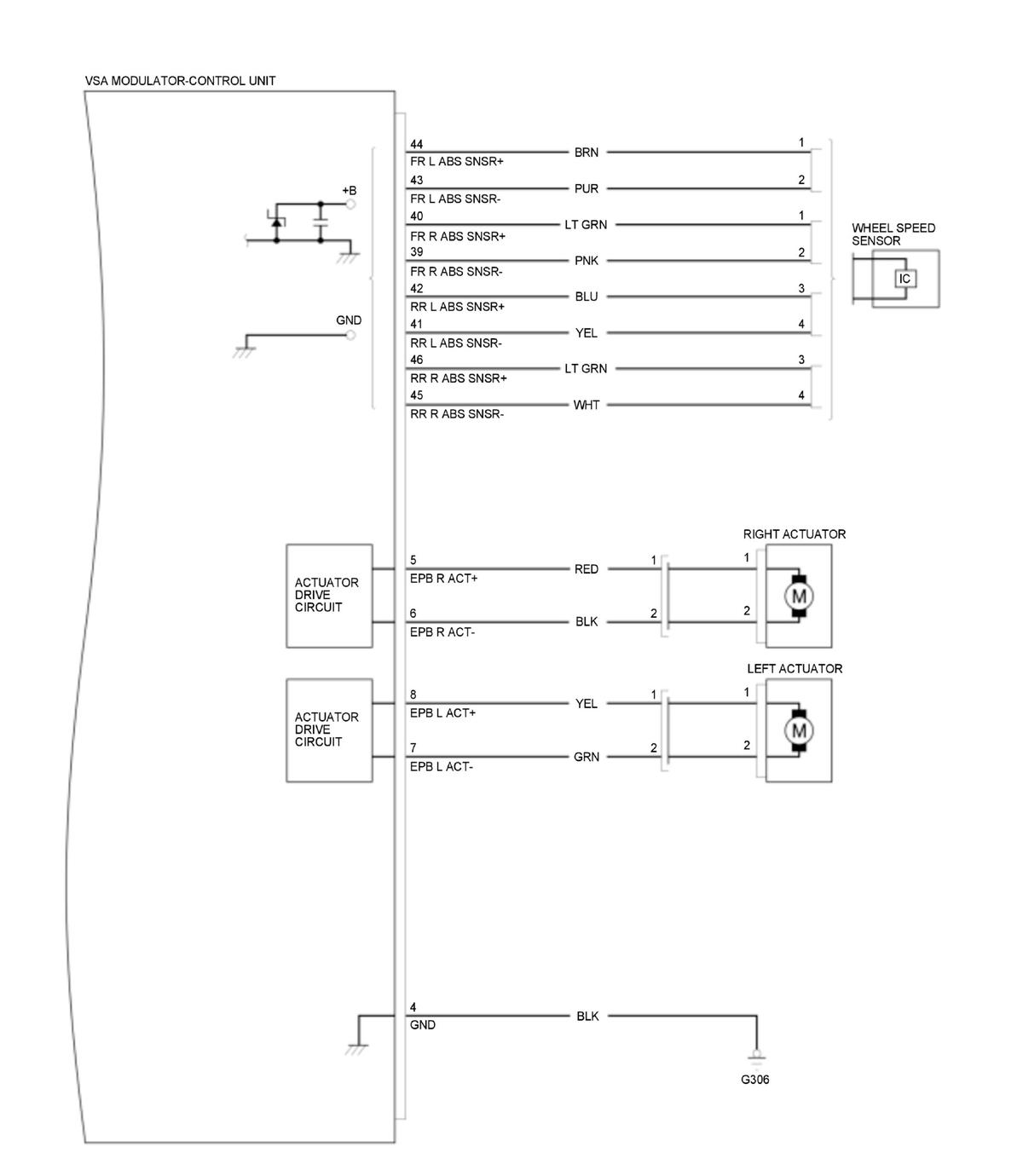

GHH388620Courtesy of HONDA, U.S.A., INC.
