VSA - EBD Control: Overview

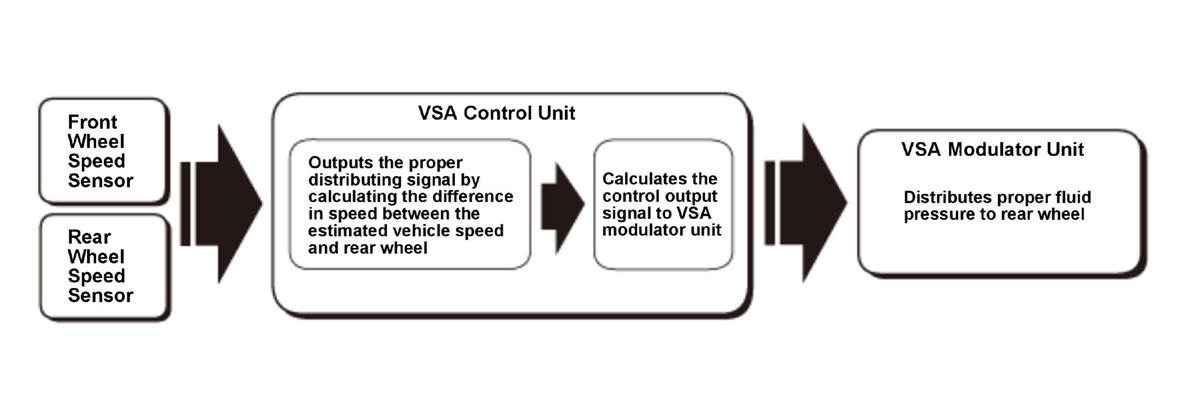

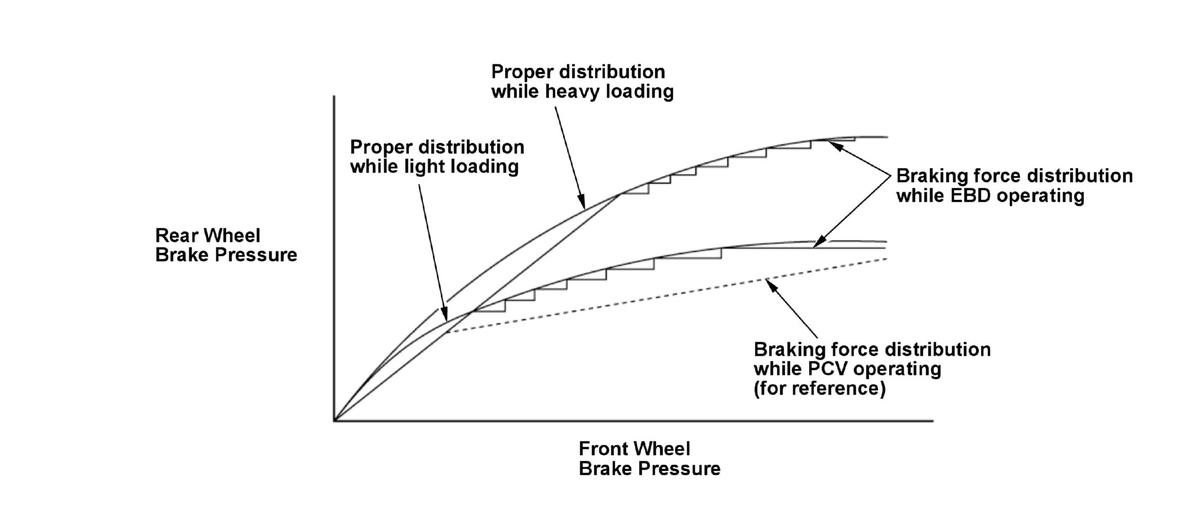

The EBD system actively controls the distribution of the front and rear braking forces to correspond with changes in the load condition and displacement of the load due to deceleration.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
