DTC P0404

DTC P0404  : EGR Valve Circuit Range/Performance Problem

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Start the engine.

   -4. Hold the engine speed at 3, 000 rpm without load (in P or N) until the radiator fan comes on, then let it idle.

   -5. Do the EGR TEST with the HDS.

   EGR TEST

   Is the result OK?

   YES

   Intermittent failure, the system is OK at this time. Clean any carbon build-up on the EGR valve with throttle plate cleaner. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

   NO

   The failure is duplicated. Go to step 2.

2. EGR valve position sensor internal circuit check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   EGR valve 5P connector

   -3. At the EGR valve side, measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EGR valve 5P connector: disconnected

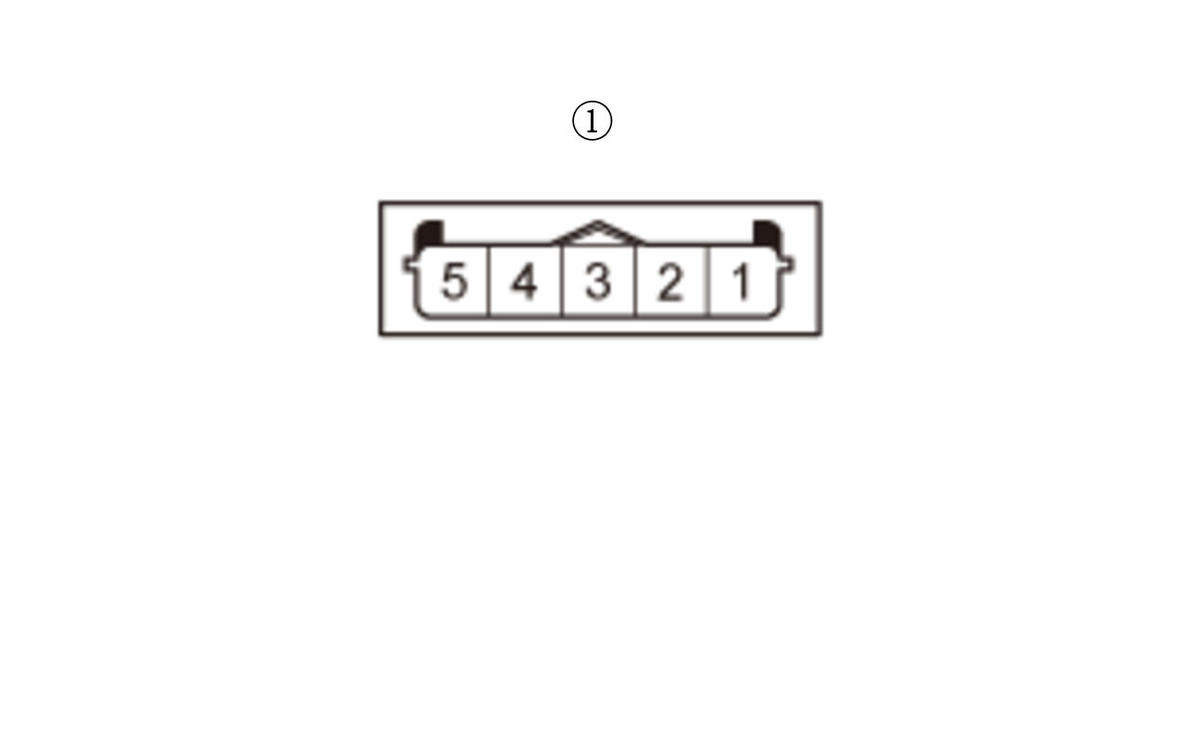

   Test point 1	EGR valve 5P connector (male terminals) No. 3 (valve side):
   Test point 2	EGR valve 5P connector (male terminals) No. 4 (valve side):

   Courtesy of HONDA, U.S.A., INC.

   Is there 100 kΩ or more?

   YES

   Replace the EGR valve .

   NO

   Go to step 3.

3. EGR valve internal circuit check

   -1. At the EGR valve side, measure the resistance between test point 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EGR valve 5P connector: disconnected
   Test point 1	EGR valve 5P connector (male terminals) No. 2 (valve side):

   Test point 2

   EGR valve 5P connector (male terminals) No. 4 (valve side):

   Courtesy of HONDA, U.S.A., INC.

   Is there 100 kΩ or more?

   YES

   Replace the EGR valve .

   NO

   Go to step 4.

4. Open wire check (E-EGR PG/PG line)

   -1. Check for continuity between test point 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EGR valve 5P connector: disconnected

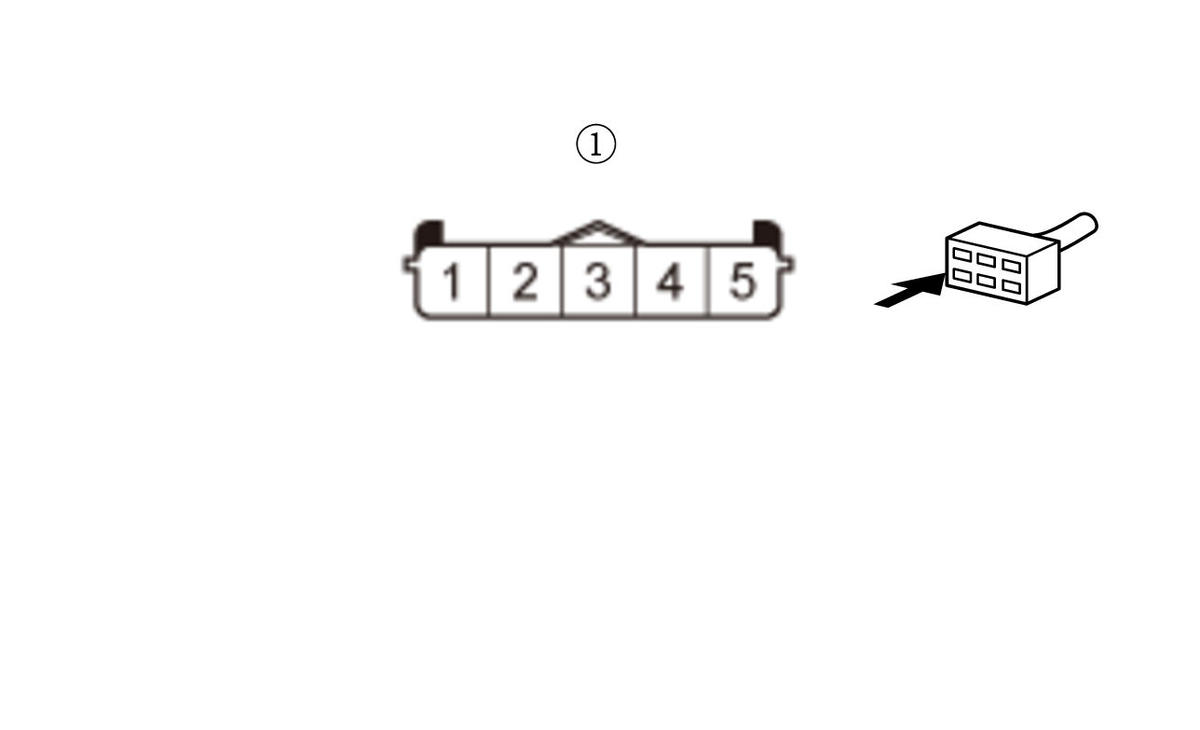

   Test point 1	EGR valve 5P connector (female terminals) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The E-EGR PG/PG wire is OK. Go to step 5.

   NO

   Repair an open in the E-EGR PG/PG wire between the EGR valve and G101.

5. Shorted wire check (E EGR line)

   -1. Jump the SCS line with the HDS, and wait more than 1 minute.

   -2. Disconnect the following connector.

   PCM connector E (80P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EGR valve 5P connector: disconnected
   	PCM connector E (80P): disconnected
   Test point 1	PCM connector E (80P) No. 28
   Test point 2	Body ground

   Is there continuity?

   YES

   Repair a short in the E EGR wire between the PCM (E28) and the EGR valve.

   NO

   The E EGR wire is not shorted. Go to step 6.

6. Open wire check (E EGR line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	EGR valve 5P connector: disconnected
   	PCM connector E (80P): disconnected
   Test point 1	EGR valve 5P connector (female terminals) No. 5:
   Test point 2	PCM connector E (80P) No. 28

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The E EGR wire is OK. Go to step 7.

   NO

   Repair an open in the E EGR wire between the PCM (E28) and the EGR valve.

7. EGR port and passage cleaning

   -1. Remove the EGR valve .

   -2. Clean the intake manifold EGR port with throttle plate cleaner. Also, clean the passage inside the EGR valve with throttle plate cleaner.

   -3. Install the EGR valve .

   -4. Reconnect all connectors.

   -5. Turn the vehicle to the ON mode.

   -6. Reset the PCM with the HDS .

   Reset PCM

   -7. Do the PCM idle learn procedure .

   -8. Do the EGR TEST with the HDS.

   EGR TEST

   Is the result OK?

   YES

   The failure is not duplicated.

   NO

   Go to step 8.

8. EGR valve check

   -1. Substitute a known-good EGR valve .

   -2. Reconnect all connectors.

   -3. Turn the vehicle to the ON mode.

   -4. Reset the PCM with the HDS .

   Reset PCM

   -5. Do the PCM idle learn procedure .

   -6. Do the EGR TEST with the HDS.

   EGR TEST

   Is the result OK?

   YES

   Replace the original EGR valve .

   NO

   The EGR valve is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM , then recheck. If DTC P0404 goes away and the PCM was substituted, replace the original PCM .
