Driver's Power Window Motor Test: Test

Motor Test

1. Driver's Door Panel - Remove
2. Driver's Power Window Motor - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

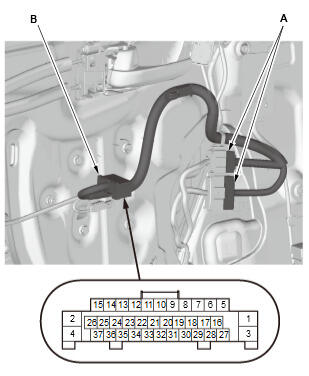

   1. Connect the connectors (A), then install the door panel as needed. 2. Test the motor in each direction by connecting 12 volt battery power and ground to the connector (B) according to the table. When the motor stops running, disconnect 12 volt battery power immediately. If the motor does not run or fails to run smoothly, remove the driver's door regulator , then go to step 3. If the motor runs smoothly, go to the Hall IC Unit (Pulser) Test.

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

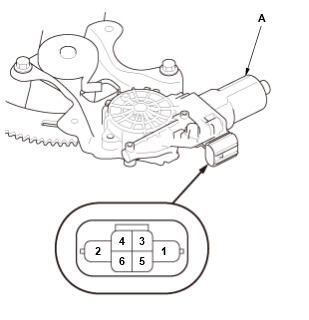

   3. Test the driver's power window motor (A) by connecting 12 volt battery power and ground according to the table. When the motor stops running, disconnect 12 volt battery power immediately. 4. If the motor does not run or fails to run smoothly, the driver's power window motor is faulty; replace the driver's power window motor If the motor runs smoothly, troubleshoot the driver's power window motor circuit.

   Hall IC Unit (Pulser) Test

3. Driver's Door Panel Barrier A - Remove
4. Hall IC Unit (Pulser) - Test

   Courtesy of HONDA, U.S.A., INC.

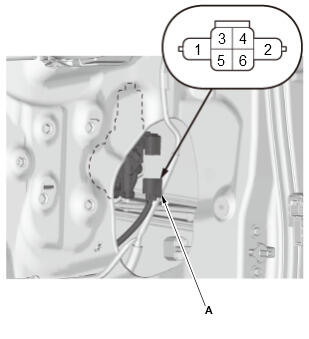

   1. Disconnect the connector (A). 2. Check for continuity between driver's power window motor connector terminal No. 4 and body ground. There should be continuity. If there is continuity, connect the motor connector and install the door panel barrier A , then go to step 4. If there is no continuity, check for an open or high resistance in the BLK wire or poor ground (G401).

   Courtesy of HONDA, U.S.A., INC.

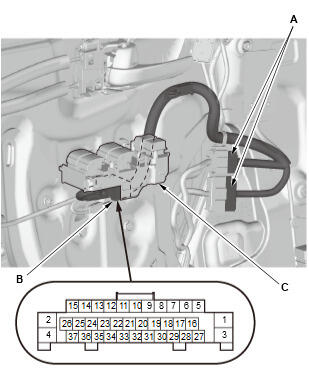

   3. Connect the connectors (A), then install the door panel as needed. 4. Remove the power window master switch 5. Connect the connector (B). 6. Turn the vehicle to the ON mode. 7. Do the power window master switch input test terminals No. 13, No. 17, and No. 19  . MTR SVCC circuit  MTR PLSA and MTR PLSB circuits  If the voltage is as specified, replace the power window master switch (C). If the voltage is not specified, the Hall IC Unit (Pulser) is faulty; replace the driver's power window motor . 8. Remove the door panel and disconnect the power window master switch connector.

   Power window master switch connector
   No. 17	No. 31
   No. 19	No. 31

   Power window master switch connector
   No. 13	Body ground

5. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

6. Power Window Control Unit - Reset
