VSA System Description: Overview

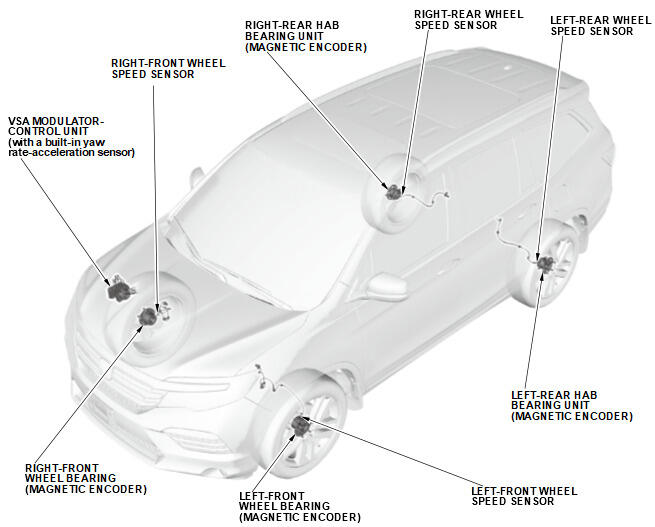

Components
The VSA system consists of the following primary components:
- VSA modulator-control unit (with a built-in yaw rate-acceleration sensor)
- Wheel speed sensors
- Magnetic encoder

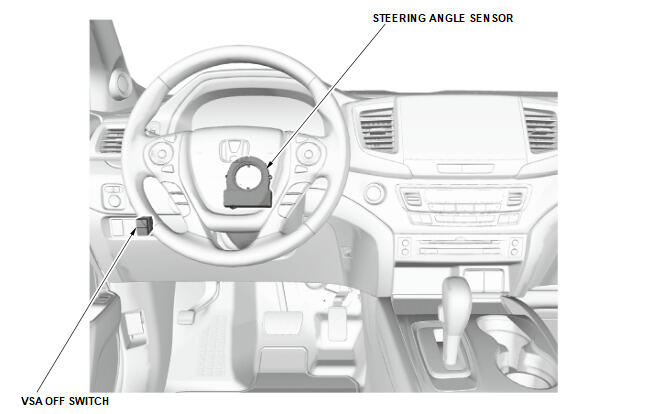

- Steering angle sensor
- VSA OFF switch
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|

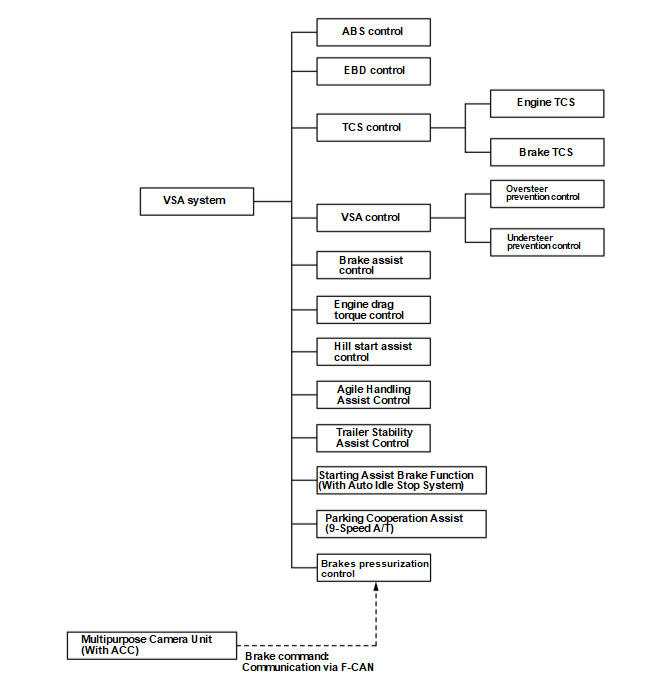

Control Unit Operation
The VSA system performs the following controls.
 Courtesy of HONDA, U.S.A., INC.
|
