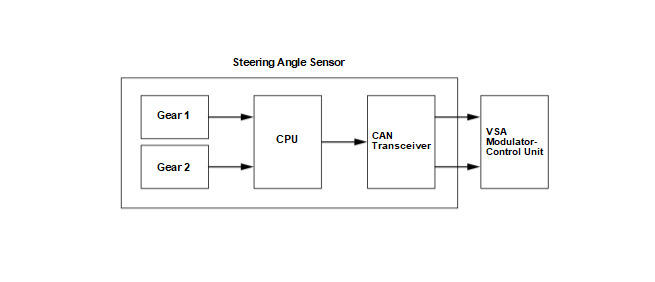

Steering Angle Sensor

The absolute angle of the steering wheel is calculated by the rotating angle phase difference between the 2 gears located in the sensor. Its value is sent to the VSA modulator-control via F-CAN communication.

Courtesy of HONDA, U.S.A., INC.
