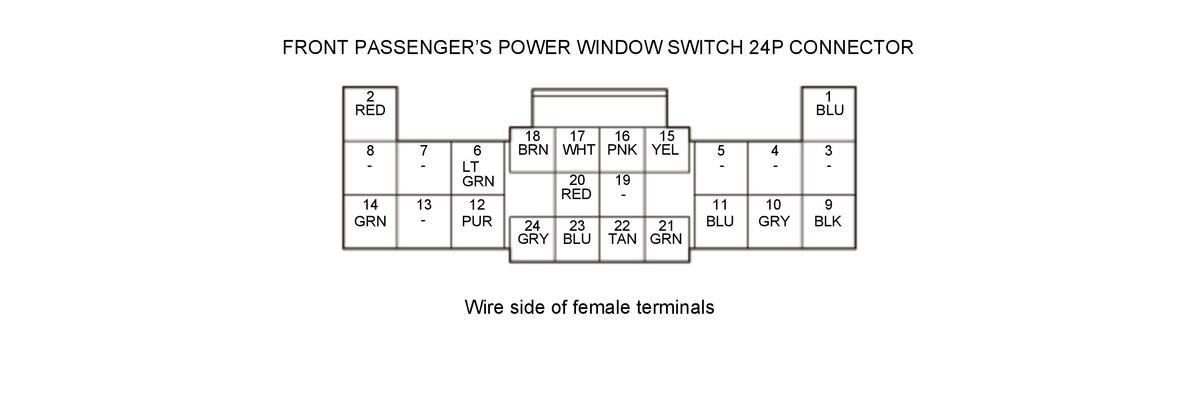

| 1 |
AS DN |
Drives front passenger's power window motor |
With front passenger's power window motor DOWN operation: about battery voltage If none of above conditions are met: less than 0.2 V |
| 2 |
AS UP |
Drives front passenger's power window motor |
With front passenger's power window motor UP operation: about battery voltage If none of above conditions are met: less than 0.2 V |
| 3 |
Not used |
- - - |
- - - |
| 4 |
Not used |
- - - |
- - - |
| 5 |
Not used |
- - - |
- - - |
| 6 |
R HEAT MIR |
Outputs R HEAT MIR signal |
With power mirror defogger ON: about battery voltage |
| 7 |
Not used |
- - - |
- - - |
| 8 |
Not used |
- - - |
- - - |
| 9 |
PGND |
Ground for front passenger's power window switch |
Less than 0.2 V at all times |
| 10 |
GND |
Ground for front passenger's power window motor |
Less than 0.2 V at all times |
| 11 |
AS SILCON UNLOCK |
Detects AS SILCON UNLOCK signal |
With front passenger's door lock knob switch LOCK: about battery voltage With front passenger's door lock knob switch UNLOCK: less than 0.2 V |
| 12 |
KOT (SUNSHADE) |
Outputs KOT (SUNSHADE) signal |
- - - |
| 13 |
Not used |
- - - |
- - - |
| 14 |
+B AS P/W |
Power source for control unit |
About battery voltage at all times |
| 15 |
RETRA AS CLOSE |
Drives retract actuator |
With vehicle in ON mode and power mirror retract operation: about battery voltage If none of above conditions are met: less than 0.2 V |
| 16 |
RETRA AS OPEN |
Drives retract actuator |
With vehicle in ON mode and power mirror extend operation: about battery voltage If none of above conditions are met: less than 0.2 V |
| 17 |
R/C MIRR MTR (R-COM) |
Detects R/C MIRR MTR (R-COM) signal |
When vehicle in ON mode: about 0 V or 5 V (depending on power mirror switch position) |
| 18 |
R/C MIRR MTR (R-UD) |
Detects R/C MIRR MTR (R-UD) signal |
When vehicle in ON mode: about 0 V or 5 V (depending on power mirror switch position) |
| 19 |
Not used |
- - - |
- - - |
| 20 |
R/C MIRR MTR (R-LR) |
Detects R/C MIRR MTR (R-LR) signal |
When vehicle in ON mode: about 0 V or 5 V (depending on power mirror switch position) |
| 21 |
AS SVCC |
Outputs AS SVCC signal |
With front passenger's power window control unit is wakeup mode: about battery voltage With front passenger's power window control unit is sleep mode: less than 0.2 V |
| 22 |
AS FLSB |
AS FLSB signal |
- - - |
| 23 |
AS FLSA |
AS FLSA signal |
- - - |
| 24 |
LIN (WINDOW) |
Communication line |
- - - |
