D4 Switch Test (6-Speed A/T): Test

SRS components are located in this area. Review the SRS component locations - Refer to: SRS Component Location Index (2016), or SRS Component Location Index (2017 2018 2019 2020 2021) and The Precautions And Procedures before doing repair or service.

Center Console - Remove - Refer to: 2nd Row Center Console Removal and Installation, or Center Console Removal and Installation

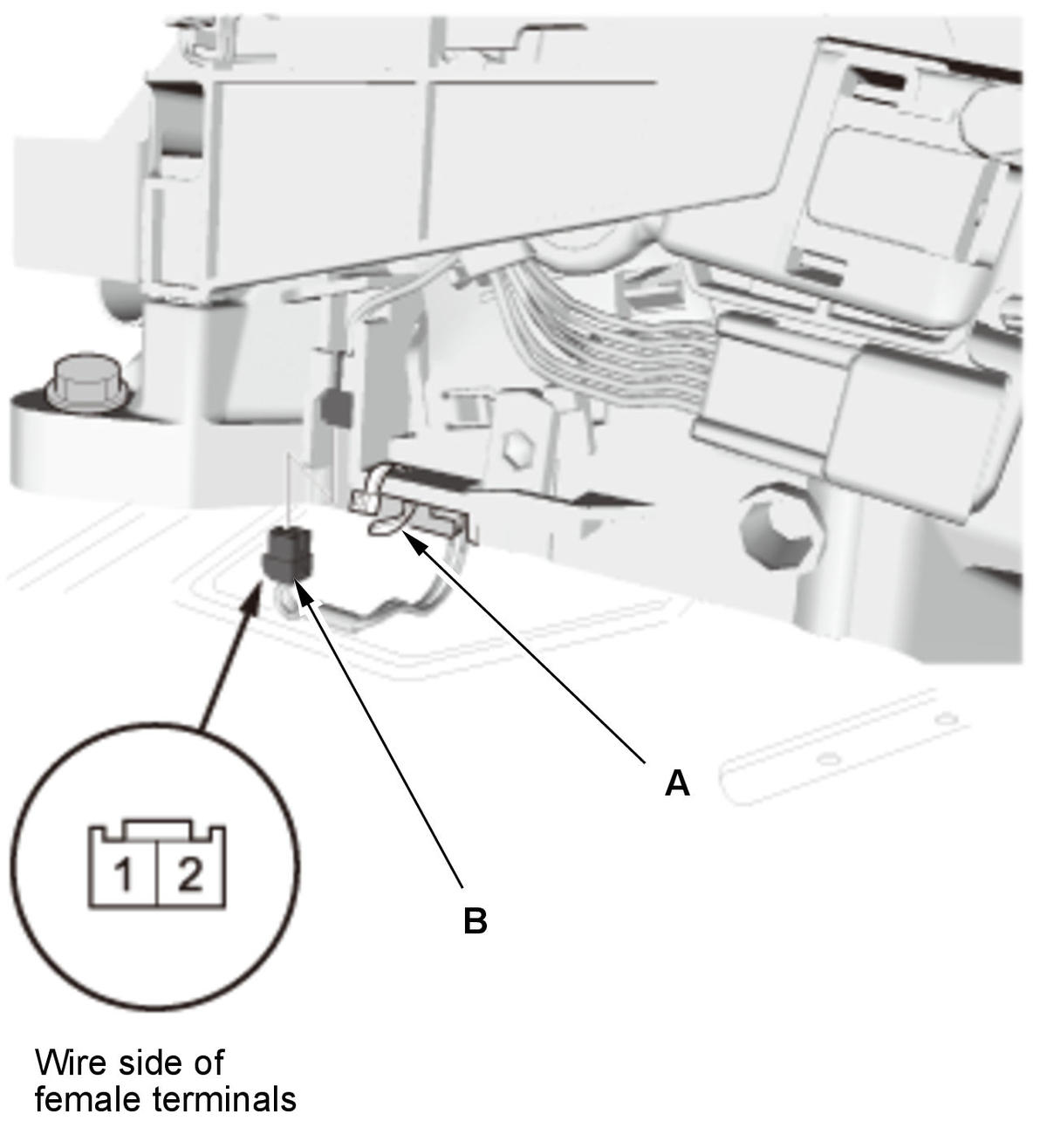

D4 Switch - Continuity Test

Courtesy of HONDA, U.S.A., INC.

1. Remove the harness wire tie (A).

2. Disconnect the connector (B).

3. Check for continuity between D4 switch connector terminals No. 1 and No. 2. There should be continuity while pressing the D4 button and no continuity when the D4 button is released.

If the D4 switch test is OK, the test is finished.
If the D4 switch test fails, replace the D4 switch .

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
