Vehicle/Object Detection Process

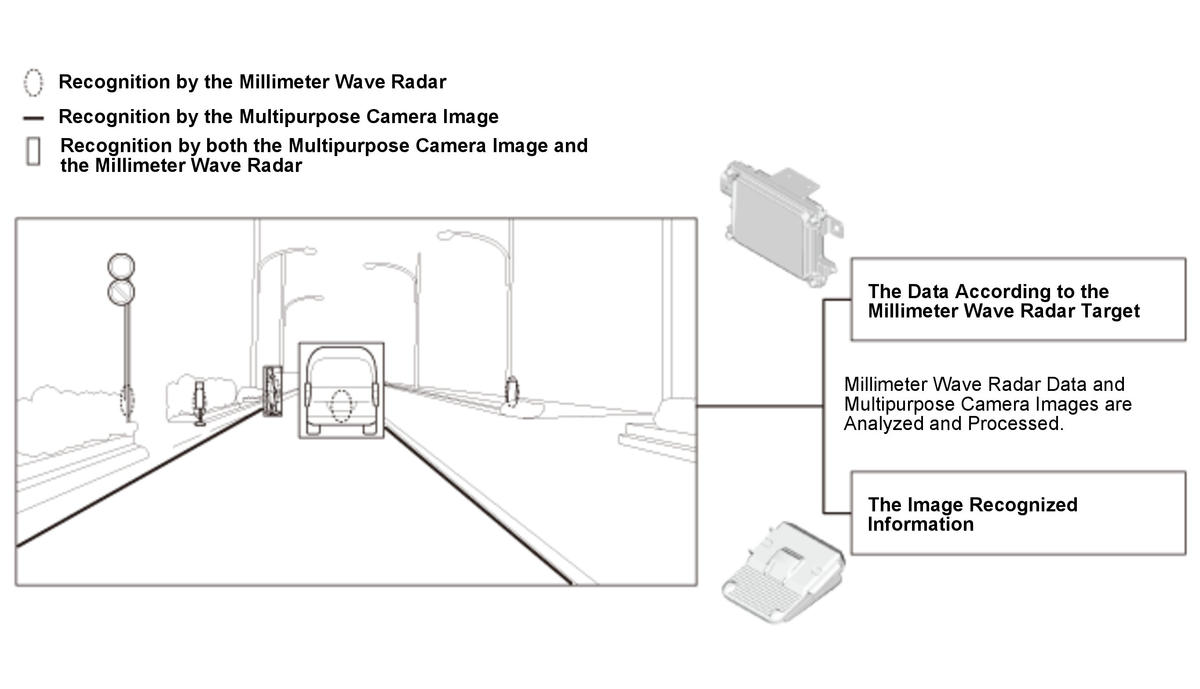

The multipurpose camera unit determines if there is any leading vehicle and/or detected objects that are moving based on the outlines of the objects, relative position and speed of the objects. In order to distinguish between leading vehicles and pedestrians, the system uses the recognition result received from both the millimeter wave radar and the multipurpose camera as follows.
