Park Pin Switch: Test

  1. Center Console - Remove - Go to: Center Console - Removal and Installation, .
  2. Park Pin Switch - Test
    GHH306391GHH306392Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH306391GHH306392Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

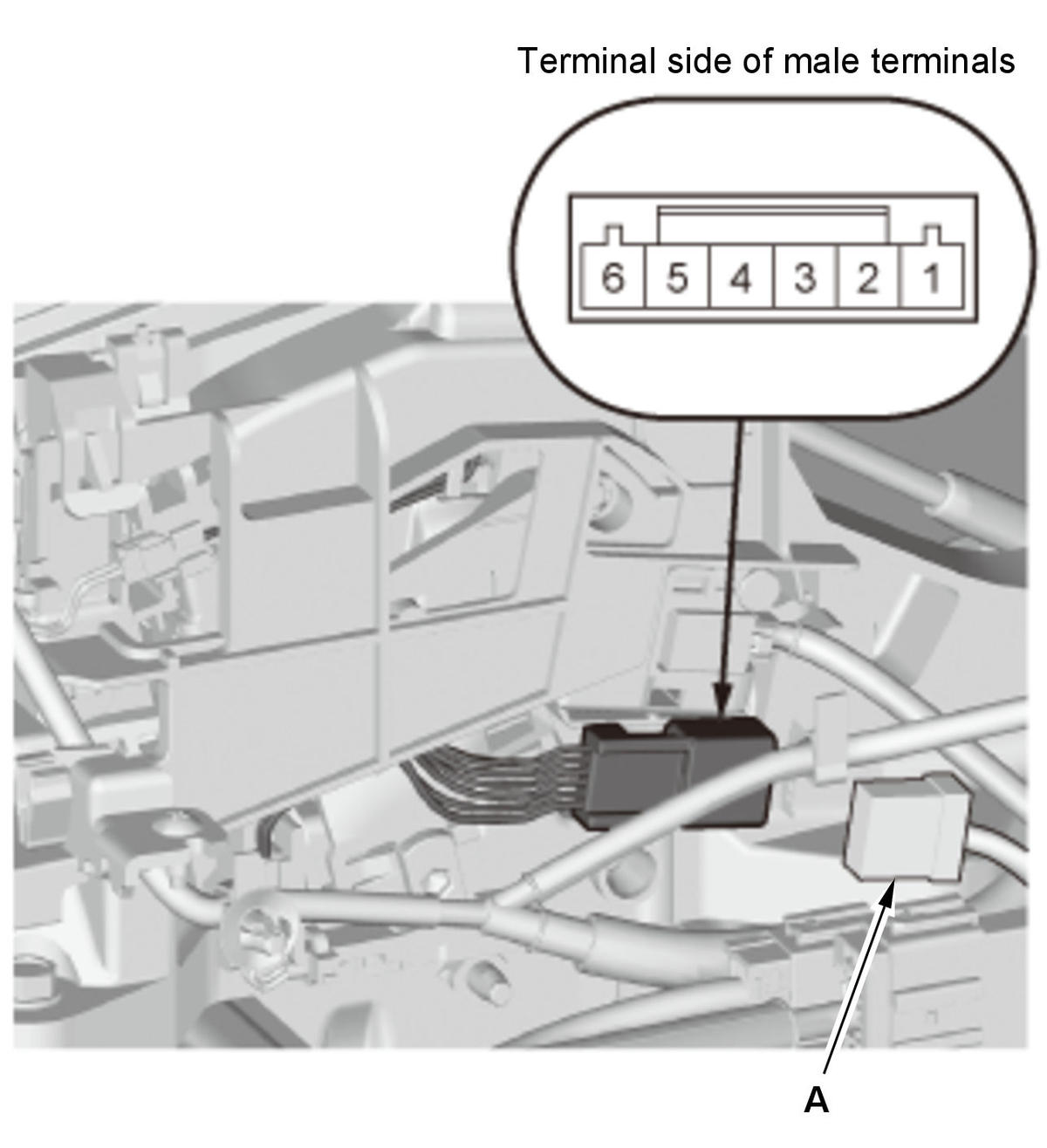

    		 1. Disconnect the connector (A).

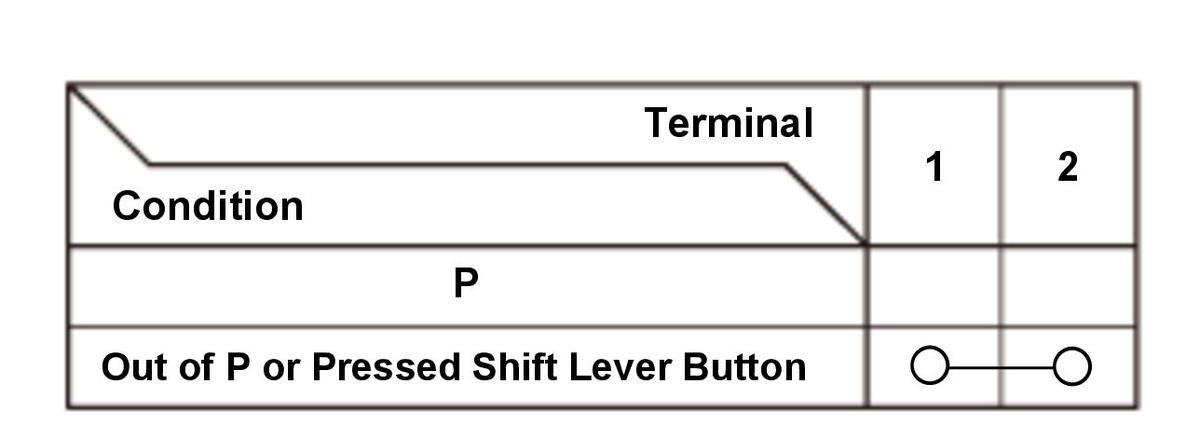

    2. Check for continuity between the terminals in each shift lever condition according to the table.

    3. If the continuity is not as specified, check the Shift Cable Adjustment

    If the cable adjustment is OK, the park pin switch is faulty; replace the shift lock unit Shift Lever - Disassembly and Reassembly - Step 8 .
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
