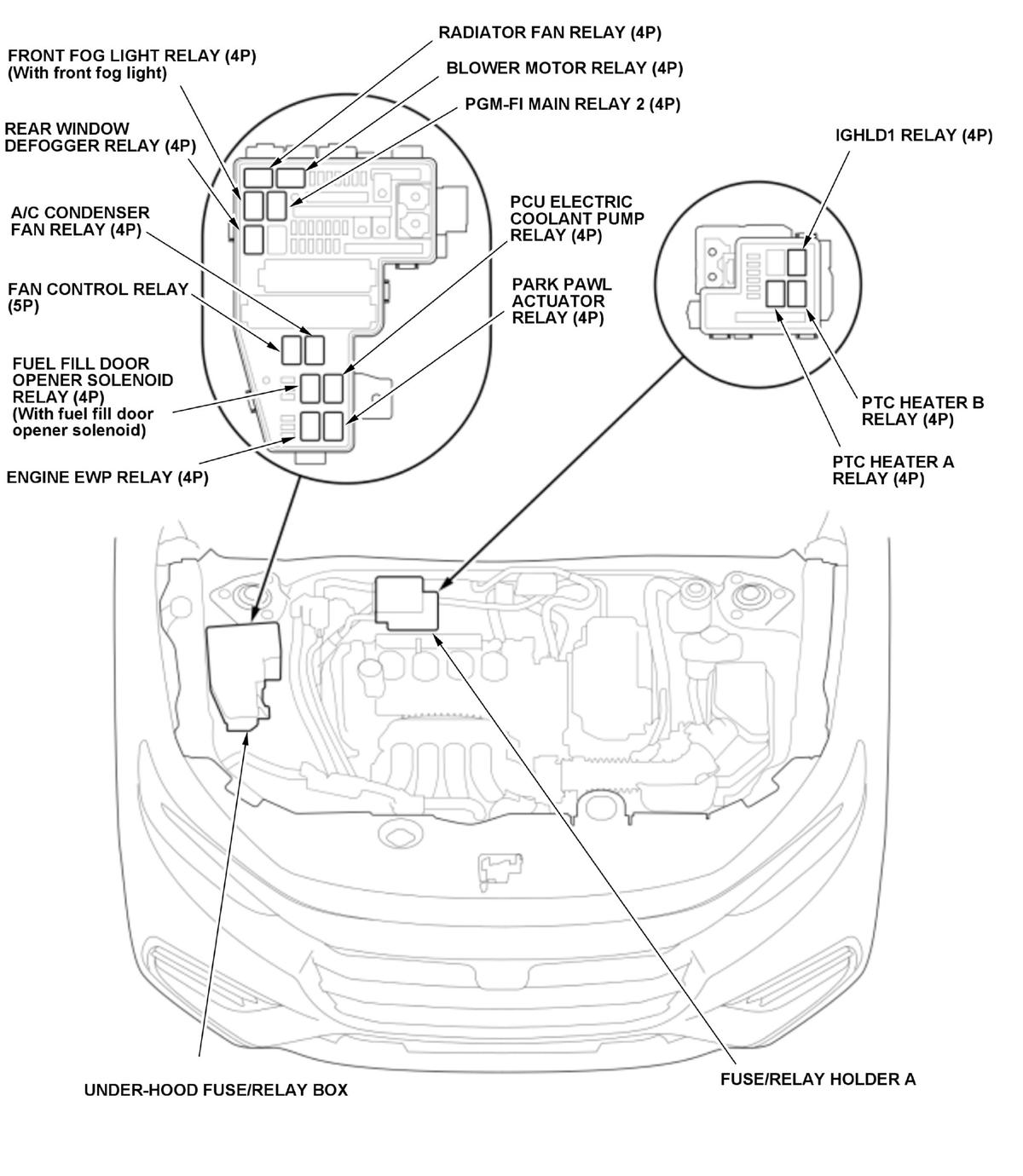

Engine Compartment
Engine Compartment Legend
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
