Exploded View
For replacement of components listed below, see Repair Procedure

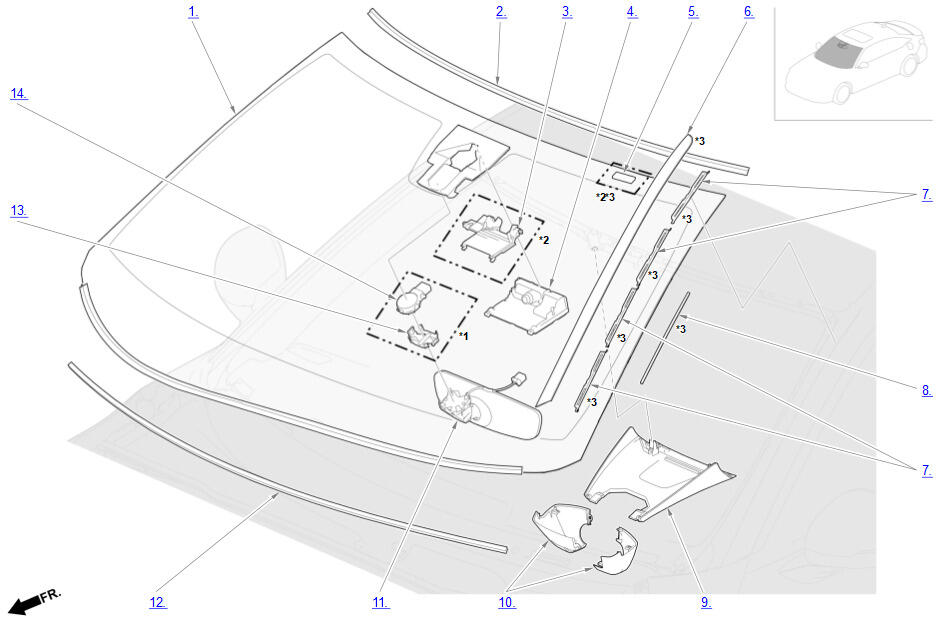

With Monocular Camera Driver Support System
*1: With automatic wiper
*2: For some models
*3: Part(s) are shown for one side only as the procedure is the same for both sides.

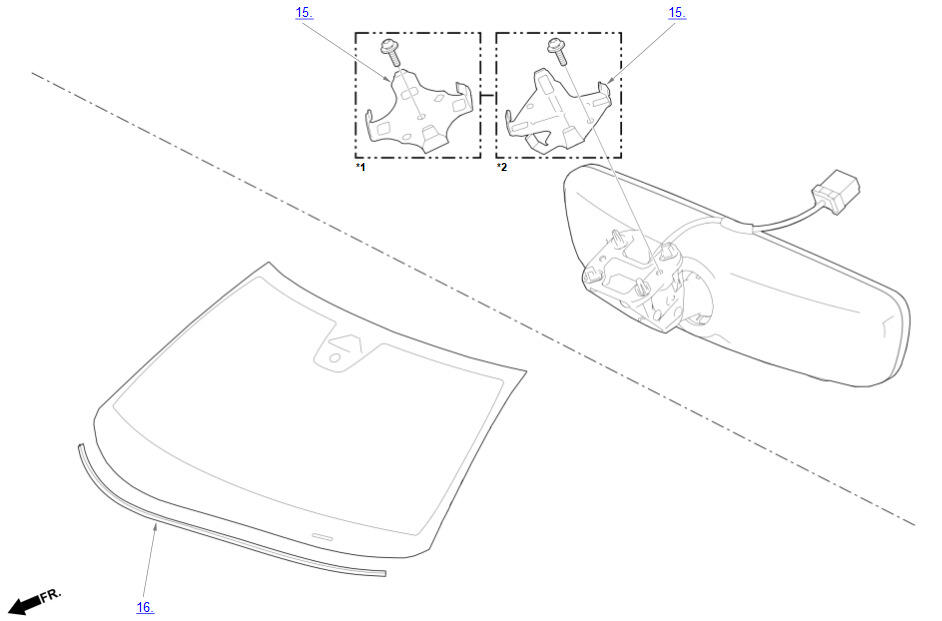

With Monocular Camera Driver Support System
*1: Type A
*2: Type B

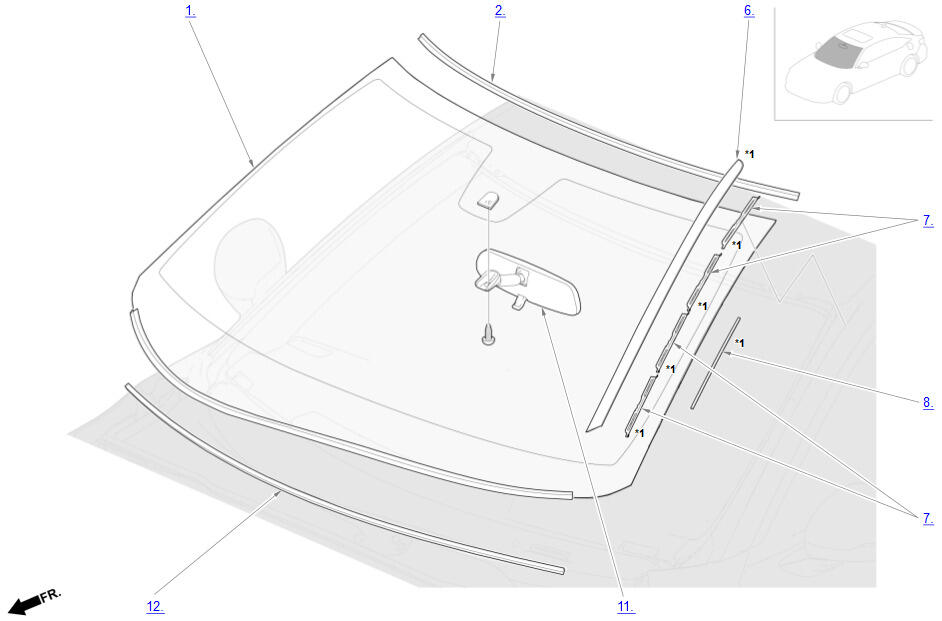

Without Monocular Camera Driver Support System
*1: Part(s) are shown for one side only as the procedure is the same for both sides.

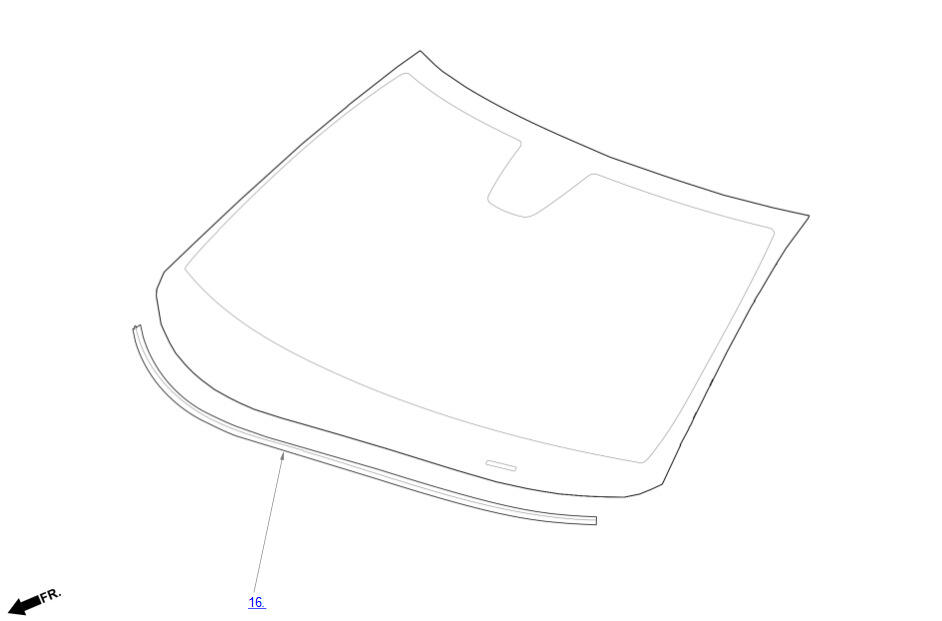

Without Monocular Camera Driver Support System
Windshield Area Components
| Component Name | Callout |
|---|---|
| Windshield | 1 |
| Windshield Upper Molding | 2 |
| Camera Heater and Camera Heater Bracket | 3 |
| Multipurpose Camera Unit | 4 |
| Upper Clip | 5 |
| Windshield Side Trim | 6 |
| Retainer | 7 |
| Rubber Dam | 8 |
| Camera Cover | 9 |
| Camera Cover Lid | 10 |
| Rearview Mirror | 11 |
| Dashboard Seal | 12 |
| Automatic Lighting/Rain Sensor Clip | 13 |
| Automatic Lighting/Rain Sensor | 14 |
| Mount Spring | 15 |
| Windshield Lower Molding | 16 |
