Keyless/Power Door Locks/Security System Component Location Index

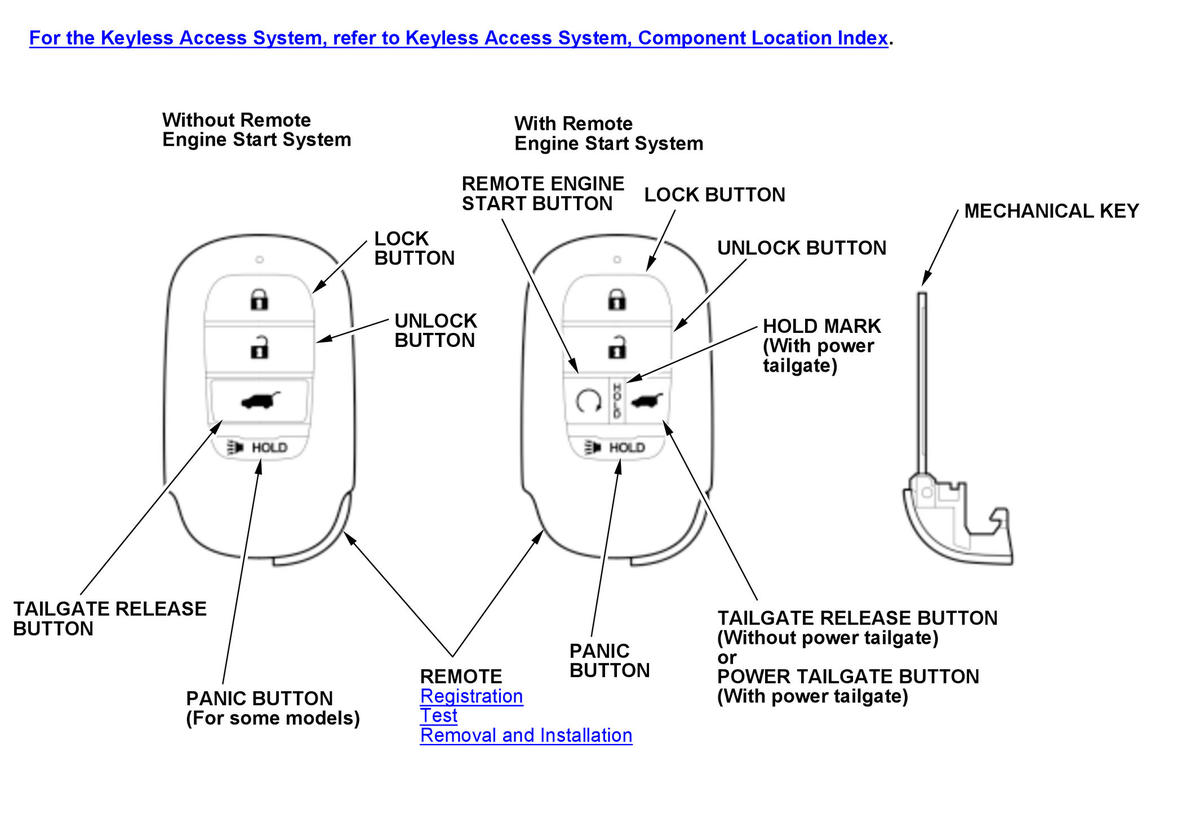

GHH582485

Courtesy of HONDA, U.S.A., INC.

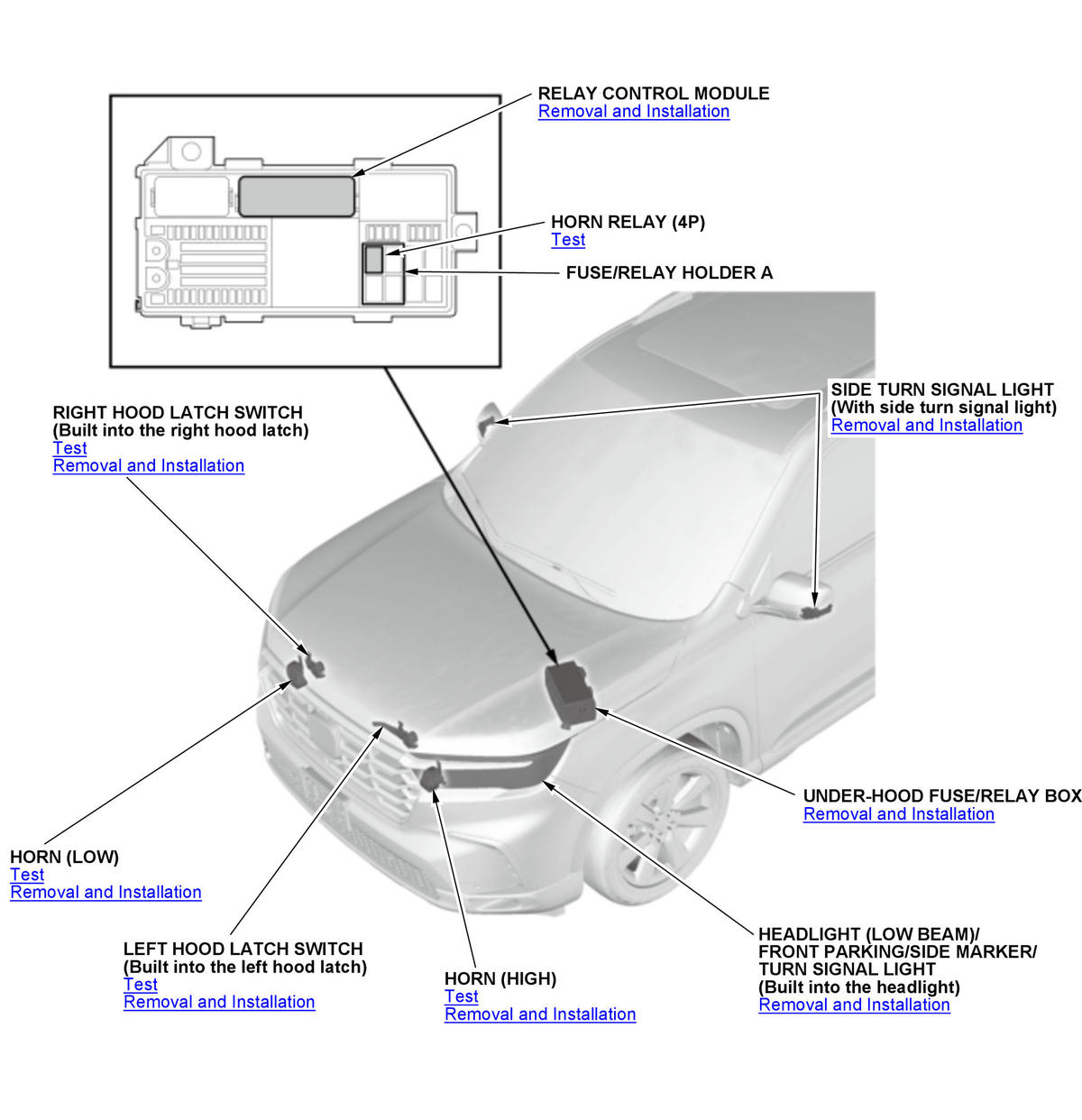

GHH582486

Courtesy of HONDA, U.S.A., INC.

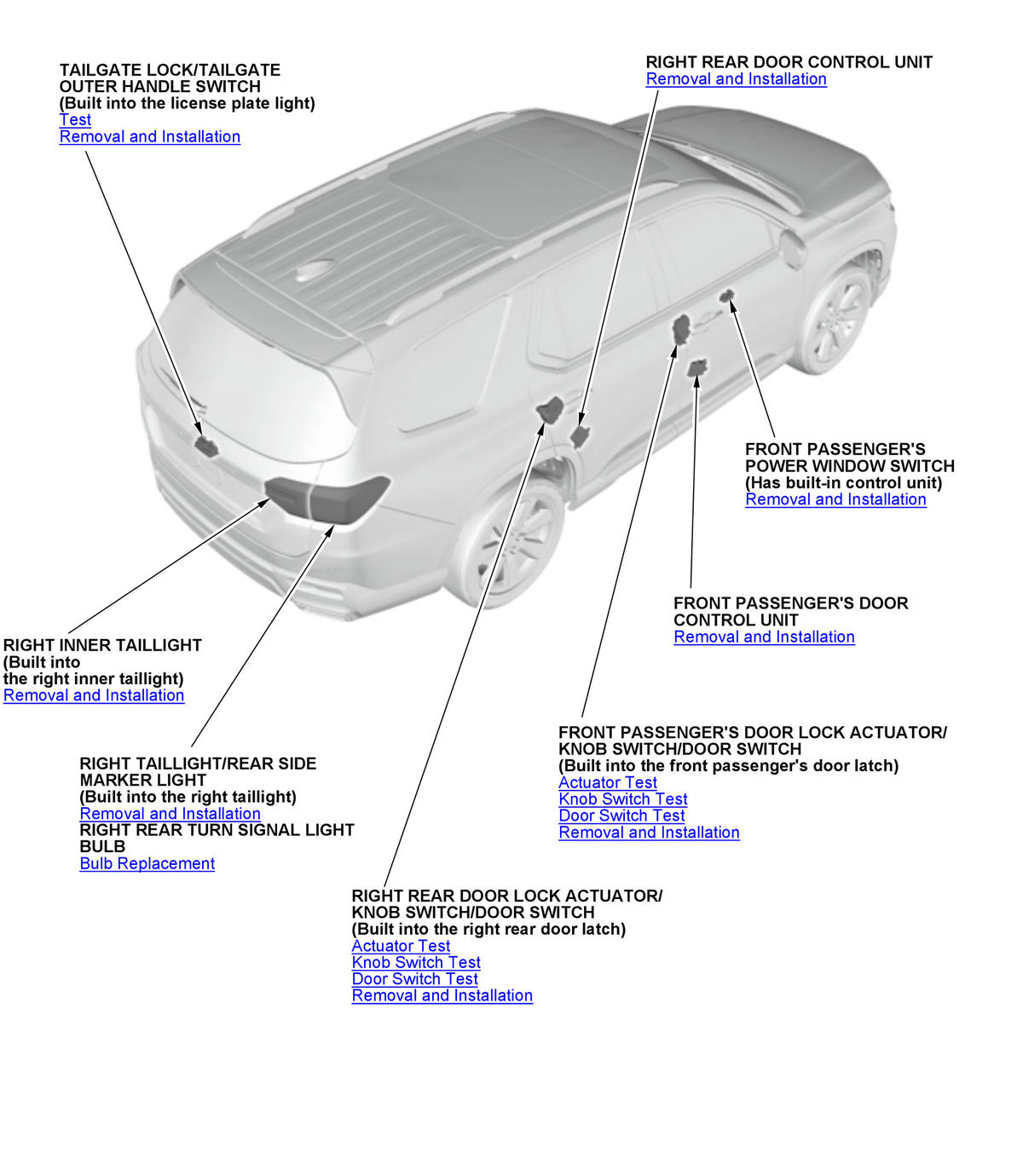

GHH582487

Courtesy of HONDA, U.S.A., INC.

GHH582488

Courtesy of HONDA, U.S.A., INC.

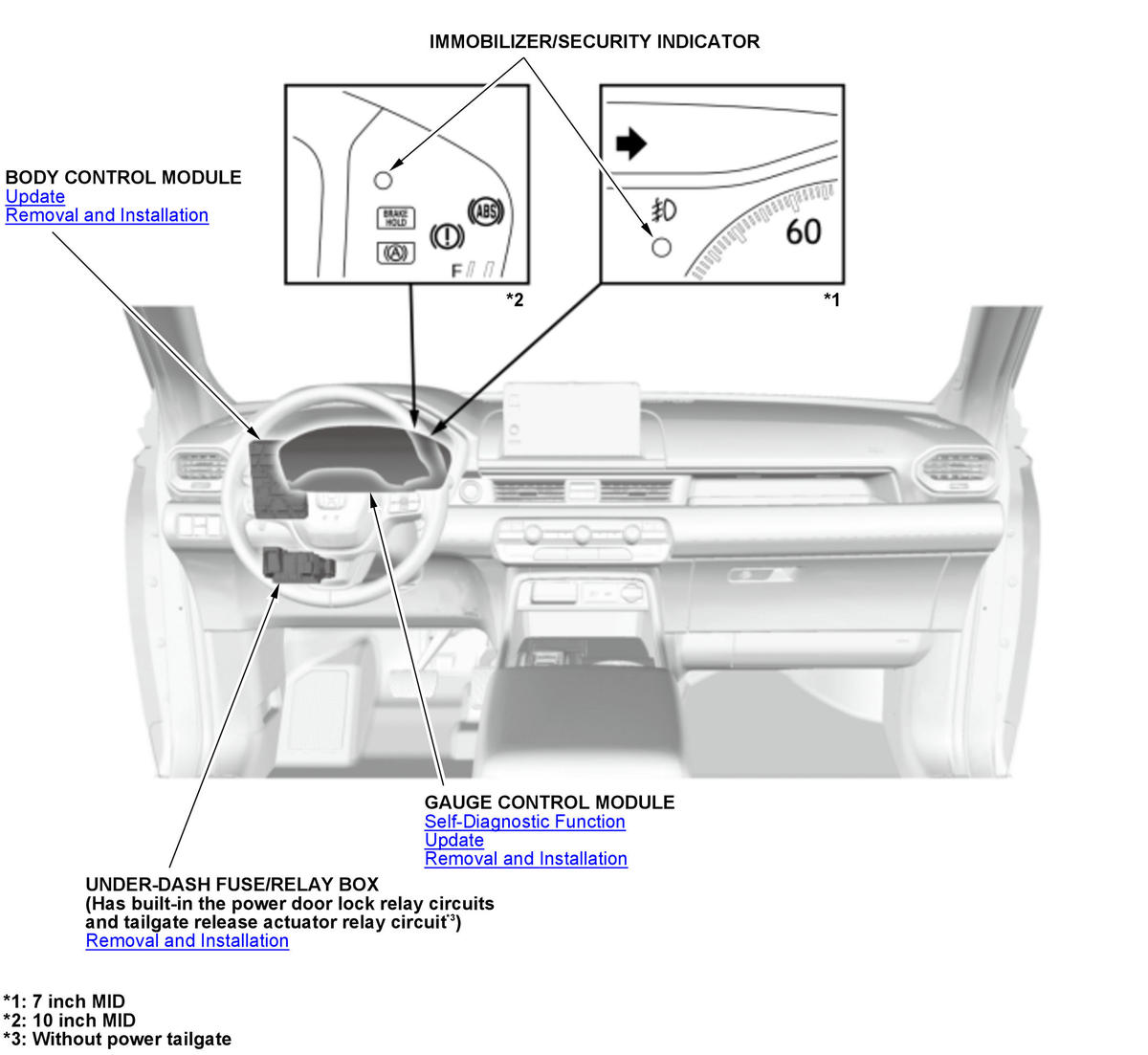

GHH582489

Courtesy of HONDA, U.S.A., INC.
