DTC B1663-13: Inspection

EXT_M+, EXT_M- Open Wire Inspection

Test Procedure

• Preparation
  • Rear interior LF antenna connector (2P): disconnected
  • Body control module connector C (66P): disconnected
• Procedure
  • Perform the inspection according to the following chart.

			(Disconnected) Rear interior LF antenna connector (2P) female terminals	(Disconnected) Body control module connector C (66P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	EXT_M+ open wire inspection	OFF			There is less than 1 Ohms
	EXT_M- open wire inspection	OFF			There is less than 1 Ohms

Results

• If abnormal, there is a problem in the circuit.

EXT_M+, EXT_M- Shorted Wire Inspection

Test Procedure

• Preparation
  • Rear interior LF antenna connector (2P): disconnected
  • Body control module connector C (66P): disconnected
• Procedure
  • Perform the inspection according to the following chart.

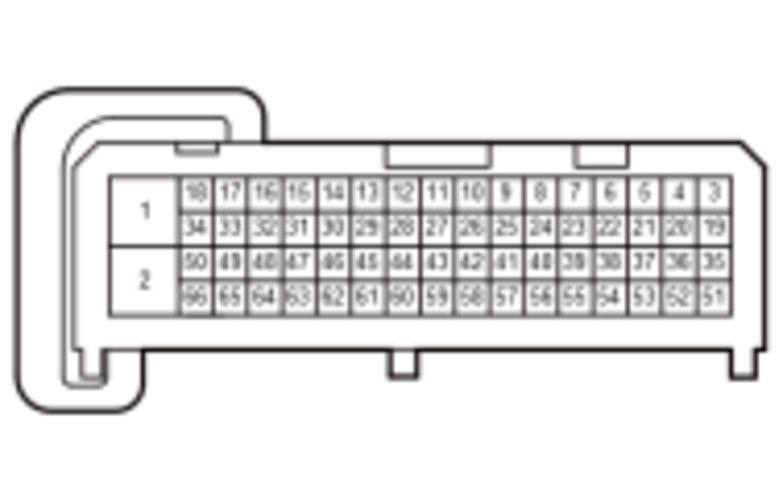

			(Disconnected) Body control module connector C (66P) female terminals

		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	EXT_M+, EXT_M- shorted wire to wire inspection	OFF		There is more than 1 MOhms

Results

• If abnormal, there is a problem in the circuit.

Body Control Module Inspection

Preconditions

NOTE:  This procedure can be done before any other inspections are completed because this test procedure includes all of the following inspection items. However, if this test fails, it will be necessary to continue with each inspection item individually to determine which item failed.

• External circuit is normal

Test Procedure

• Preparation
  • Body control module connector C (66P): connected
  • Rear interior LF antenna connector (2P)disconnected
• Procedure
  • Perform the inspection according to the following chart.

			(Disconnected) Rear interior LF antenna connector (2P) male terminals

*1: If the matter whether the vehicle mode ON or OFF (LOCK) because of the permanent power supply.

		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	Module internal circuit inspection	ON*1		Voltage

*1: If the matter whether the vehicle mode ON or OFF (LOCK) because of the permanent power supply.

Results

• If it is abnormal, there is a problem with the body control module.

Rear Interior LF Antenna Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining rear interior LF antenna is the cause.

Results

• There is a problem with the rear interior LF antenna.
