Installation Procedure

Fig 1: View Of Upper Steering Column

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

IMPORTANT: If the snap on/off feature on the trim covers was damaged during the removal procedure, you must use screws for the installation procedure. If screws were present in the trim covers before the removal procedure, you must use the screws during the installation procedure.
If there was not any damage done to the trim covers during the removal procedure and no screws were present, proceed to step 6.

Install the upper trim cover (1) with the closeout trim cover (2) and secure by using 1 TORX® head screw (3).
Tighten: Tighten the screw to 1 N.m (9 lb in).

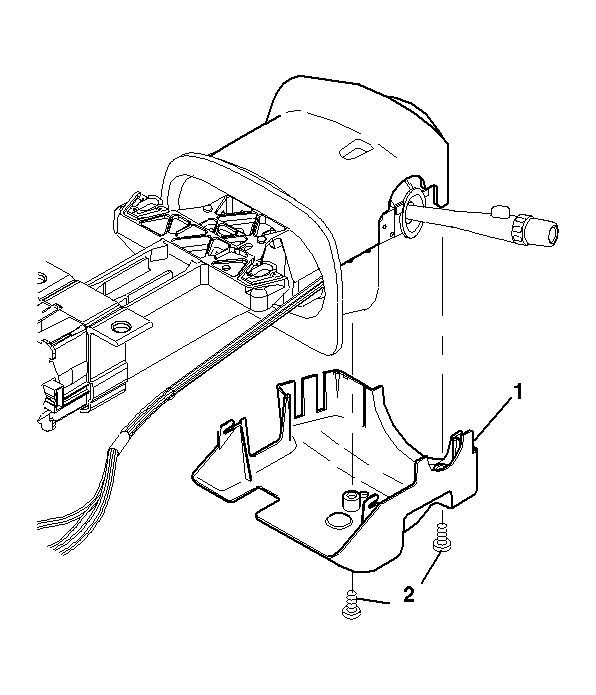

Fig 2: Lower Steering Column Cover

Courtesy of GENERAL MOTORS CORP.

Install the lower trim cover (1).
Connect the lower trim cover (1) to the closeout trim cover.
Install 2 pan head tapping screws (2).
Tighten: Tighten the screws to 3.5 N.m (31 lb in).

Fig 3: View Of Lower Trim Cover At Upper Trim Cover

Courtesy of GENERAL MOTORS CORP.

Install the upper and lower trim covers onto the steering column.
Gently snap the upper and lower trim covers together.

Fig 4: Closeout Trim Cover & Upper Trim Cover

Courtesy of GENERAL MOTORS CORP.

Install the closeout trim cover (2) onto the upper trim cover (1).
Install the tilt lever. Refer to Tilt Lever Replacement .
Install the steering wheel. Refer to Steering Wheel Replacement .
Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 .
