Instrument Panel Relay Block

NOTE: Instrument panel relay block is located at lower left corner of instrument panel. See Fig 1 .

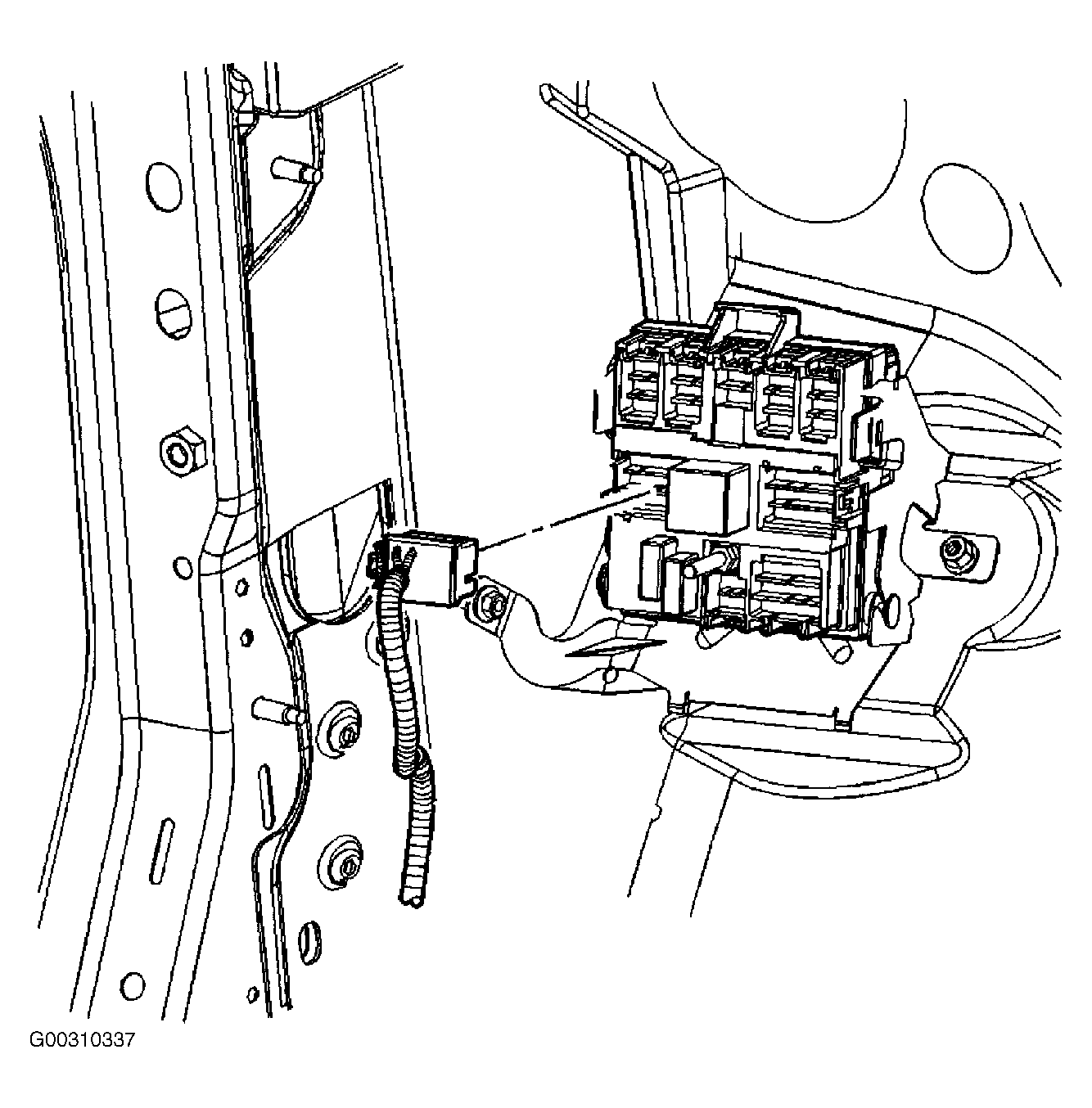

Fig 1: Locating Instrument Panel Relay Block

Courtesy of GENERAL MOTORS CORP.

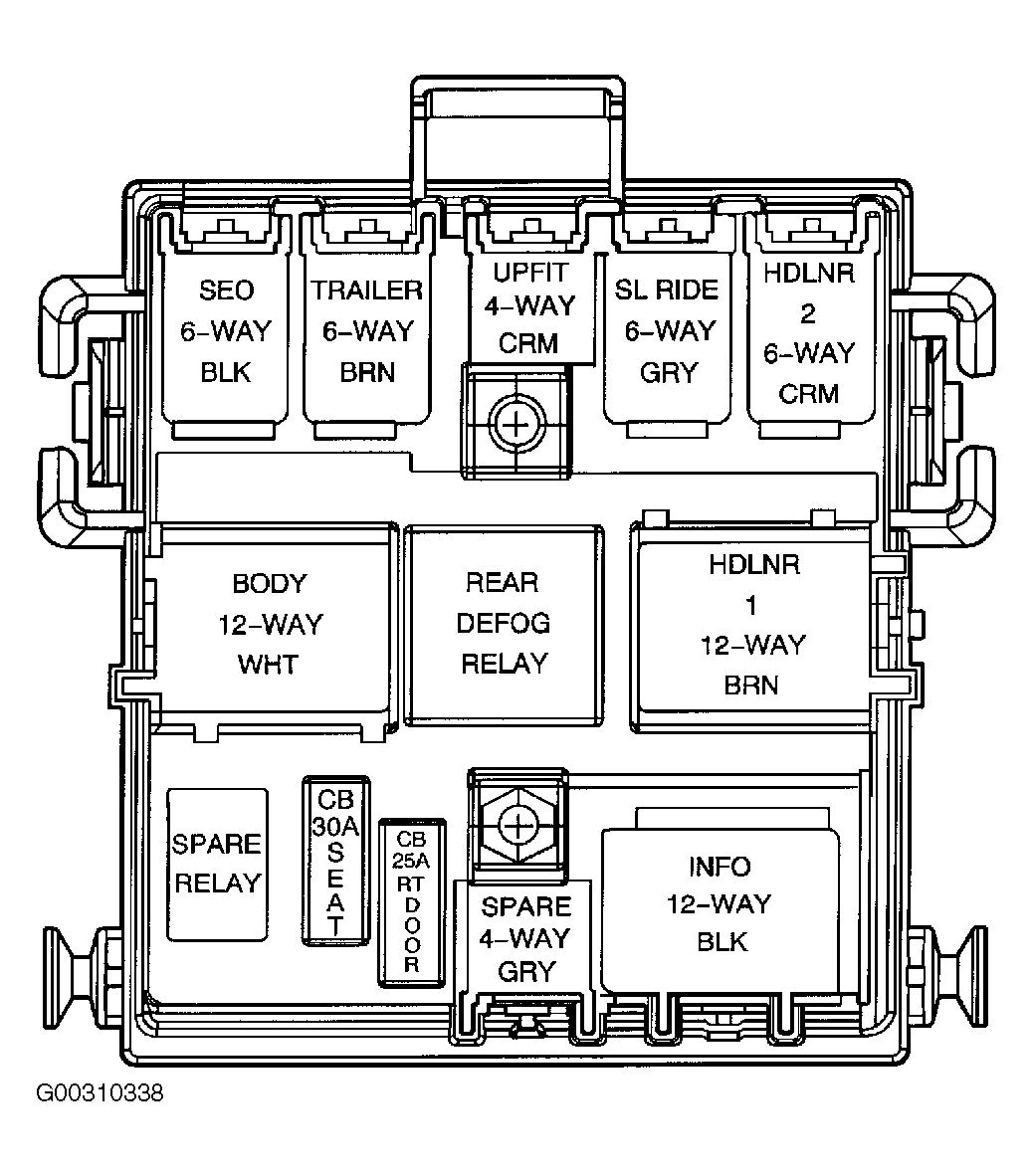

Fig 2: Identifying Instrument Panel Relay Block Components

Courtesy of GENERAL MOTORS CORP.

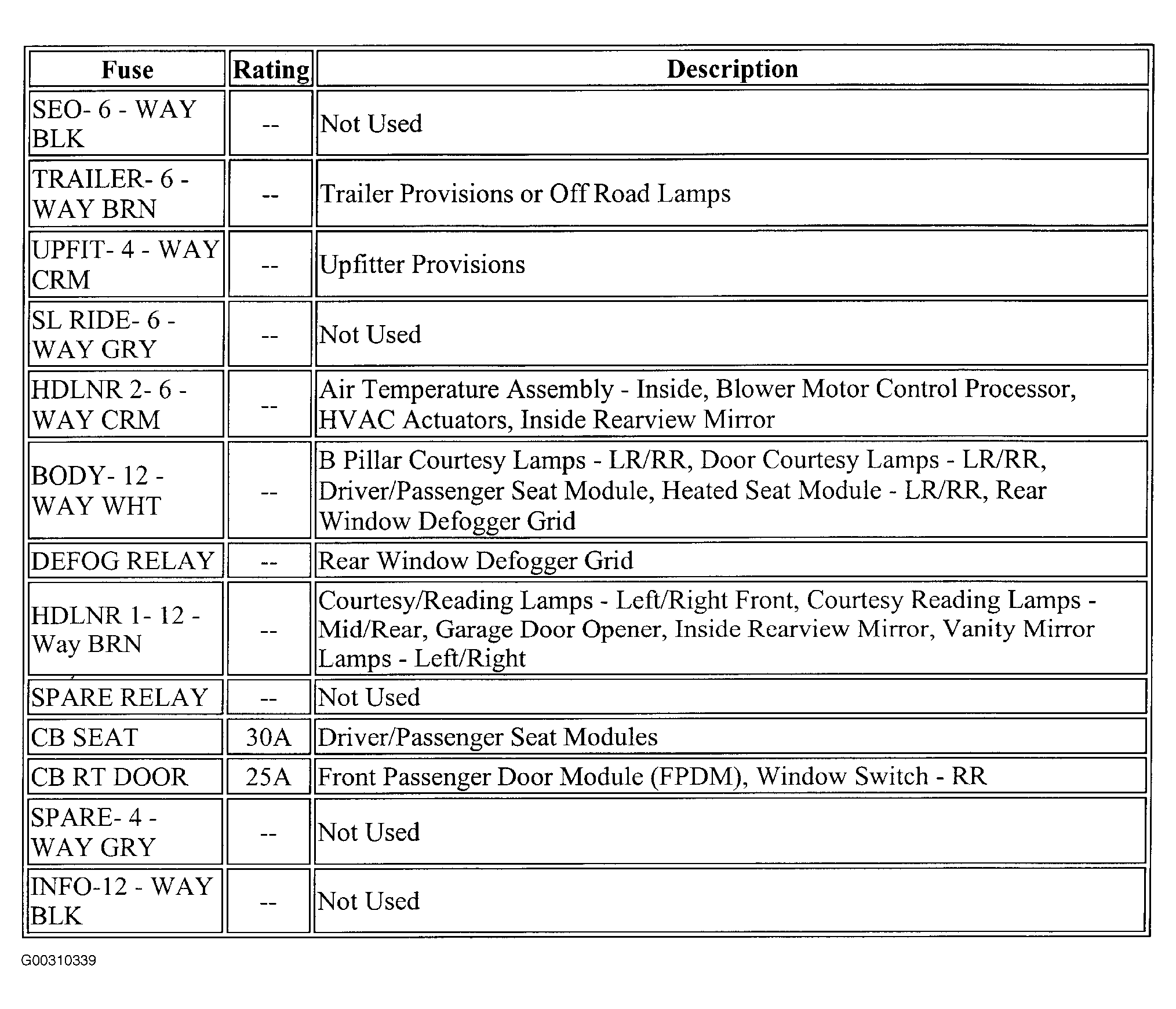

Fig 3: Instrument Panel Relay Block Legend

Courtesy of GENERAL MOTORS CORP.
