UNDERHOOD Fuse Block

NOTE: Underhood fuse block is located at left front corner of engine compartment. See Fig 1 .

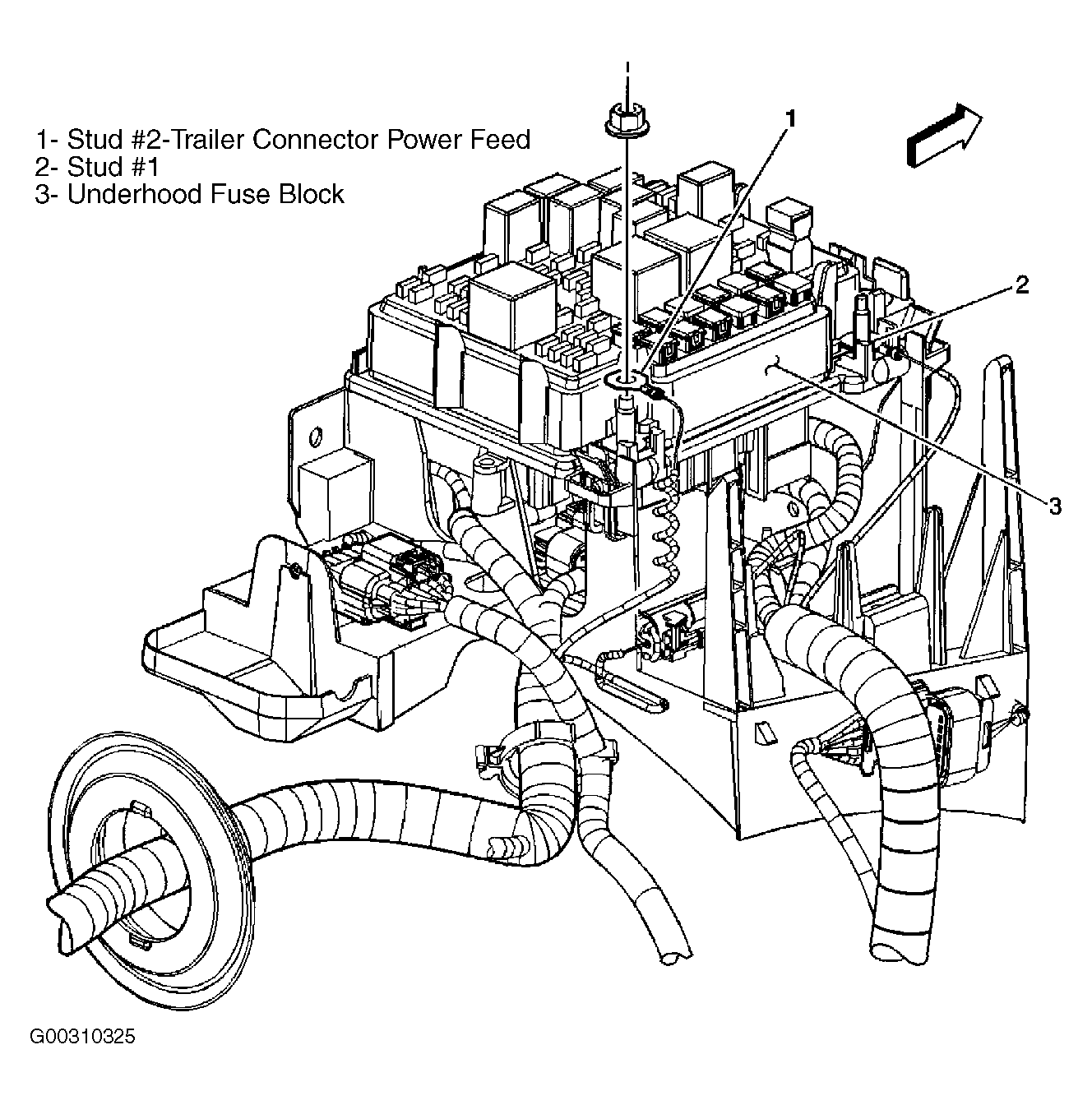

Fig 1: Locating Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.

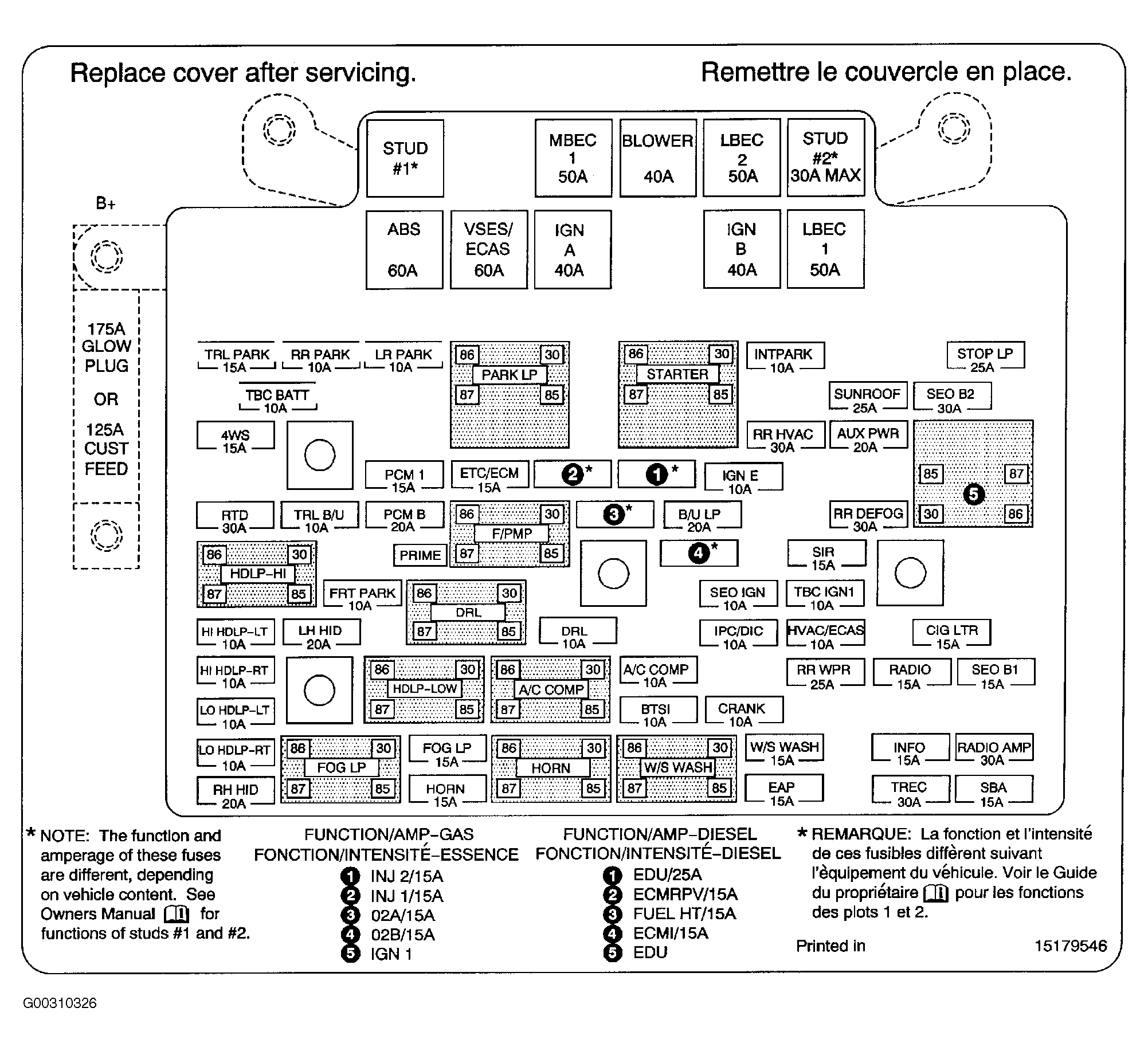

Fig 2: Identifying Underhood Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

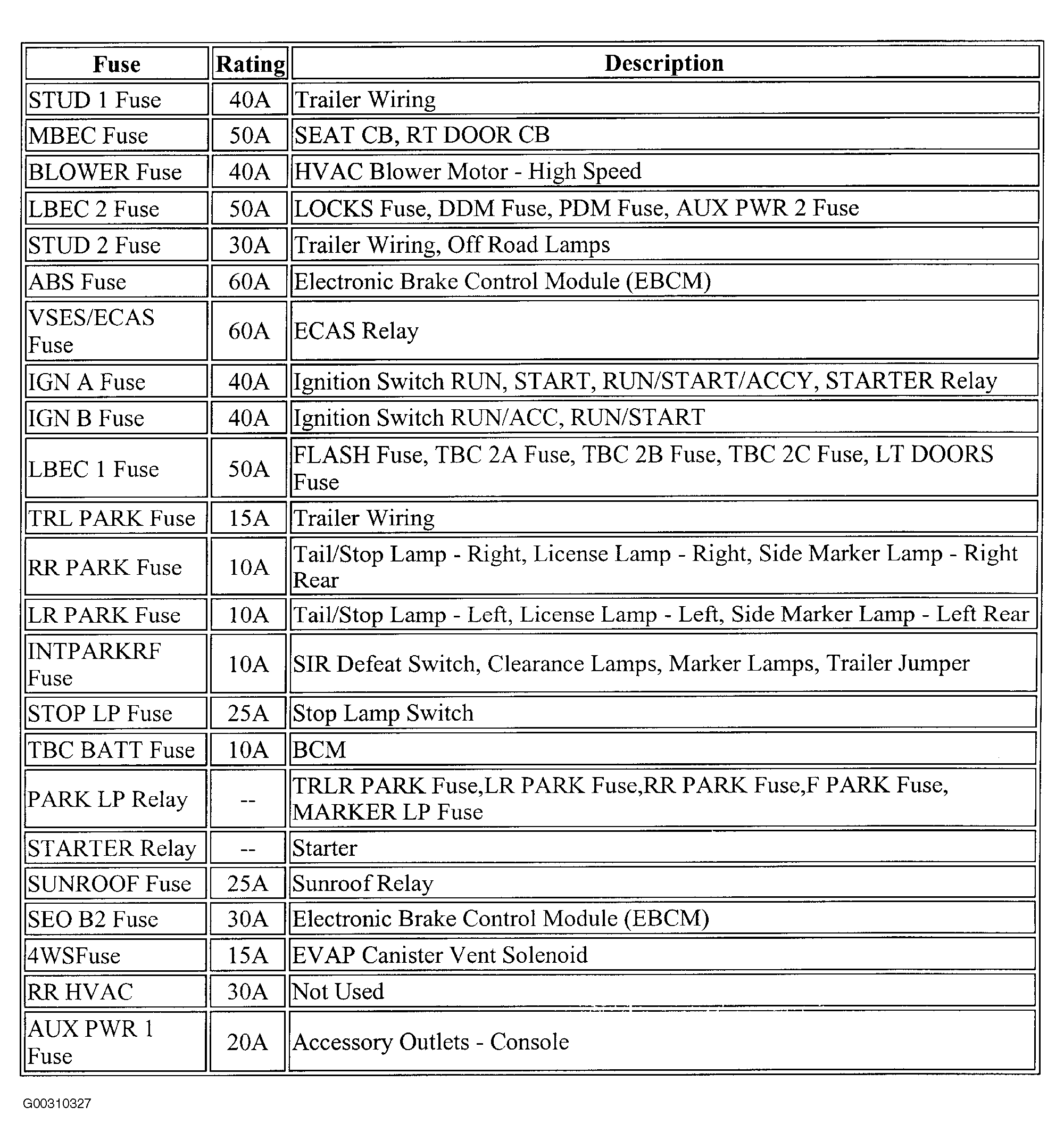

Fig 3: Underhood Fuse Block Legend - 1 Of 3 (2003)

Courtesy of GENERAL MOTORS CORP.

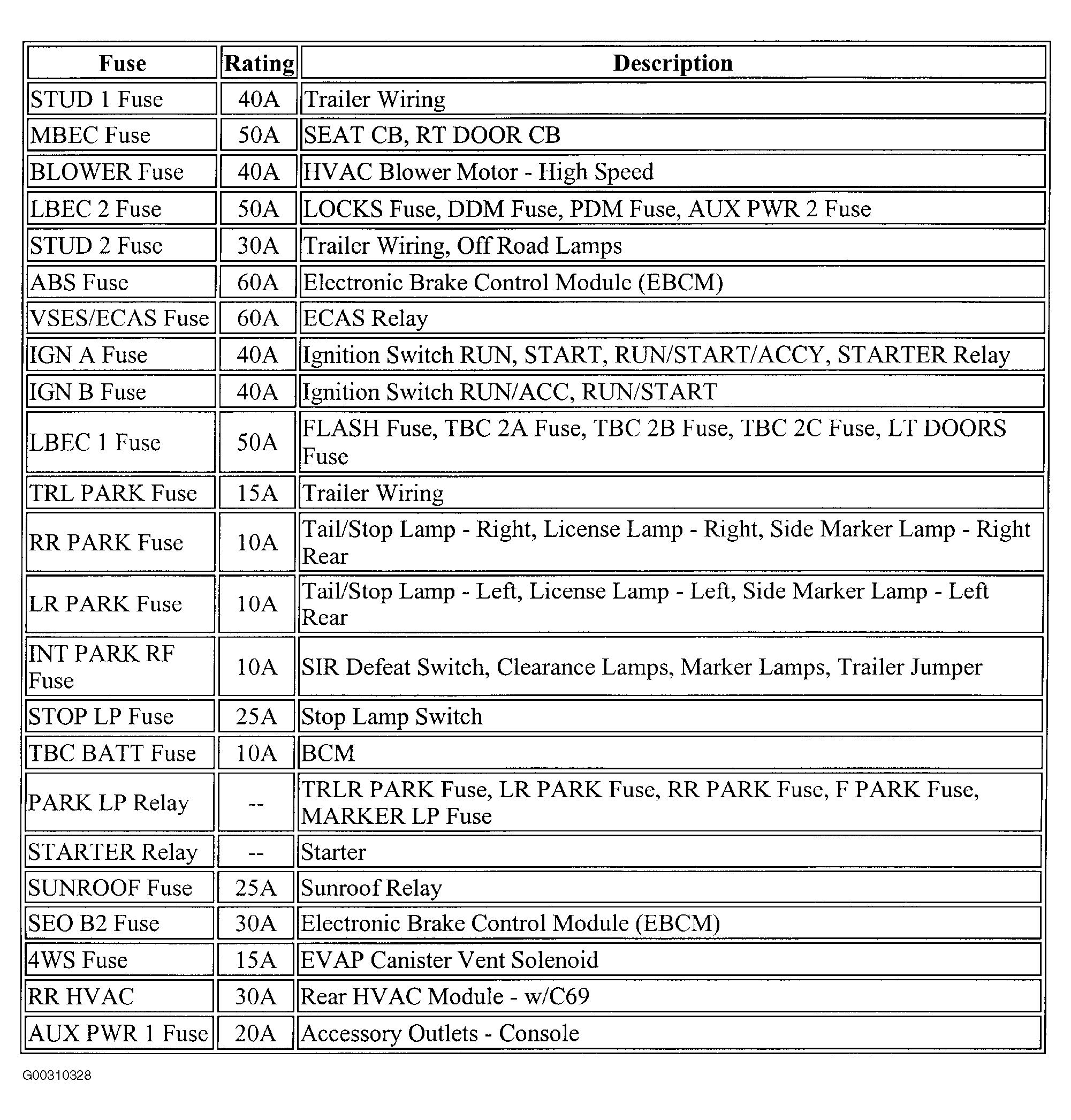

Fig 4: Underhood Fuse Block Legend - 1 Of 3 (2004)

Courtesy of GENERAL MOTORS CORP.

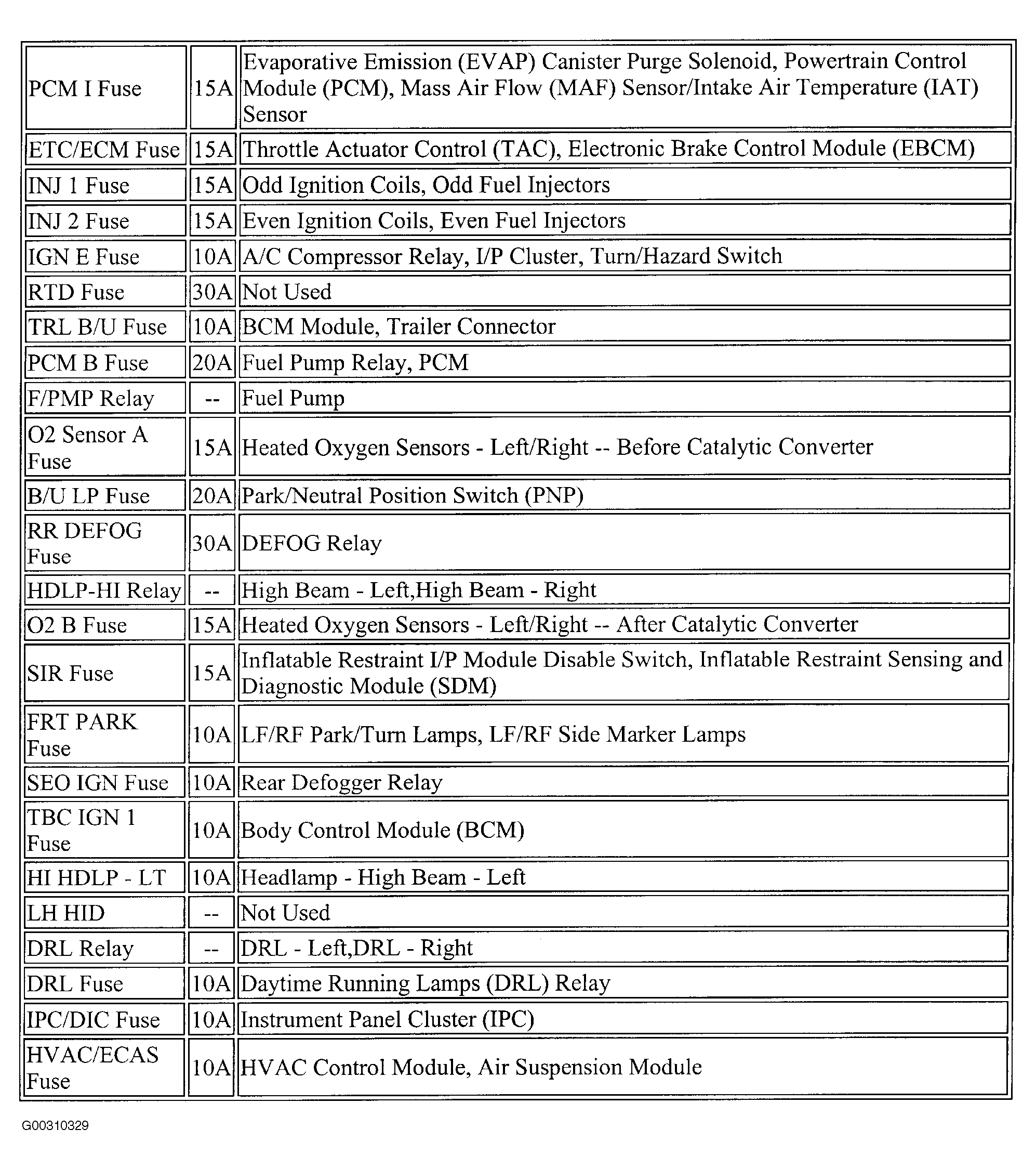

Fig 5: Underhood Fuse Block Legend - 2 Of 3 (2003-04)

Courtesy of GENERAL MOTORS CORP.

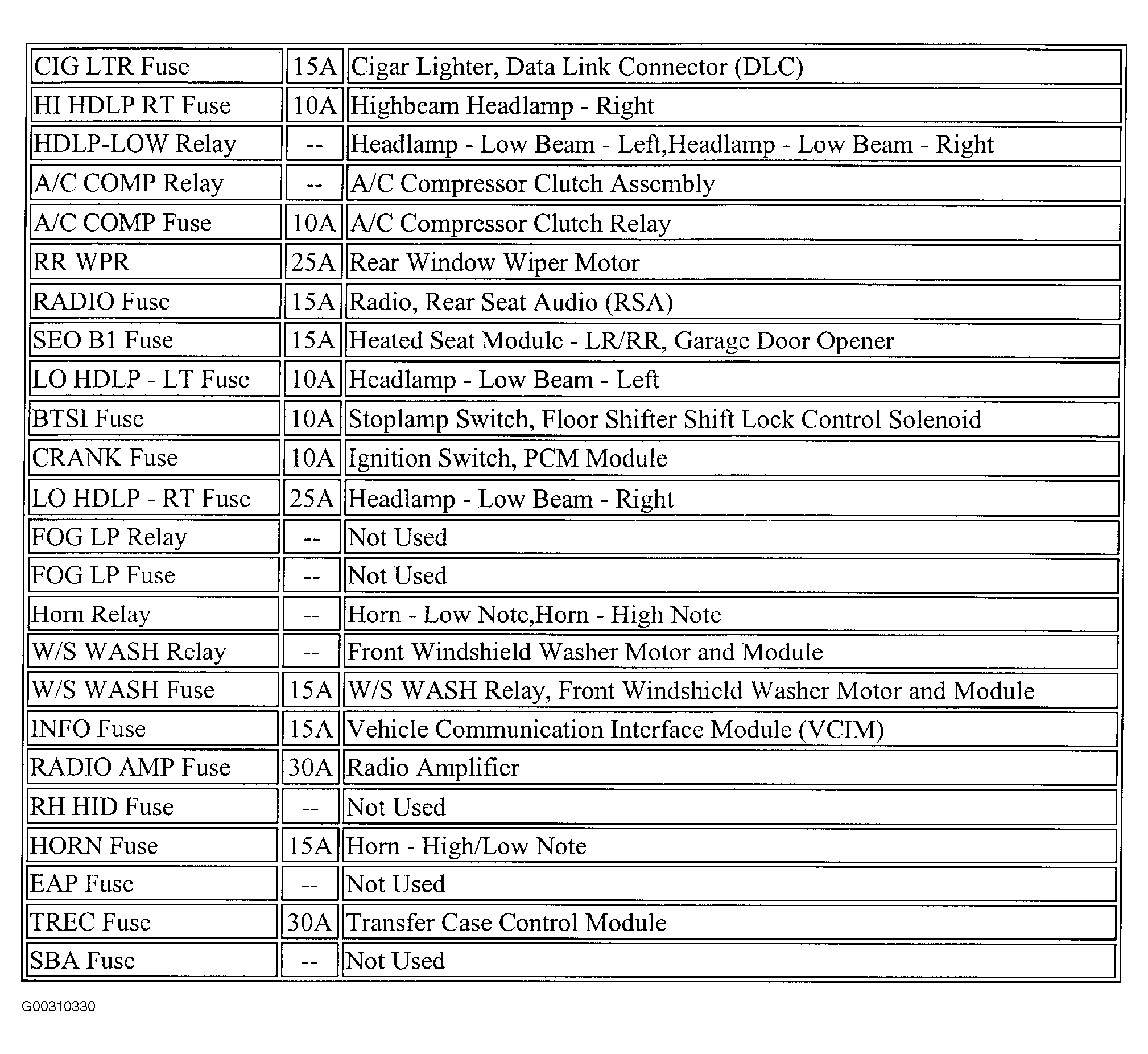

Fig 6: Underhood Fuse Block Legend - 3 Of 3 (2003)

Courtesy of GENERAL MOTORS CORP.

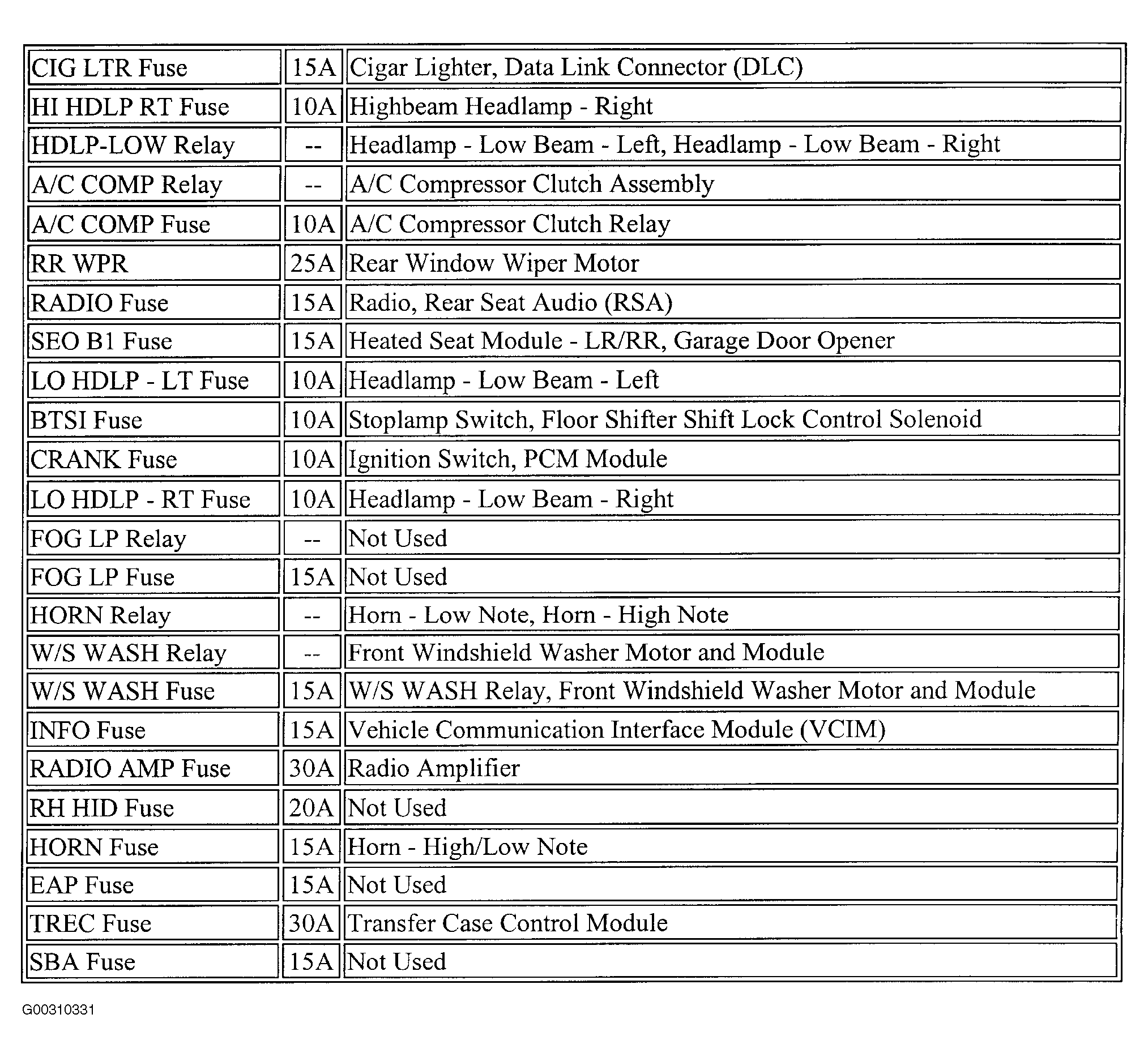

Fig 7: Underhood Fuse Block Legend - 3 Of 3 (2004)

Courtesy of GENERAL MOTORS CORP.
