Starter Motor: Installation

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

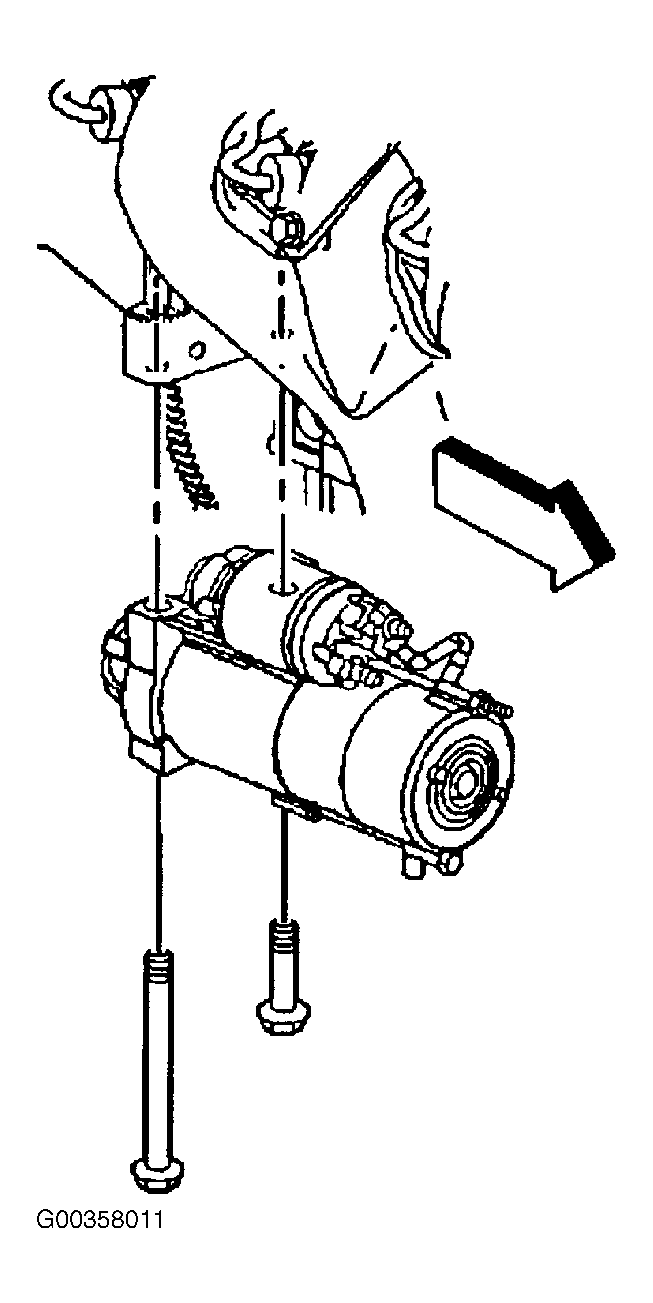

  1. Position the starter motor to the block. See Figure . Install the starter motor bolts. Tighten the starter motor bolts to specifications. See TORQUE SPECIFICATIONS  .
    NOTE: Orient the purple lead wire to the 10:00 position when installing.

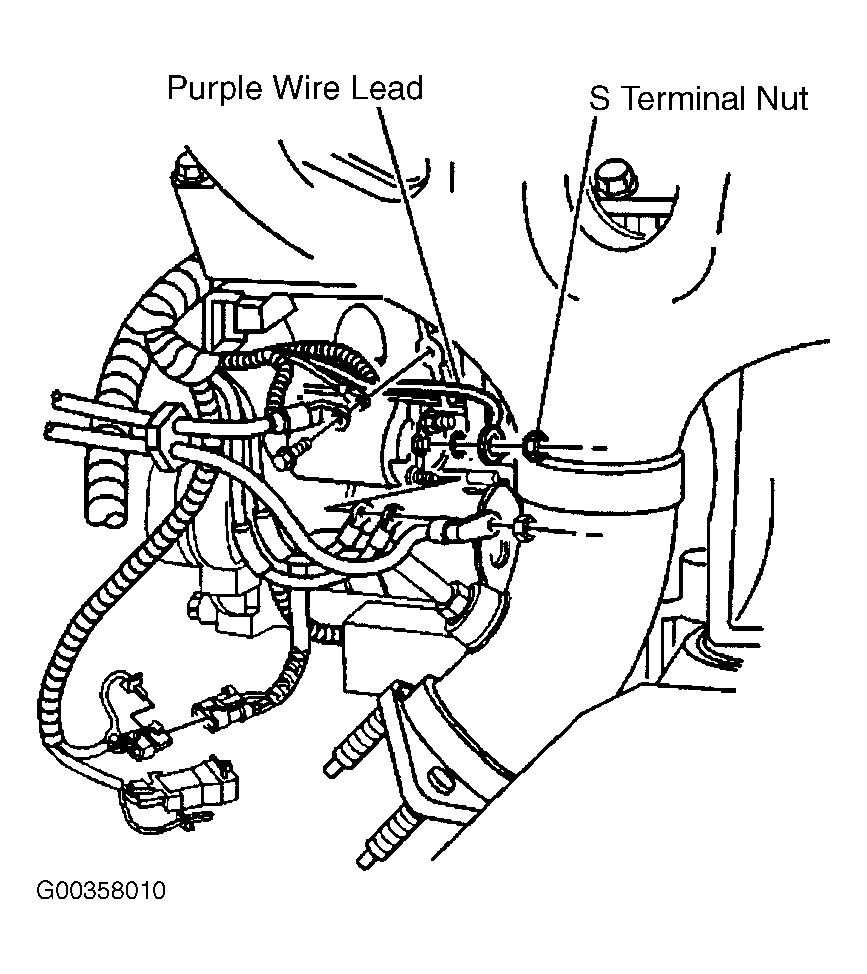

  2. Install the starter motor S terminal washer and purple lead wire. See Figure . Install the S terminal nut. Tighten the S terminal nut to specifications. See TORQUE SPECIFICATIONS  .
    NOTE: Orient gray and rust harness leads to the 6:00 and 7:00 position.
  3. Install the gray and rust harness leads to the solenoid. Install the positive battery cable terminal to the solenoid. Install the positive battery cable nut. Tighten the positive battery cable nut to specifications. See TORQUE SPECIFICATIONS  .
  4. Install the catalytic converter. Tighten all bolts and fasteners to specifications. See TORQUE SPECIFICATIONS  . Connect the negative battery cable. Tighten cable to specifications. See TORQUE SPECIFICATIONS  .
