Lighting Systems Component Views

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

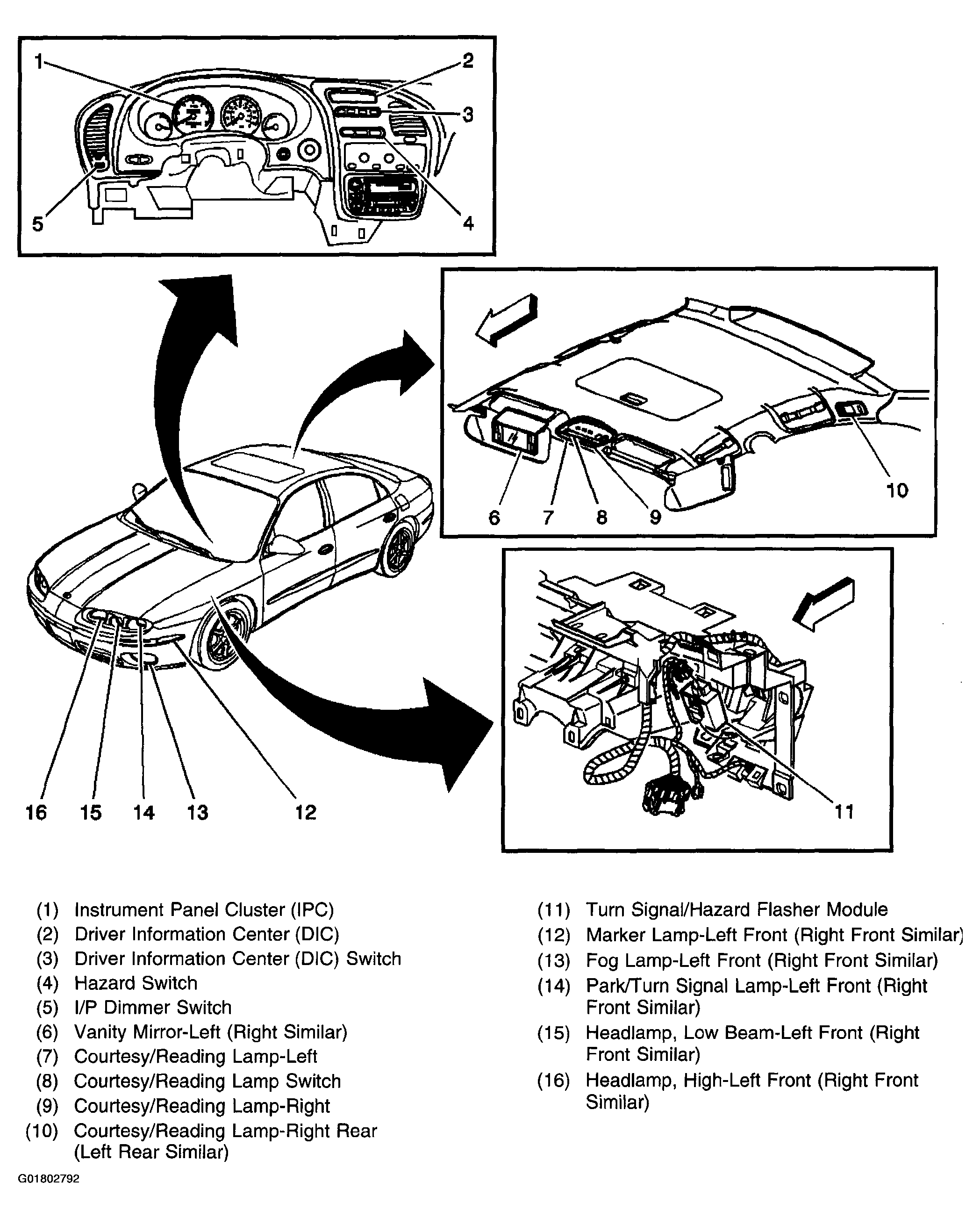

Fig 1: Lighting Sub-System (Front, Dash and Headliner)

Courtesy of GENERAL MOTORS CORP.

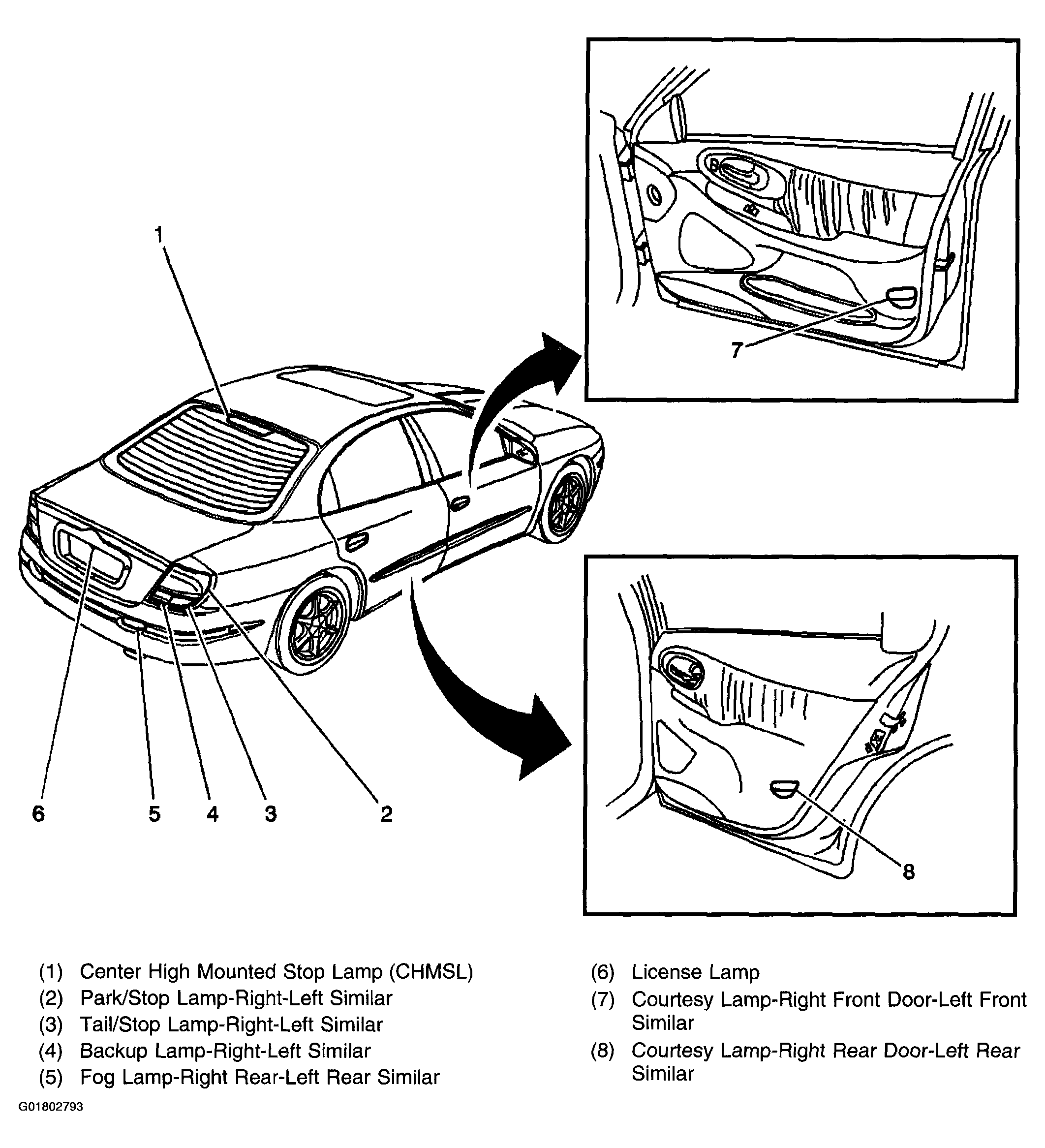

Fig 2: Lighting Sub-System-Rear and Doors

Courtesy of GENERAL MOTORS CORP.
