Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the rain sensor module.
  2. Install the rain sensor module in the windshield coupler.

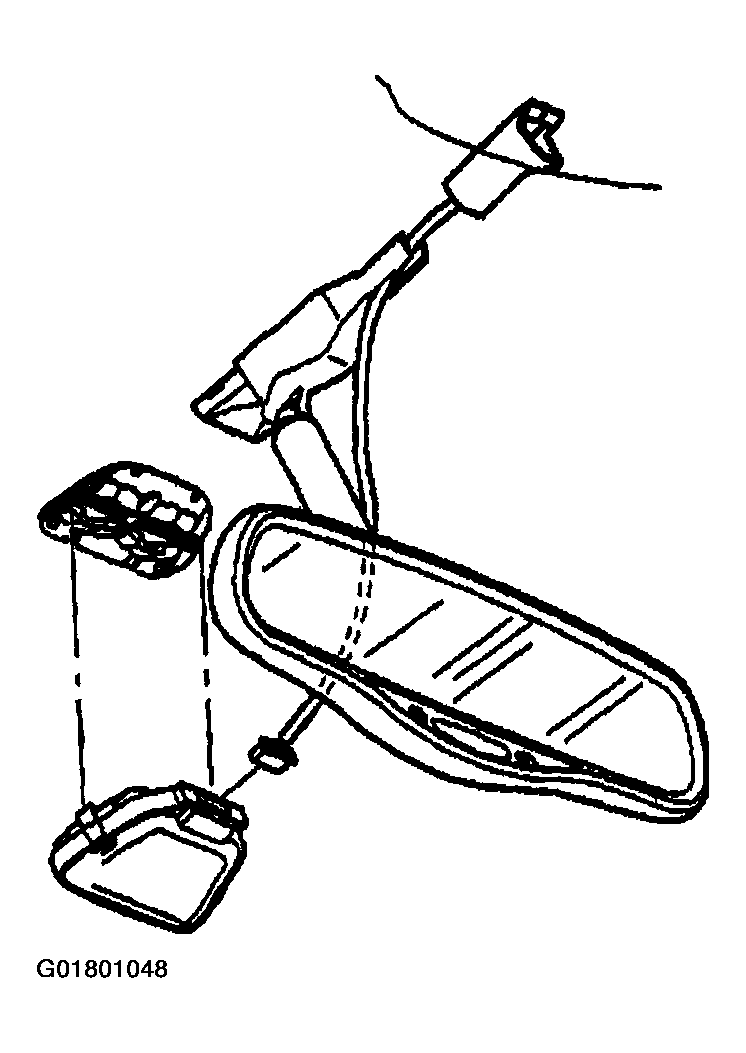

    3. Fig 1: Installing Rain Sensor Module
    G01801048Courtesy of GENERAL MOTORS CORP.
  3. Fasten the windshield coupler clips.
  4. Install the trim cover on the rain sensor module.

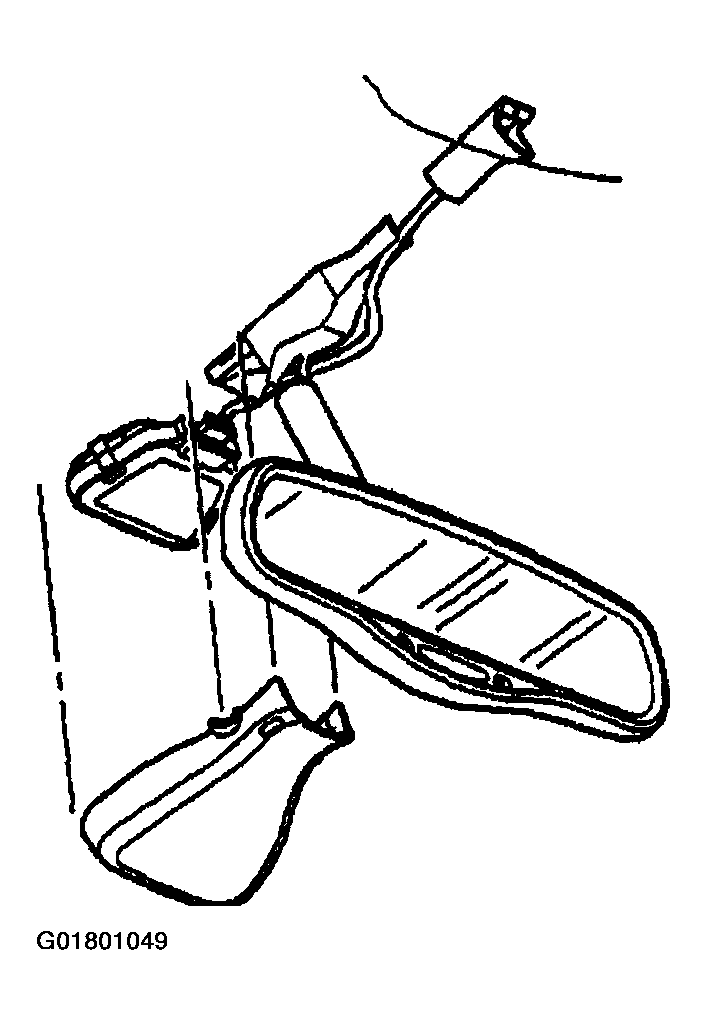

    Fig 2: Installing Rain Sensor Module Trim Cover
    G01801049Courtesy of GENERAL MOTORS CORP.
