P/S Angle Sensor Assembly Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the P/S angle sensor in the order shown in the figure.

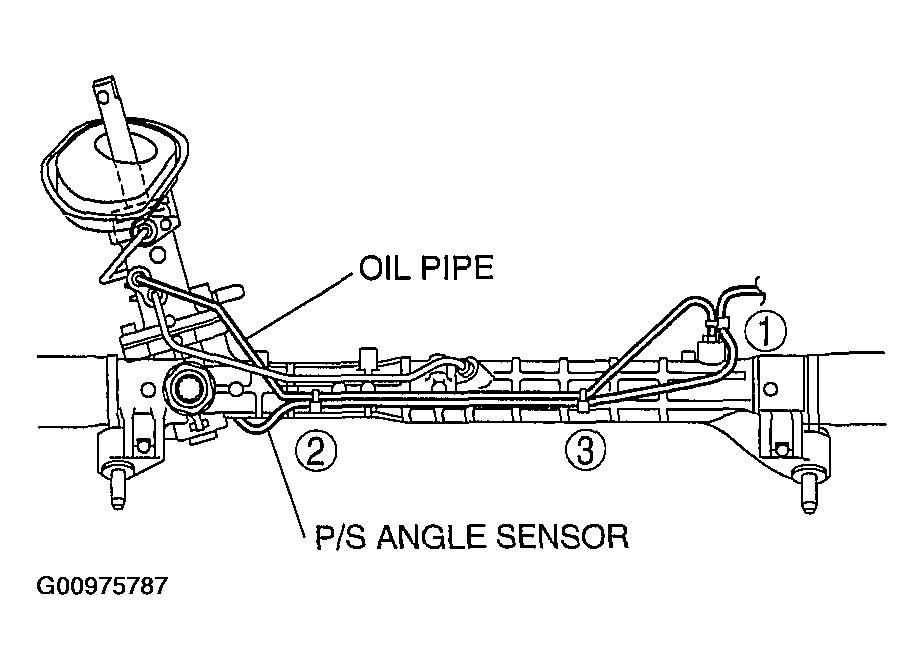

    Fig 1: P/S Angle Sensor Assembling Sequence
    G00975787Courtesy of MAZDA MOTORS CORP.
