Transmitter Id Code Registration

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When registering the ID code into a keyless control module, verify that other transmitters are not being operated in the vicinity.
After ID code registering, remove the key from the steering lock and verify that all doors lock/unlock normally using the transmitter.

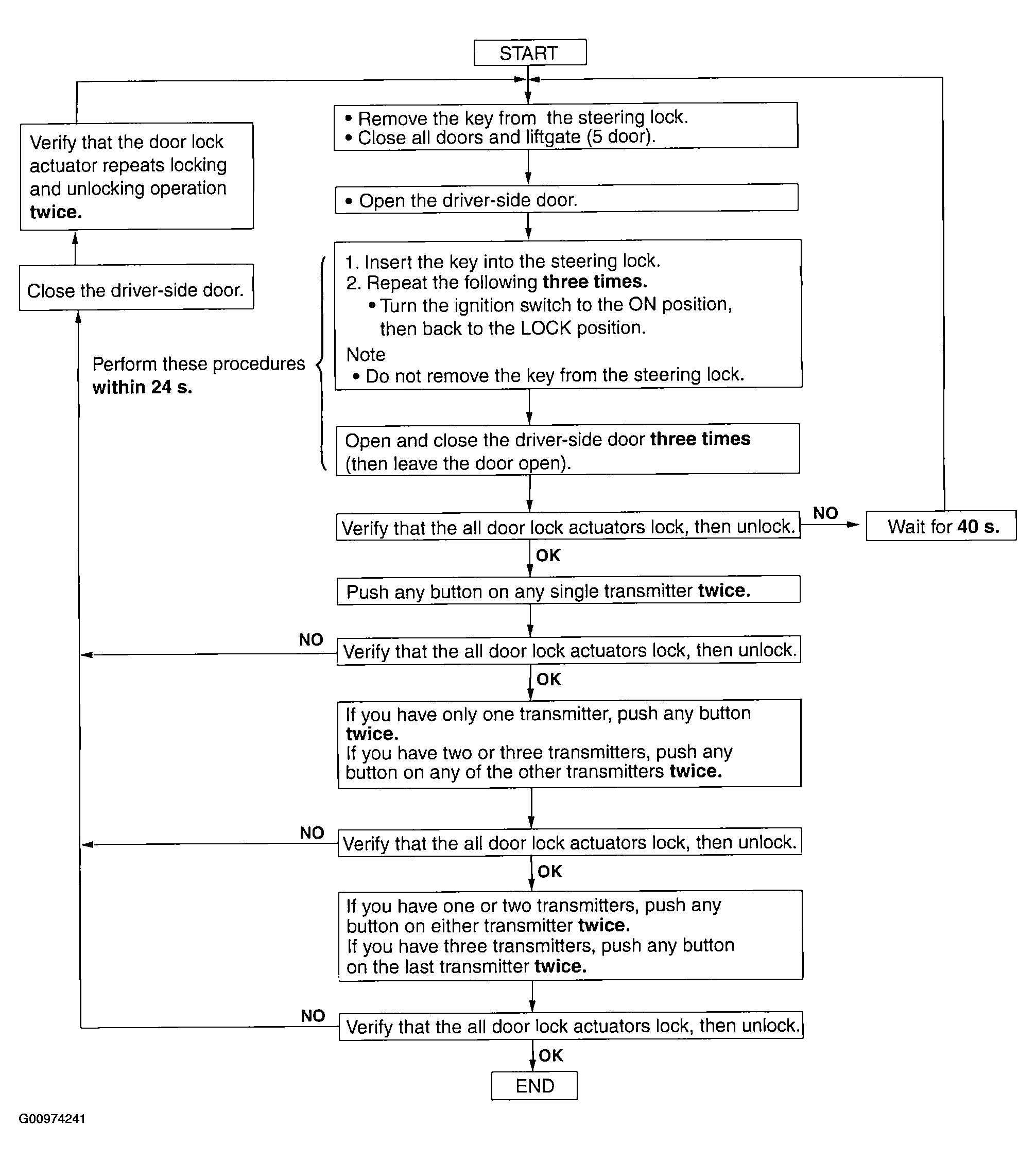

Fig 1: Registering Transmitter ID Code

Courtesy of MAZDA MOTORS CORP.
