Ignition Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the continuity between the ignition switch terminals is as indicated in the table.
- If not as indicated in the table, replace the ignition switch.

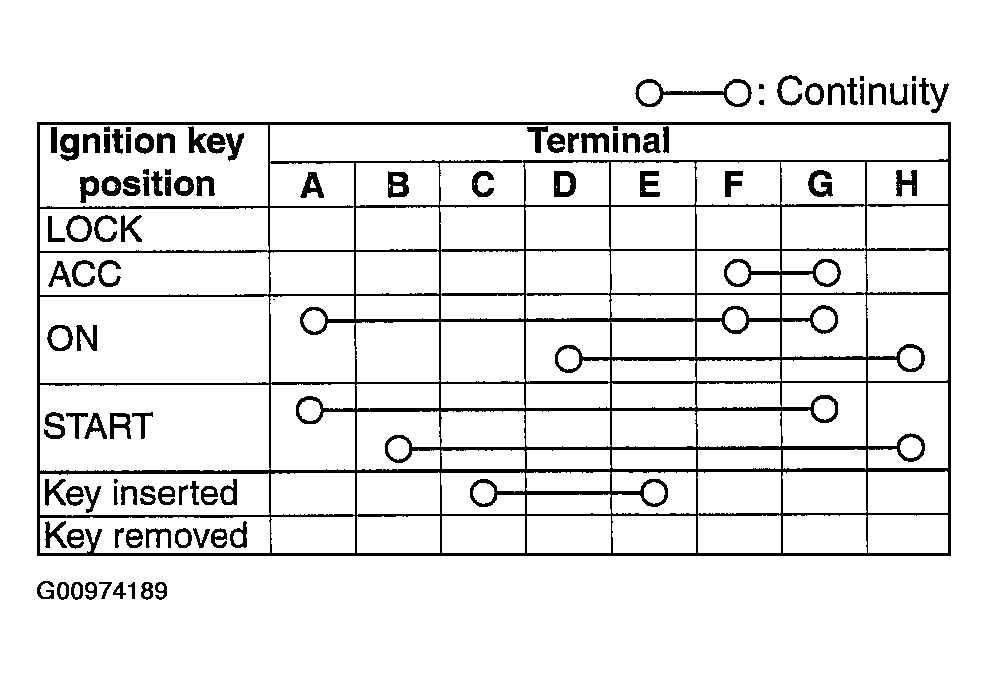

Fig 1: Ignition Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Ignition Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
