Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.

Install the yaw rate sensor electrical connector (3).
Install the yaw rate sensor (2). Tighten: Tighten the 2 yaw rate sensor mounting nuts (1) to 6 N.m (53 lb in).
Perform the ABS Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS .

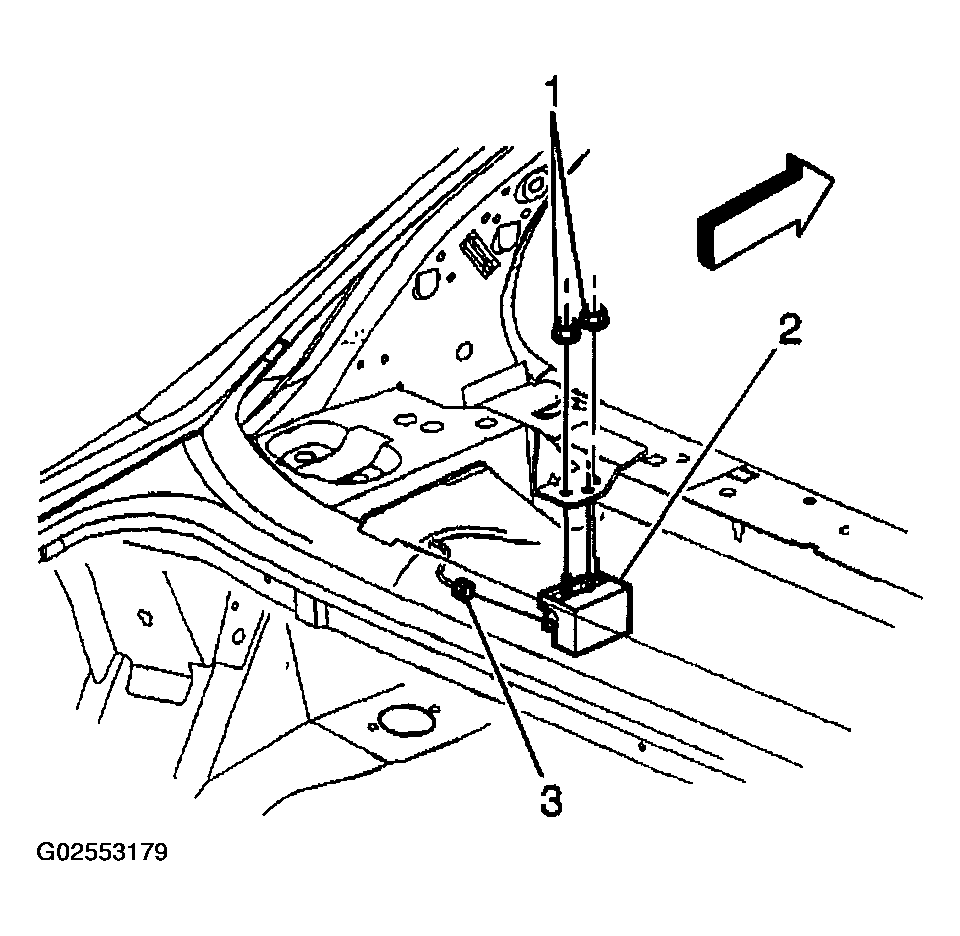

Fig 1: Removing & Installing Yaw Rate Sensor

Courtesy of GENERAL MOTORS CORP.
