Lighting Systems Connector End Views
WARNING:
This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

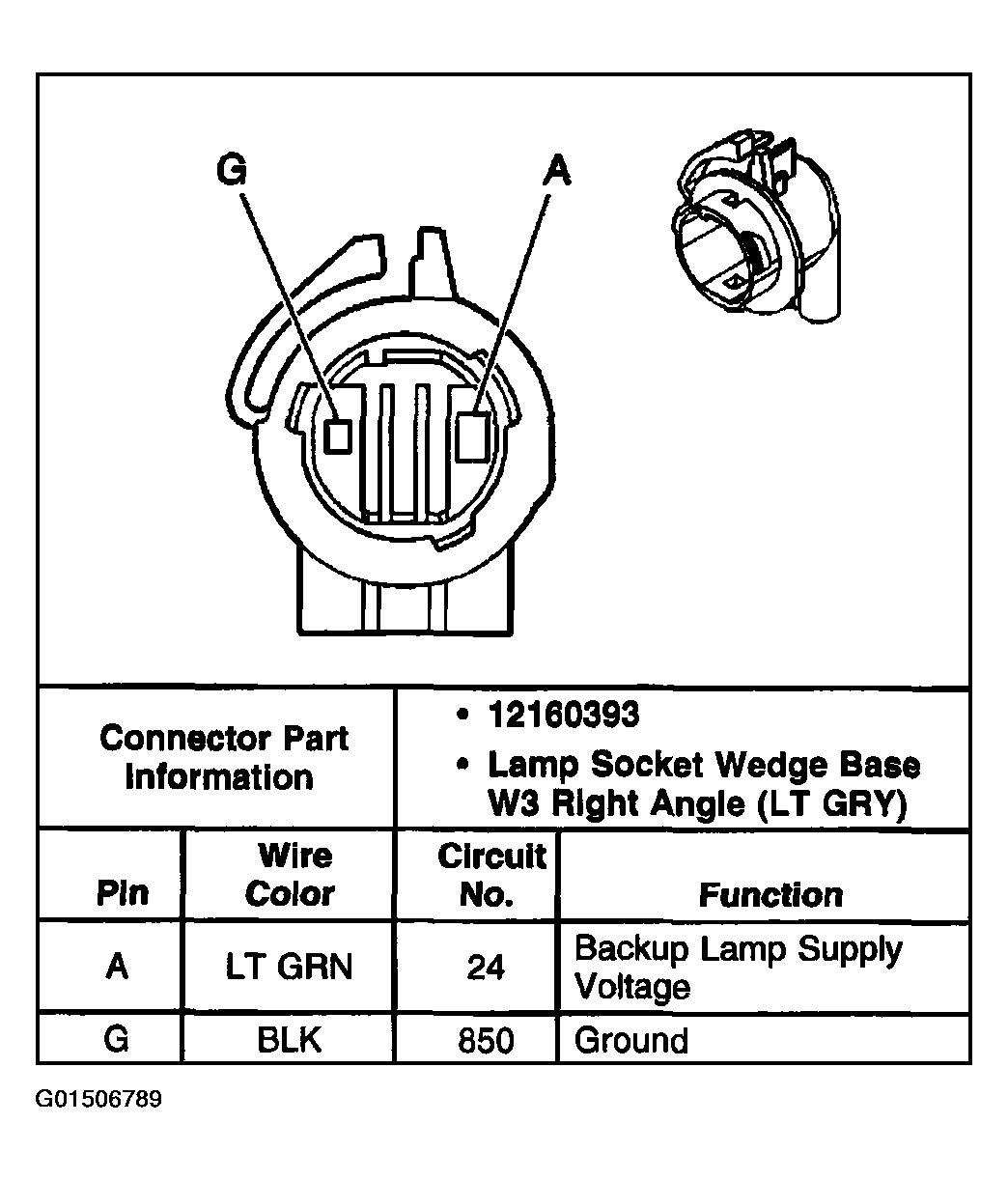

Fig 1: Identifying Backup Lamp Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Backup Lamp Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Center High Mounted Stop Lamp Connector Terminals
Courtesy of GENERAL MOTORS CORP.

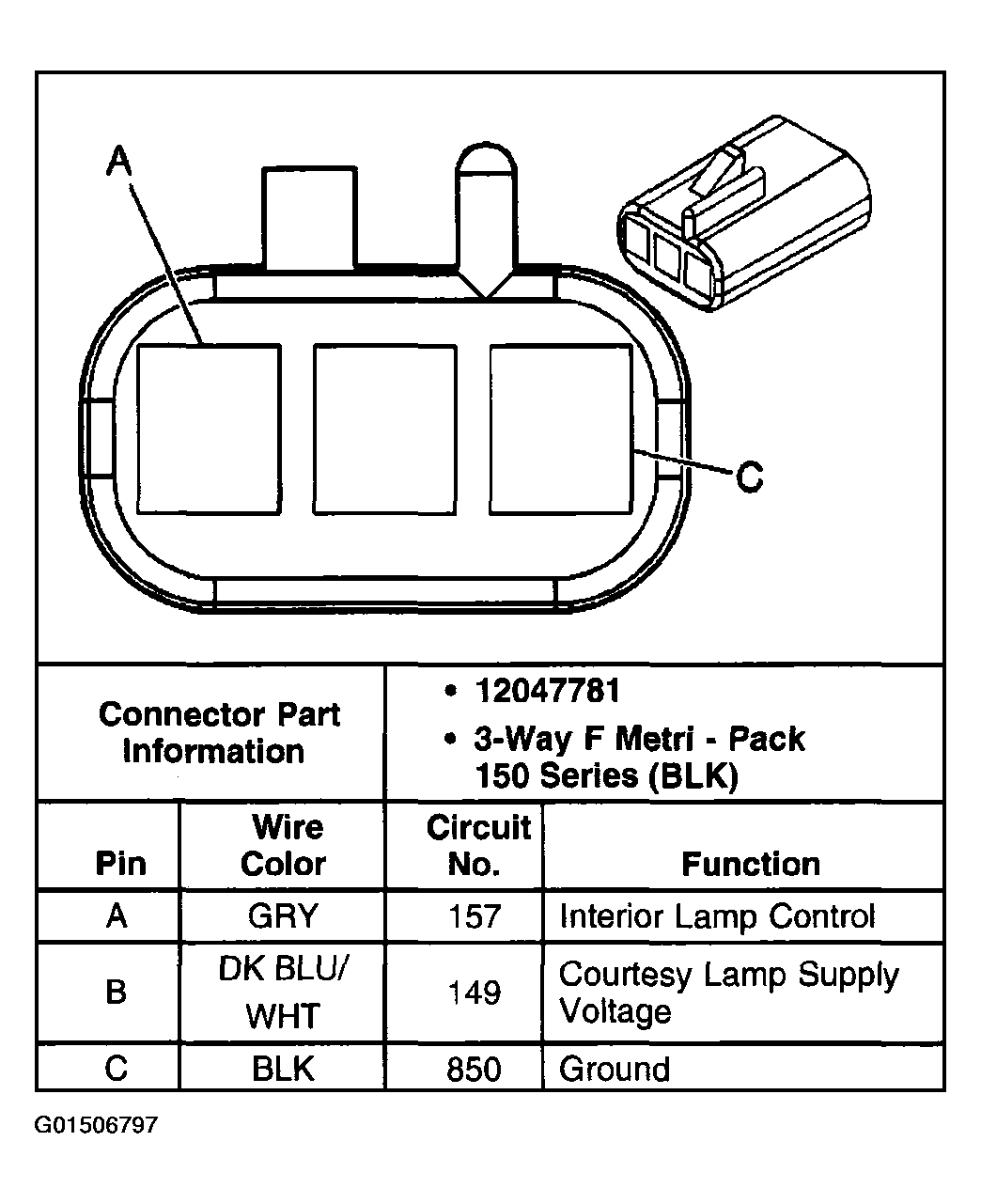

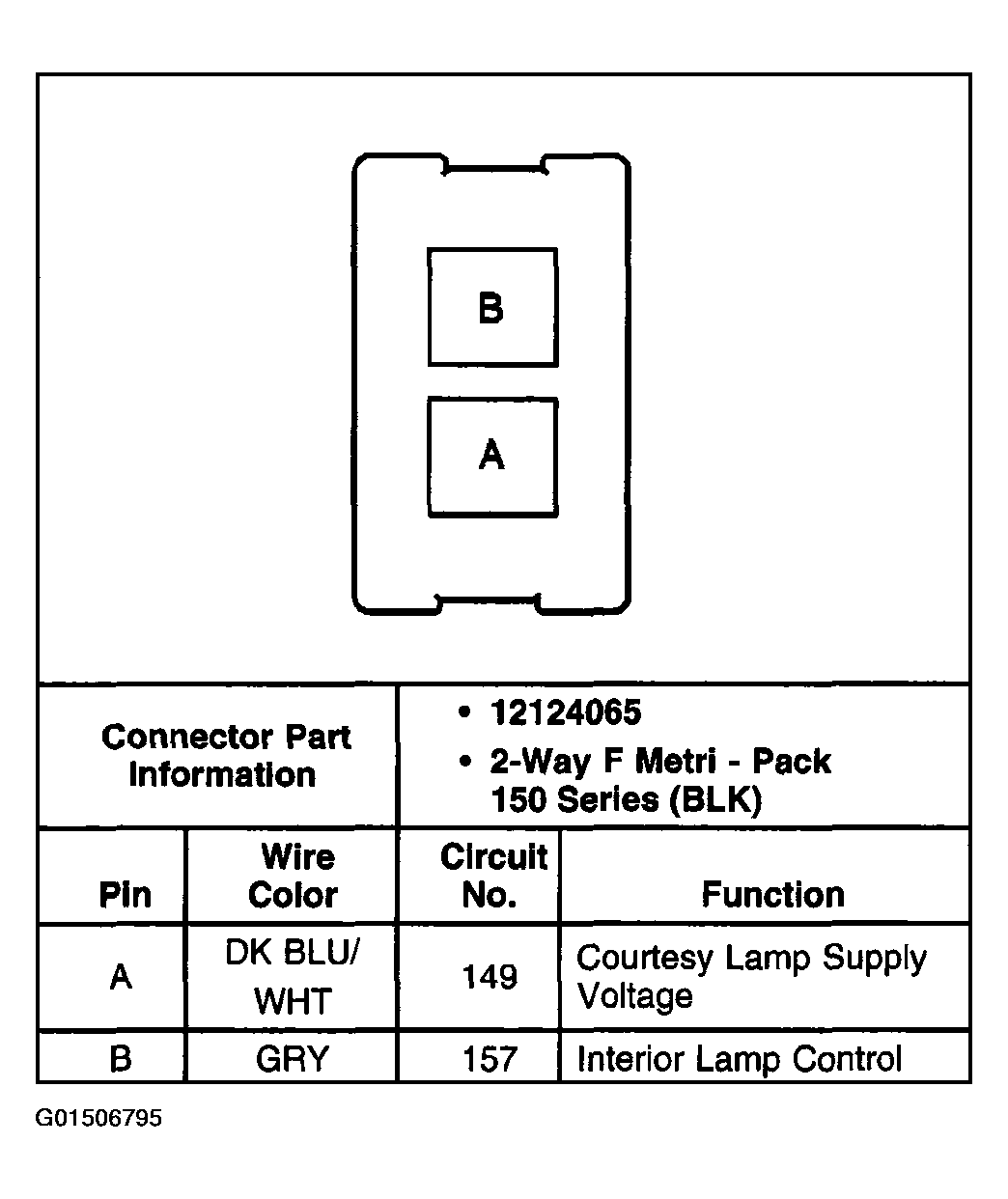

Fig 4: Identifying Courtesy Lamp Connector Terminals (Left Front Door)
Courtesy of GENERAL MOTORS CORP.

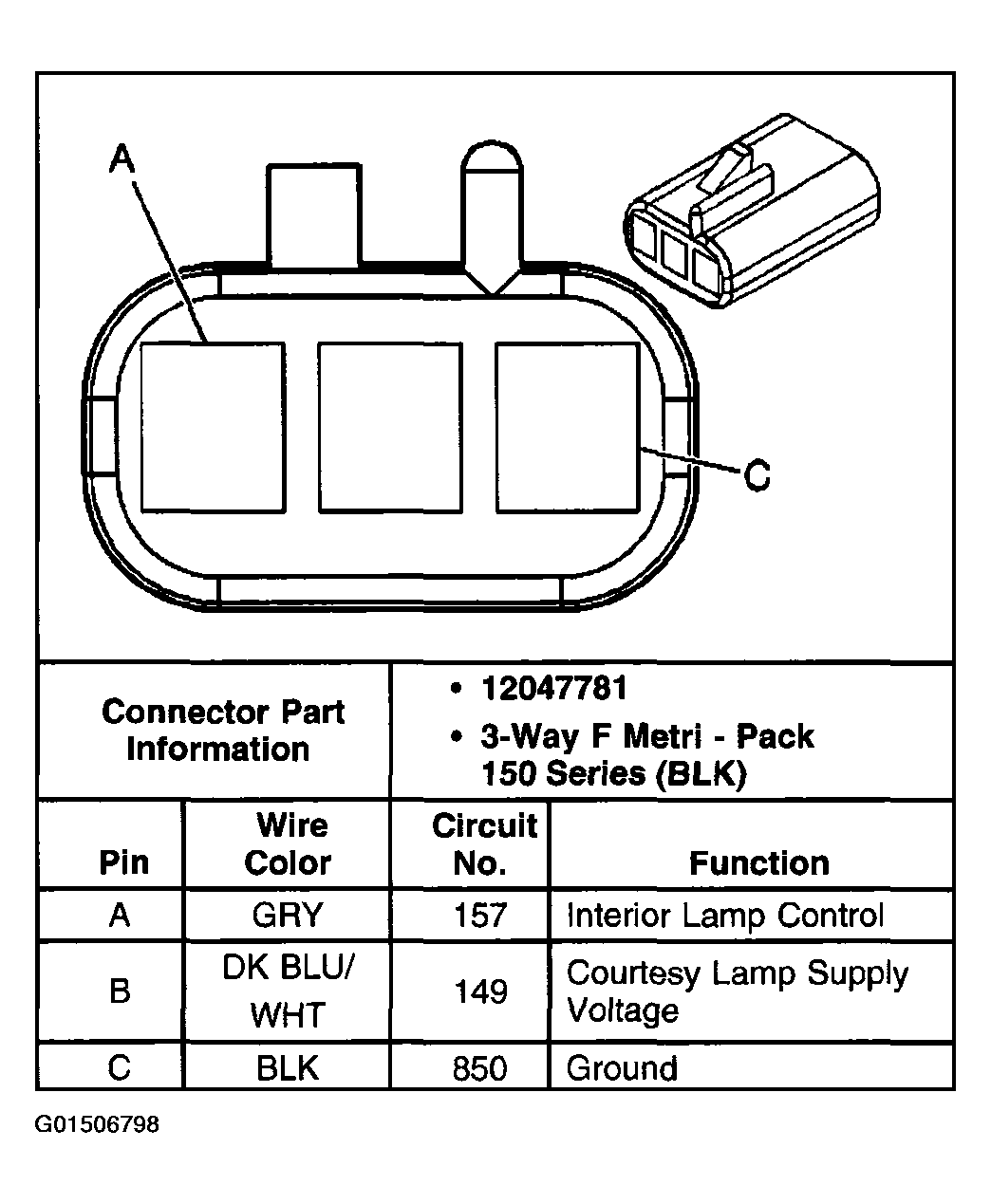

Fig 5: Identifying Courtesy Lamp Connector Terminals (Left Rear Door)
Courtesy of GENERAL MOTORS CORP.

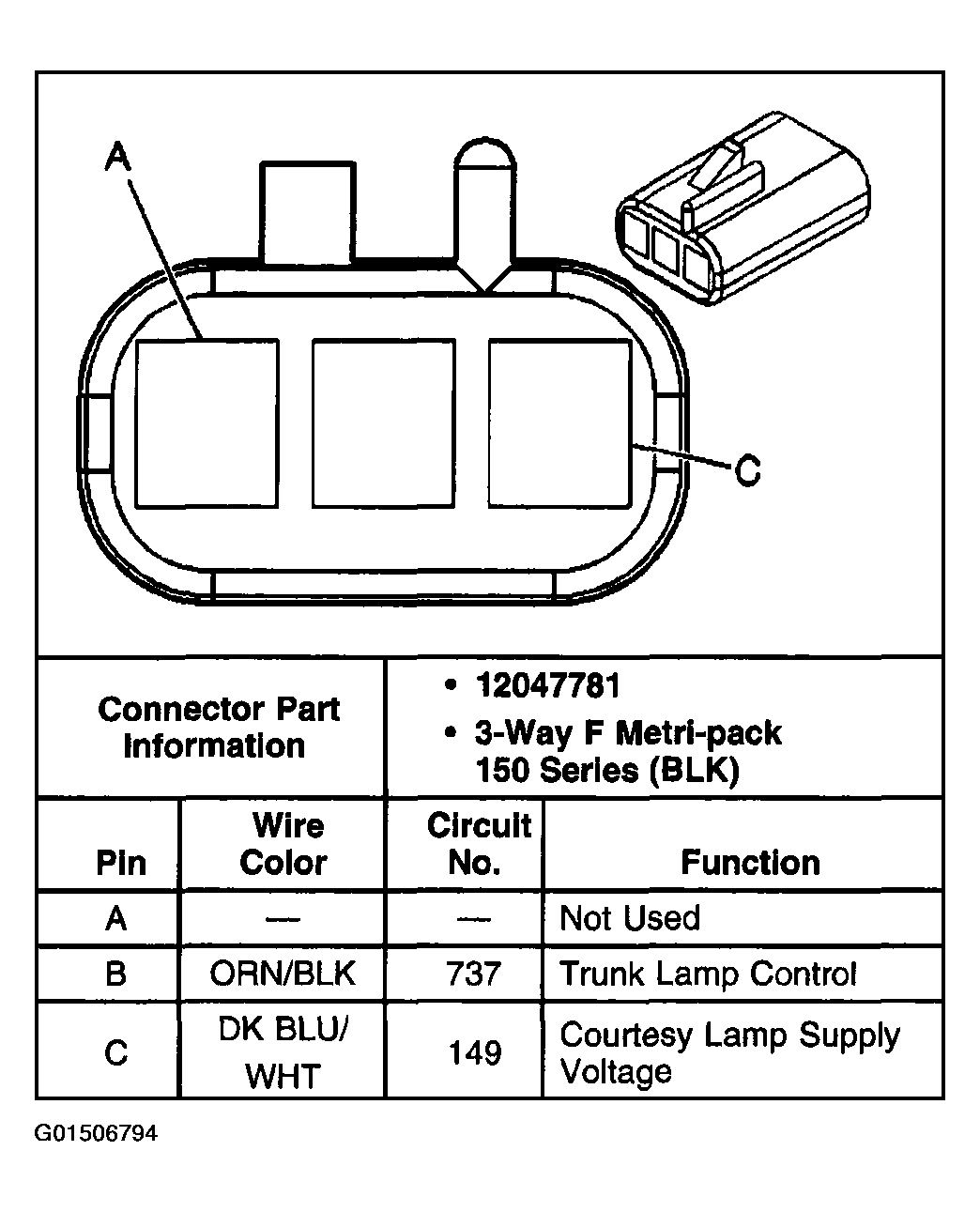

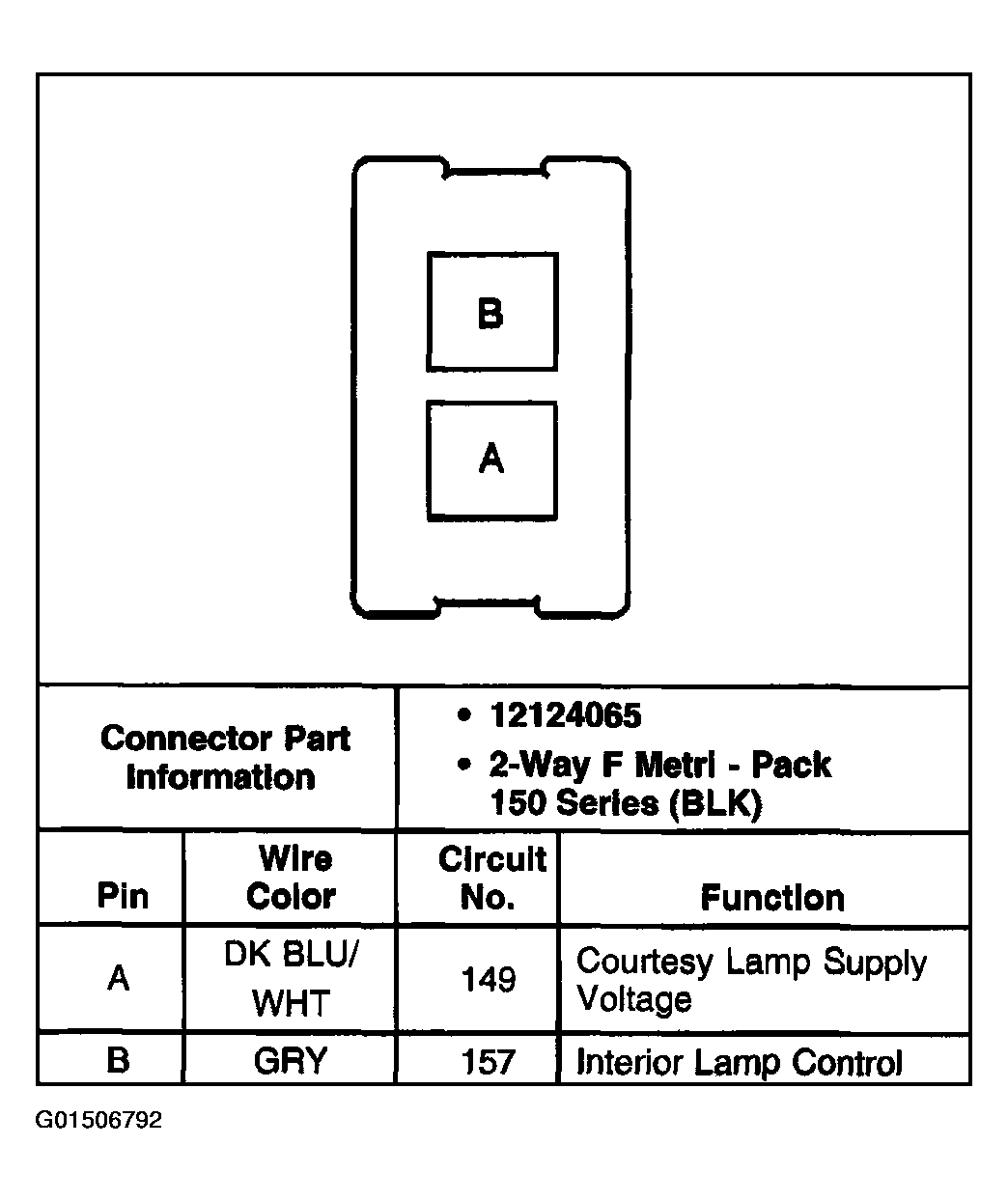

Fig 6: Identifying Courtesy Lamp Connector Terminals (Rear Compartment)
Courtesy of GENERAL MOTORS CORP.

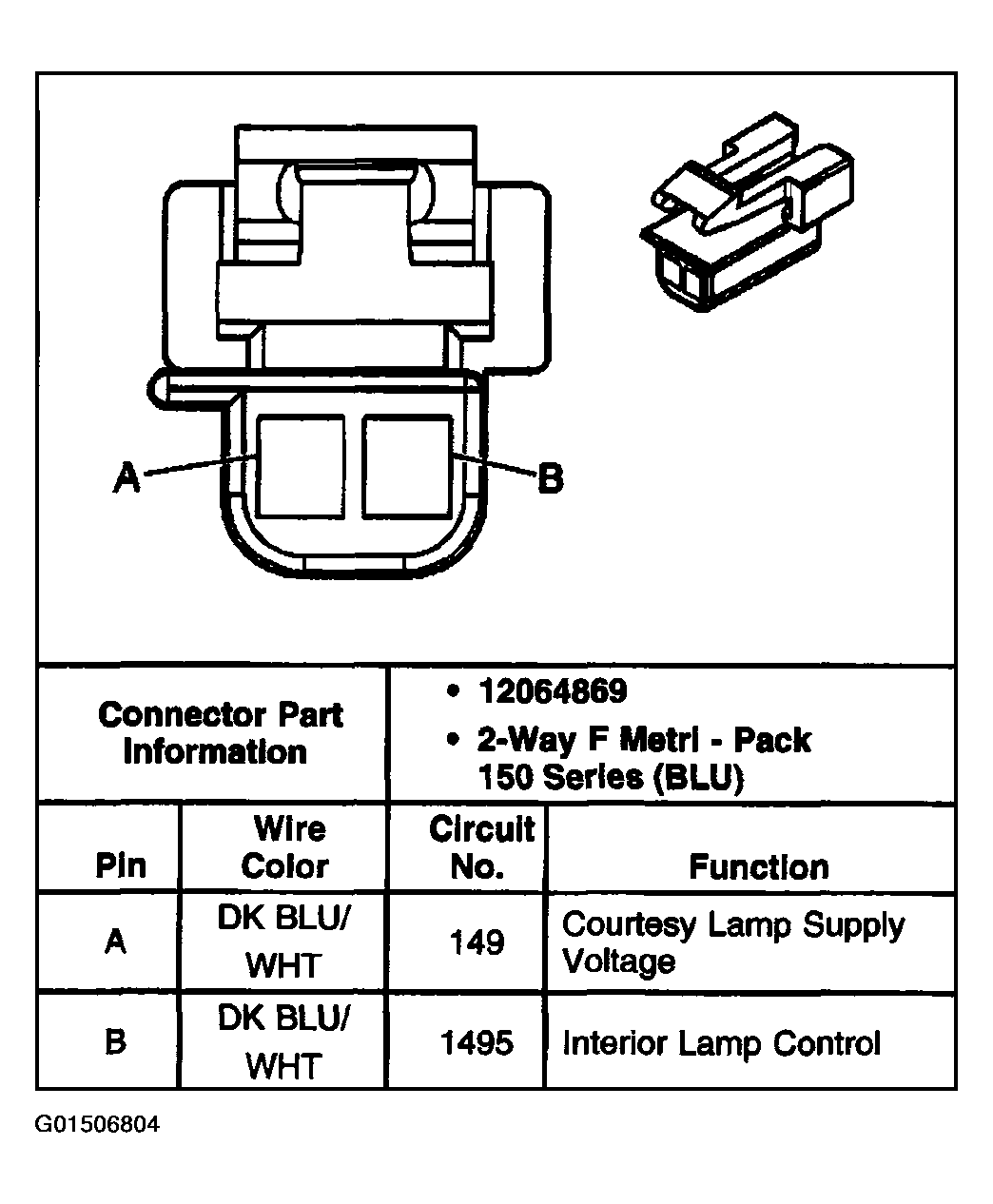

Fig 7: Identifying Courtesy Lamp Connector Terminals (Right Front Door)
Courtesy of GENERAL MOTORS CORP.

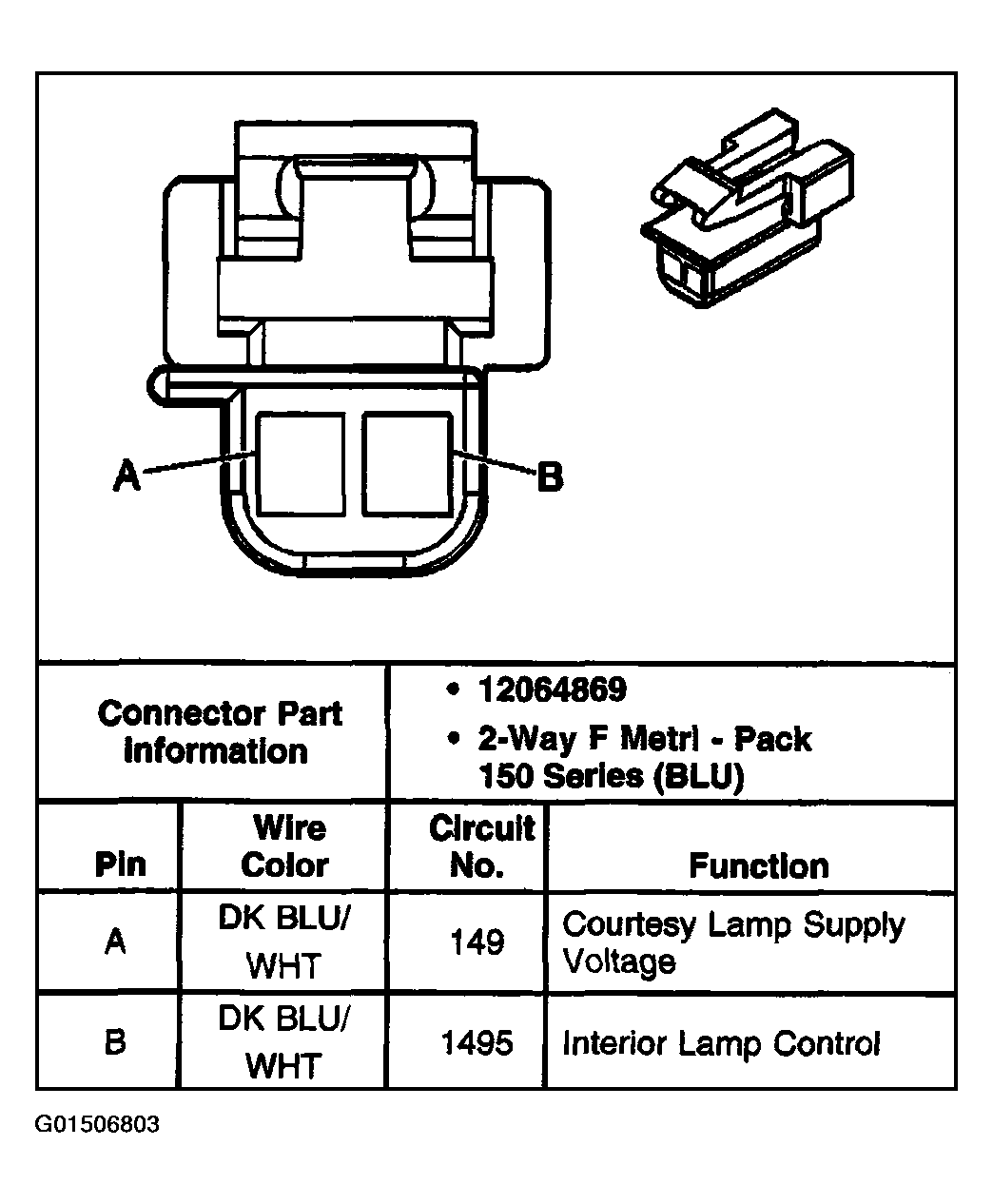

Fig 8: Identifying Courtesy Lamp Connector Terminals (Right Rear Door)
Courtesy of GENERAL MOTORS CORP.
Fig 9: Identifying Courtesy/Reading Lamp Connector Terminals - LR (+C96)
Courtesy of GENERAL MOTORS CORP.
Fig 10: Identifying Courtesy/Reading Lamp Connector Terminals - RR W/C96
Courtesy of GENERAL MOTORS CORP.

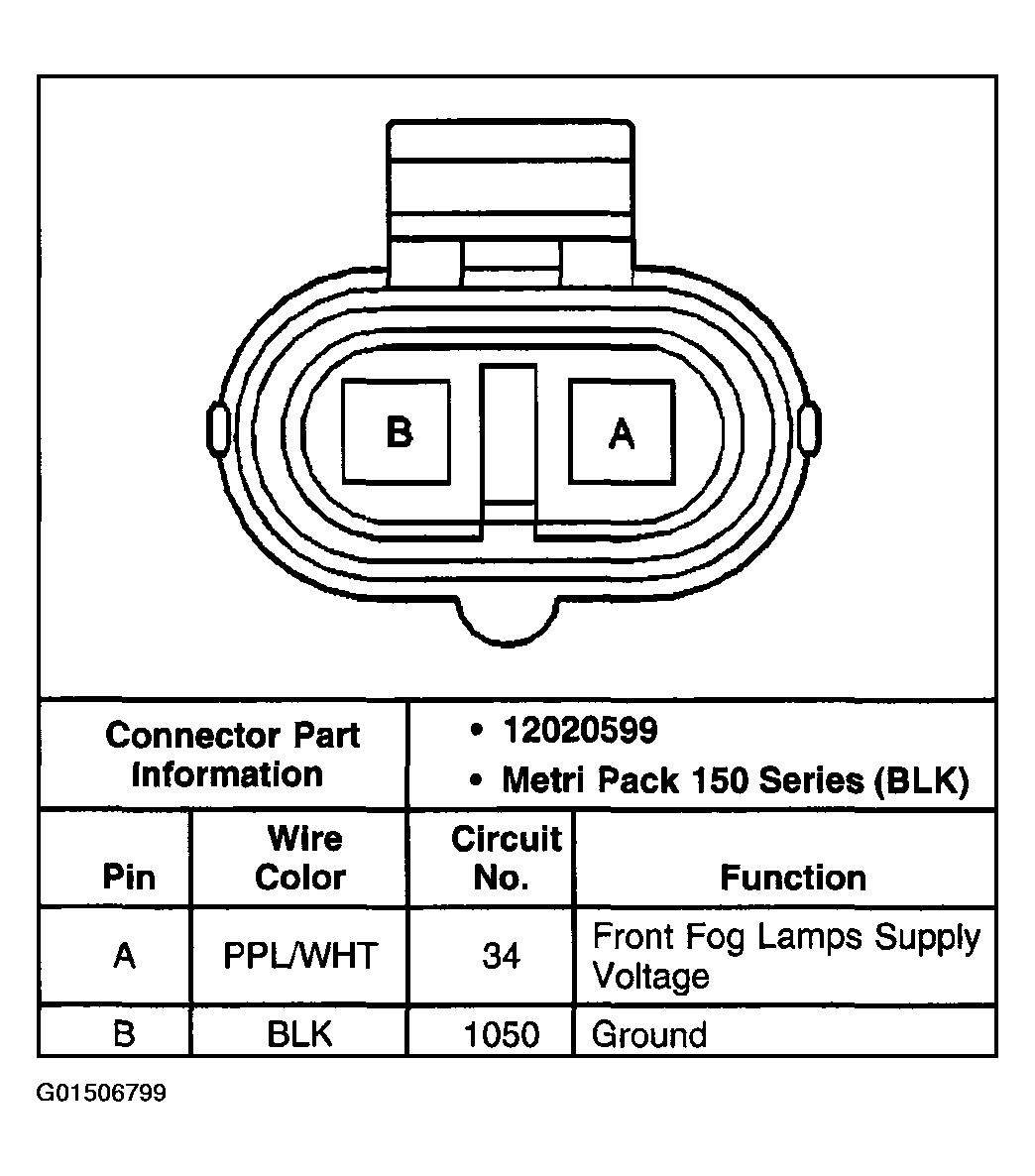

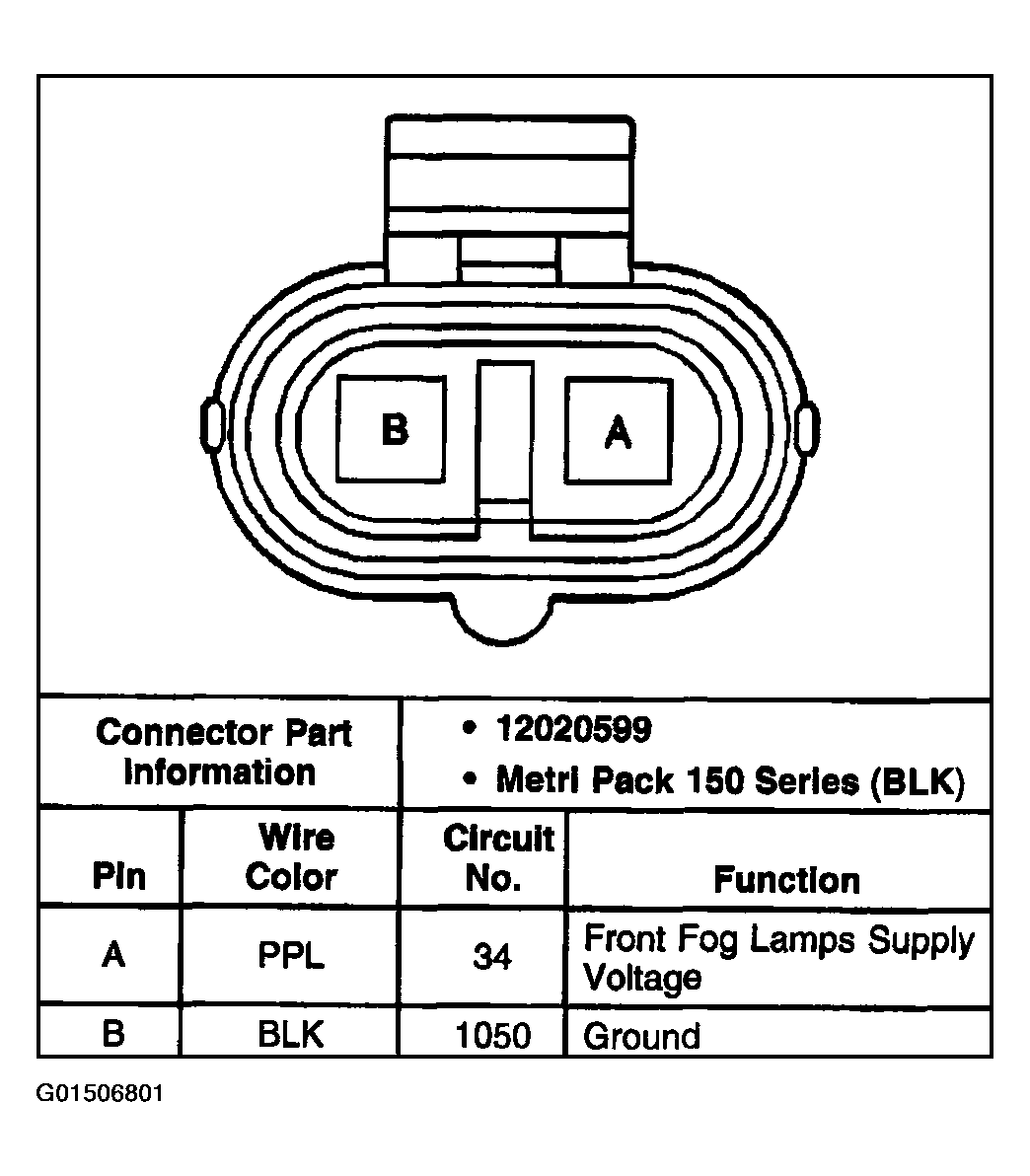

Fig 11: Identifying Fog Lamp Connector Terminals - LF
Courtesy of GENERAL MOTORS CORP.

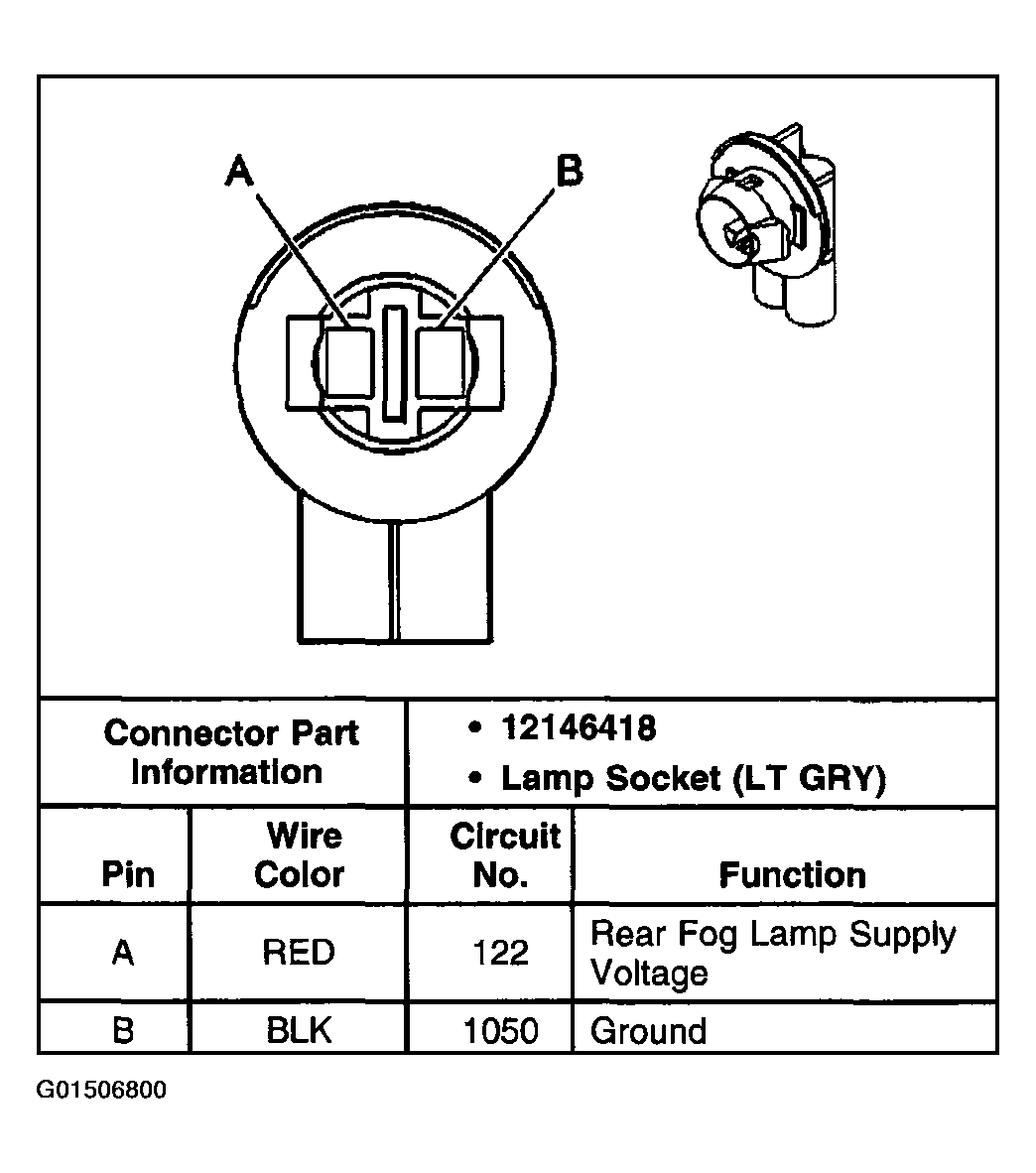

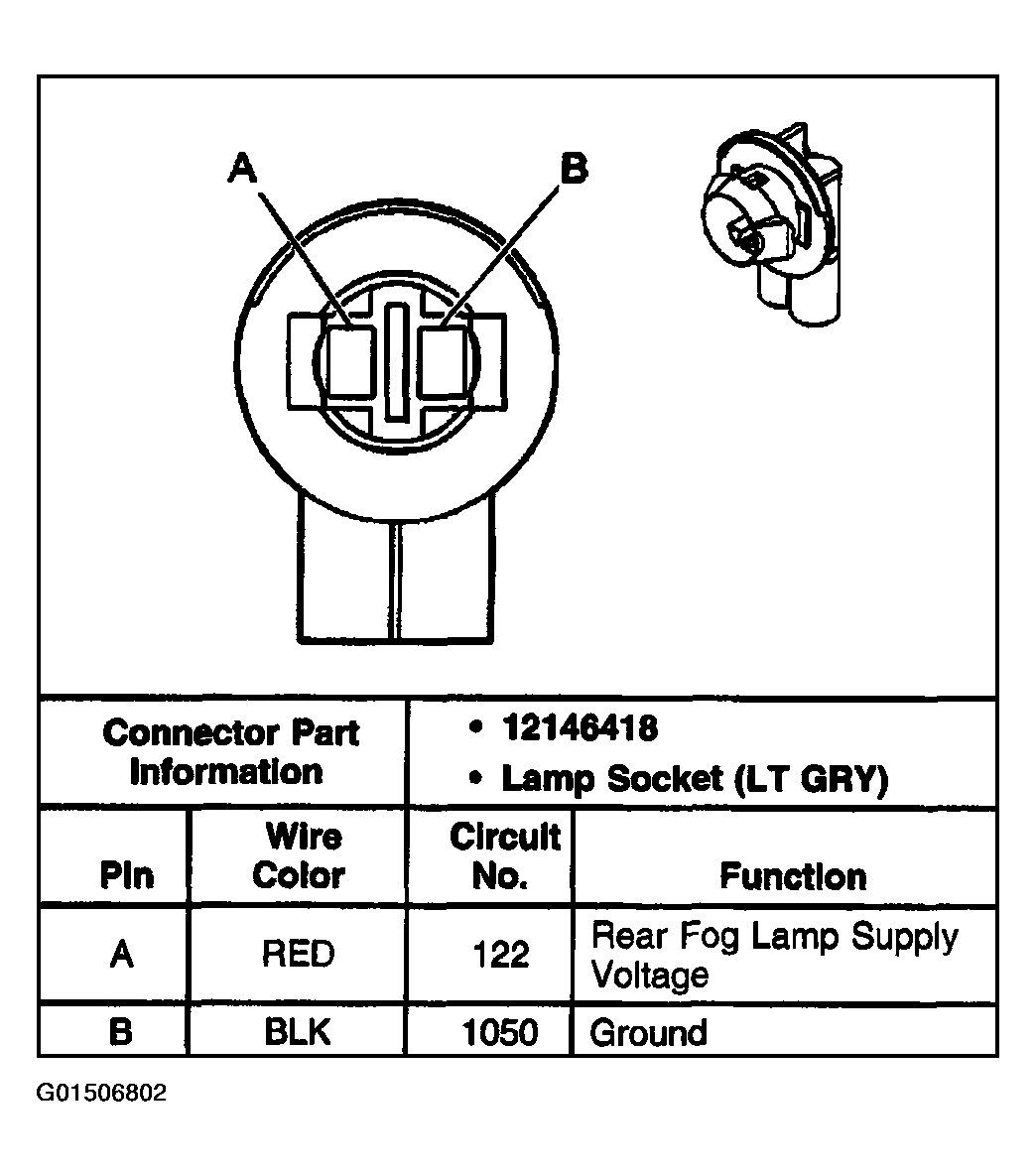

Fig 12: Identifying Fog Lamp Connector Terminals - LR
Courtesy of GENERAL MOTORS CORP.
Fig 13: Identifying Fog Lamp Connector Terminals - RF
Courtesy of GENERAL MOTORS CORP.
Fig 14: Identifying Fog Lamp Connector Terminals - RR
Courtesy of GENERAL MOTORS CORP.

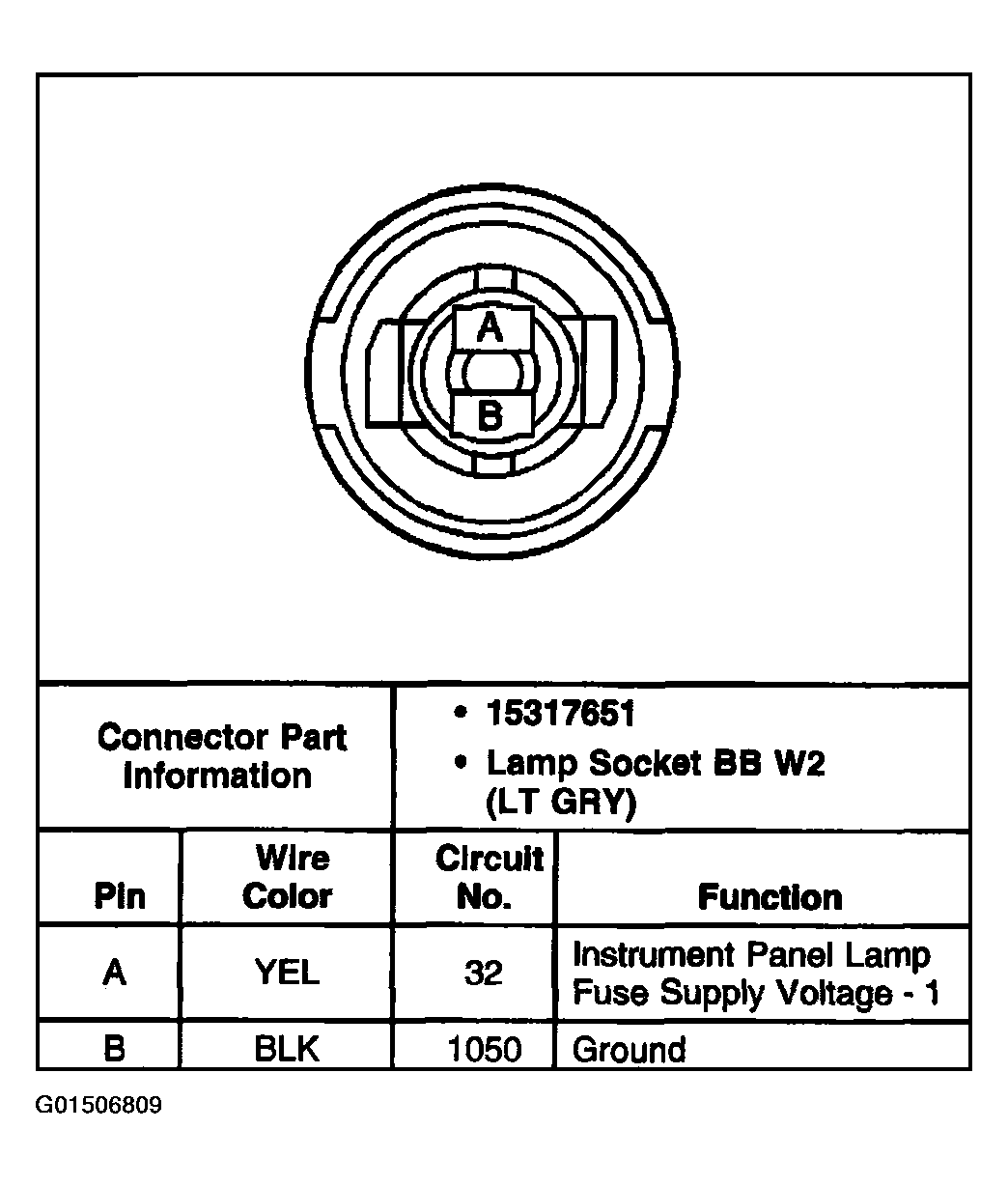

Fig 15: Identifying Footwell Courtesy Lamp Connector Terminals - Left
Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying Footwell Courtesy Lamp Connector Terminals - Right
Courtesy of GENERAL MOTORS CORP.

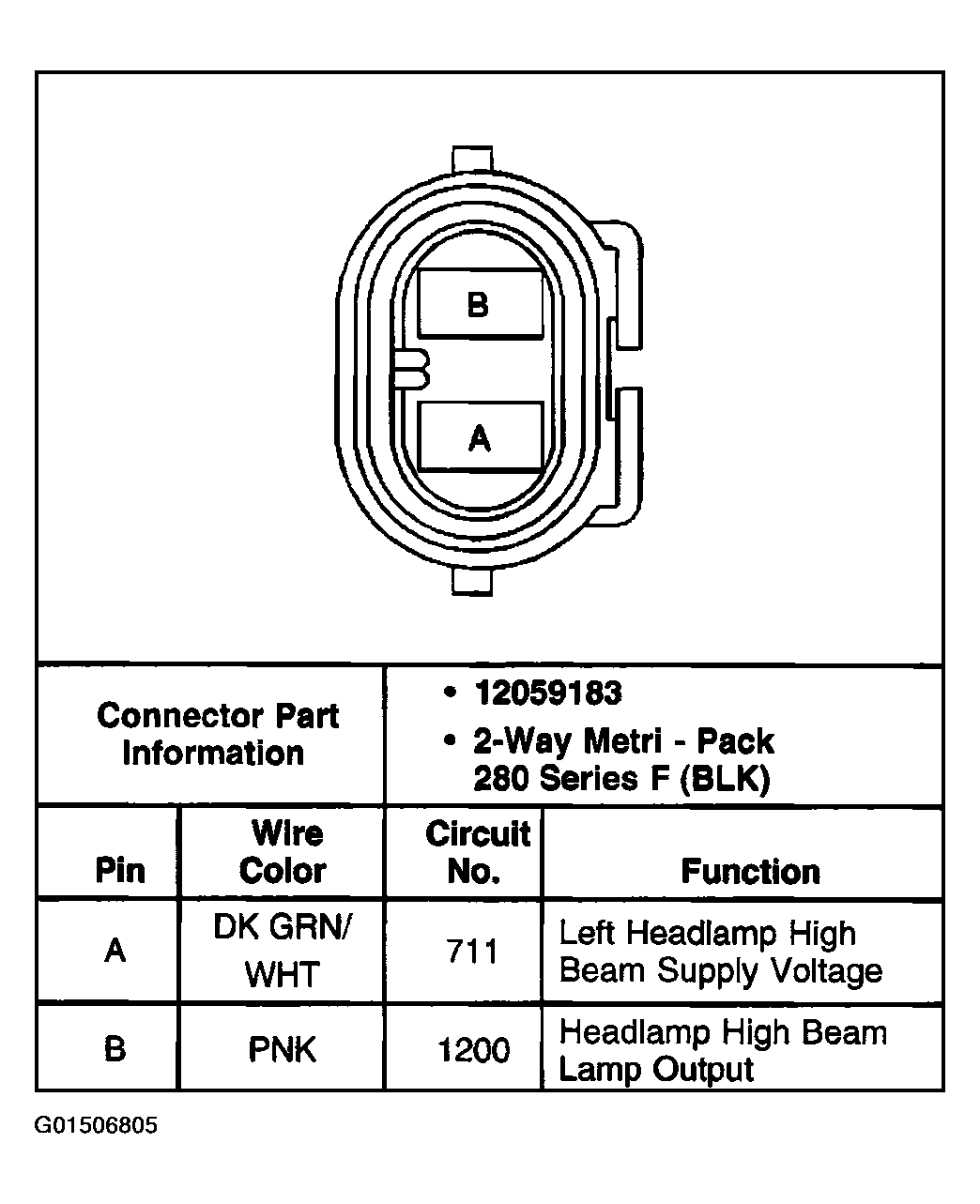

Fig 17: Identifying Headlamp - High Beam Connector Terminals - Left
Courtesy of GENERAL MOTORS CORP.

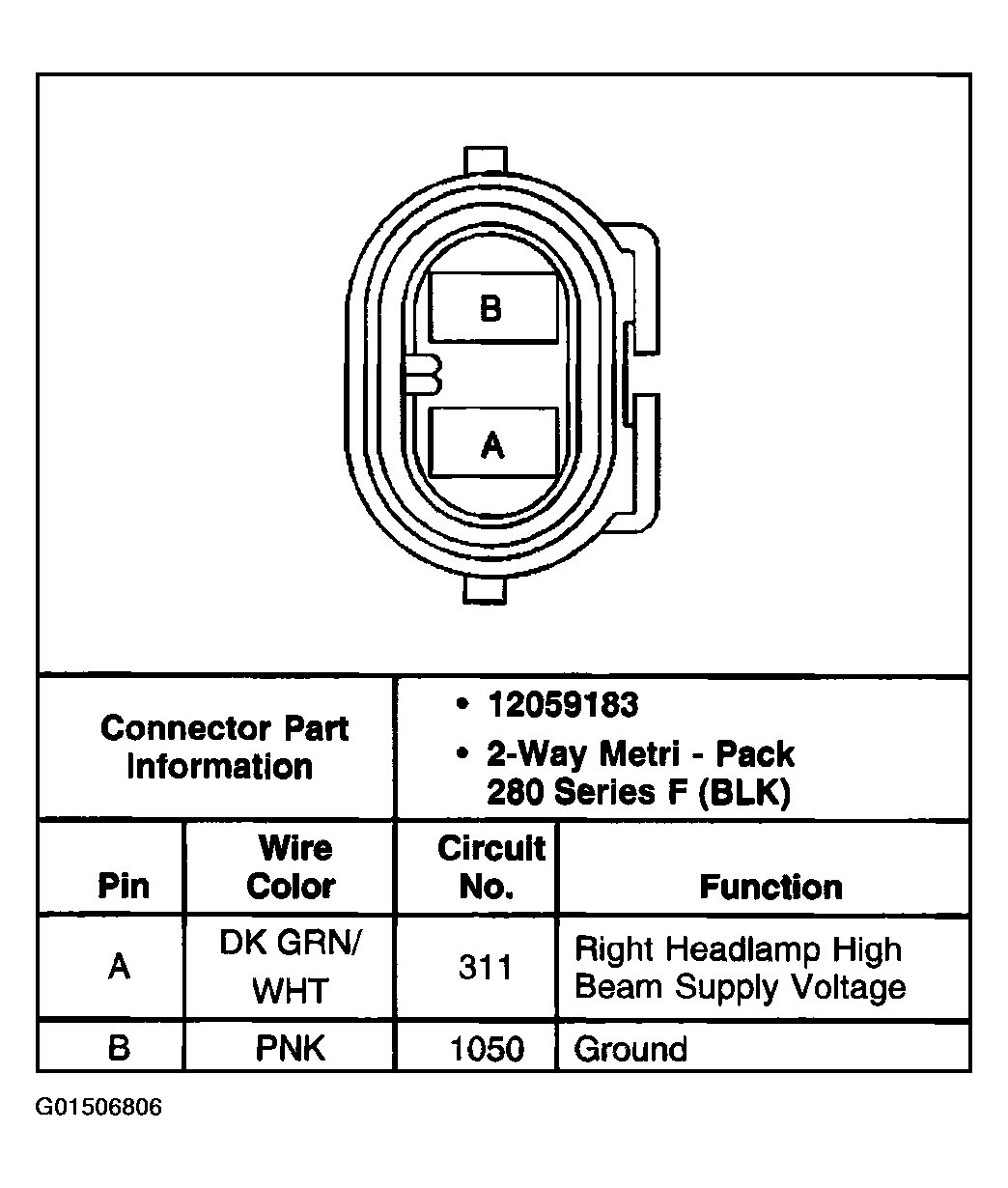

Fig 18: Identifying Headlamp - High Beam Connector Terminals - Right
Courtesy of GENERAL MOTORS CORP.

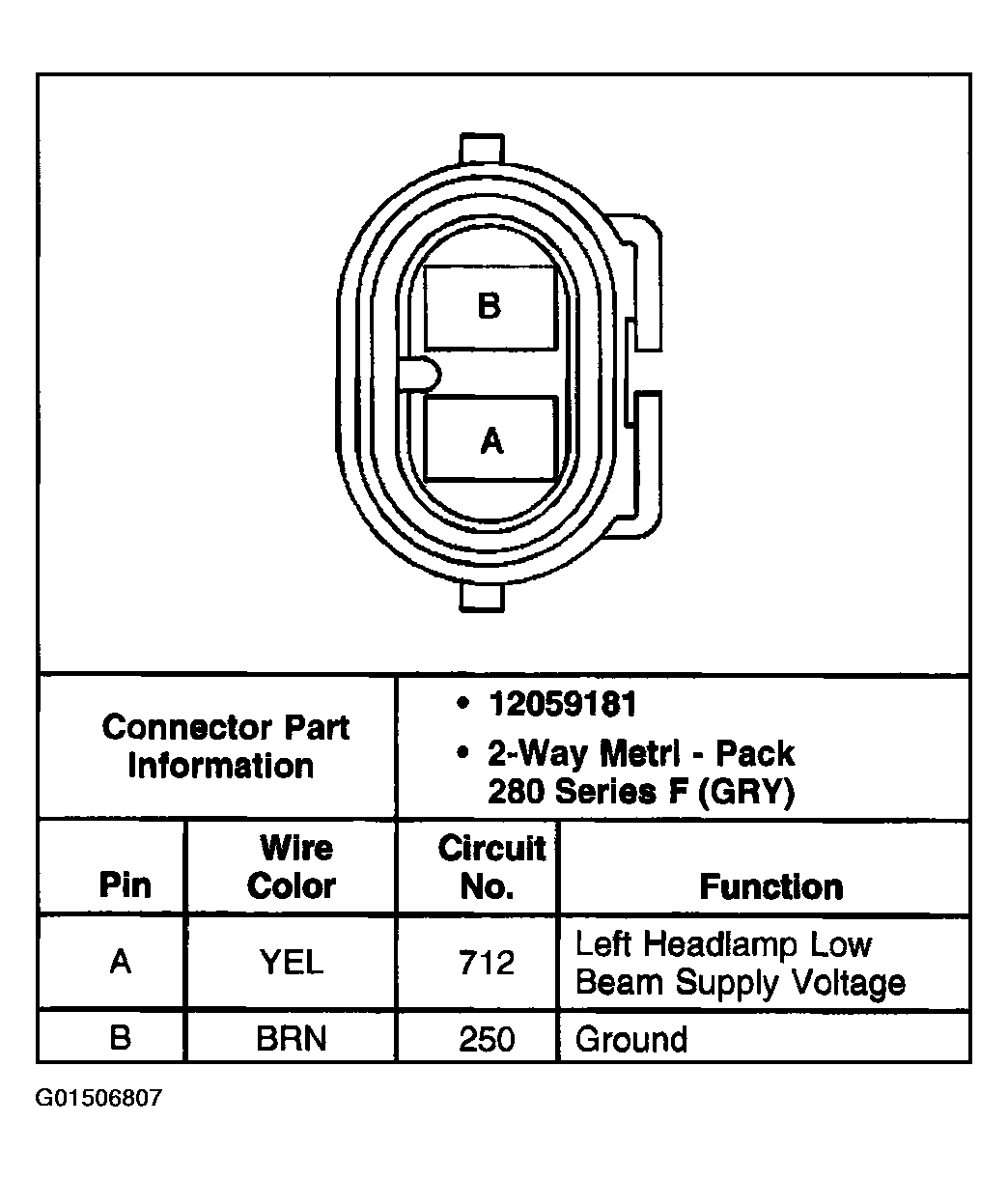

Fig 19: Identifying Headlamp - Low Beam Connector Terminals - Left
Courtesy of GENERAL MOTORS CORP.

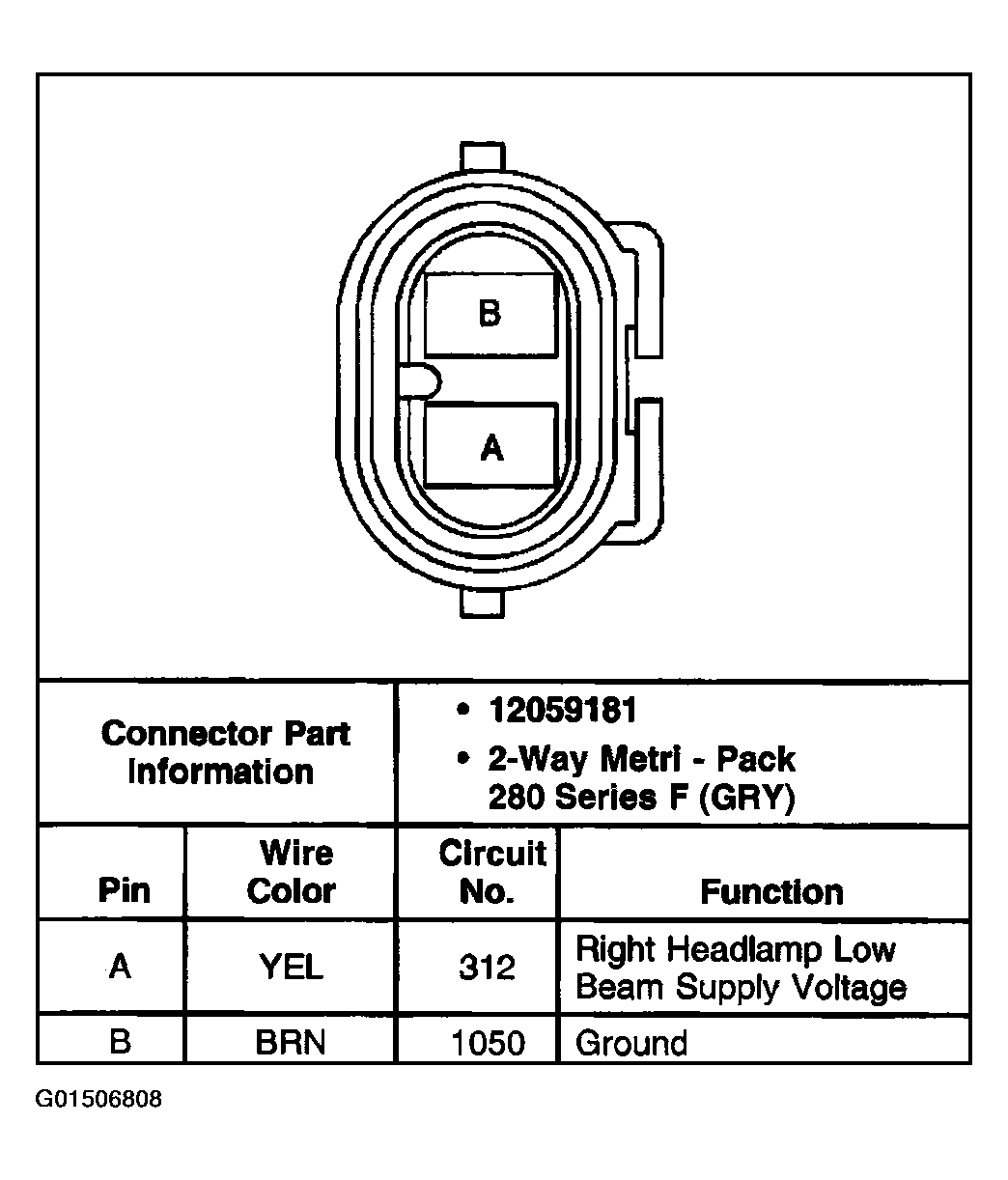

Fig 20: Identifying Headlamp - Low Beam Connector Terminals - Right
Courtesy of GENERAL MOTORS CORP.
Fig 21: Identifying License Lamp Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 22: Identifying Marker Lamp Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 23: Identifying Marker Lamp Connector Terminals
Courtesy of GENERAL MOTORS CORP.

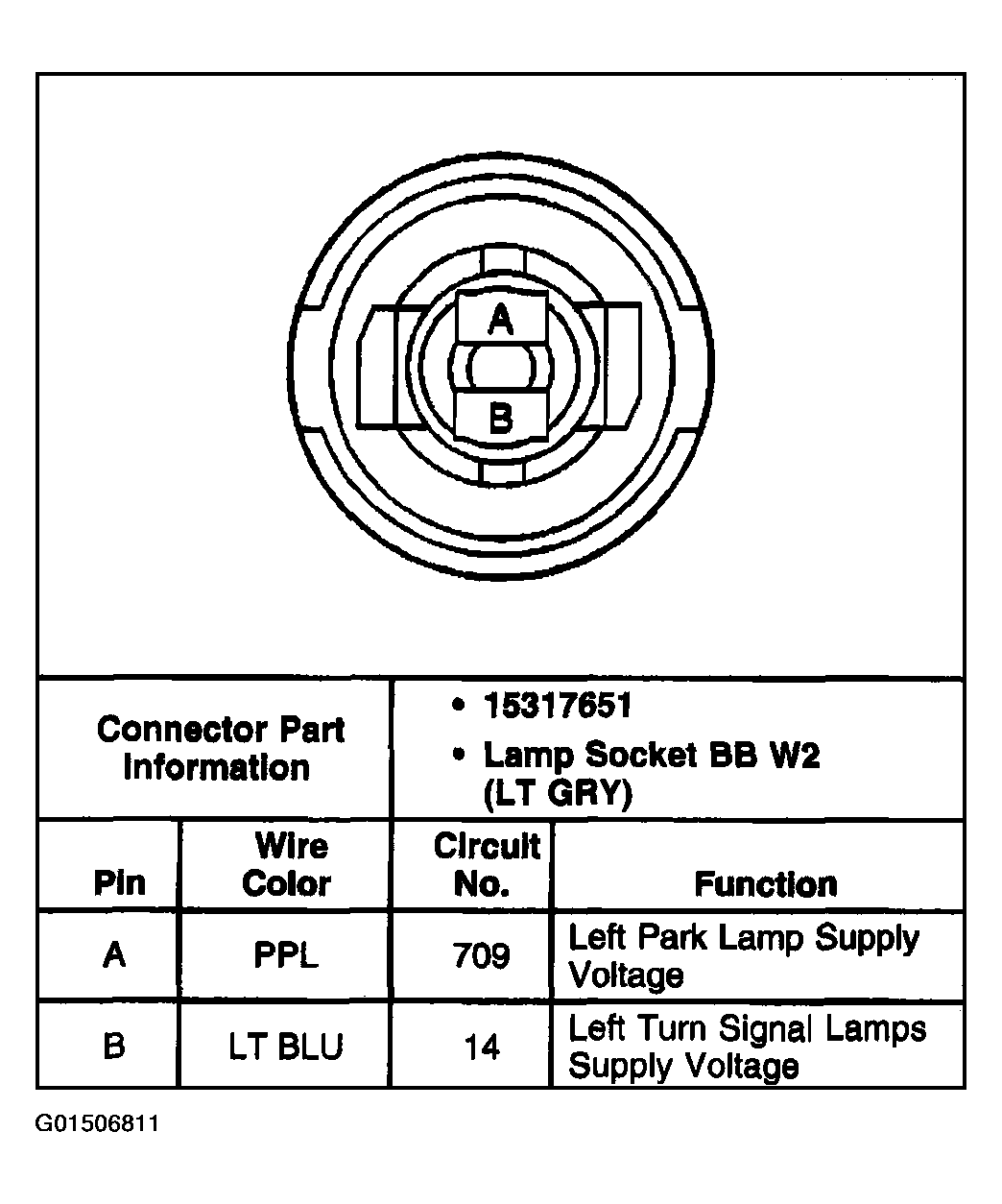

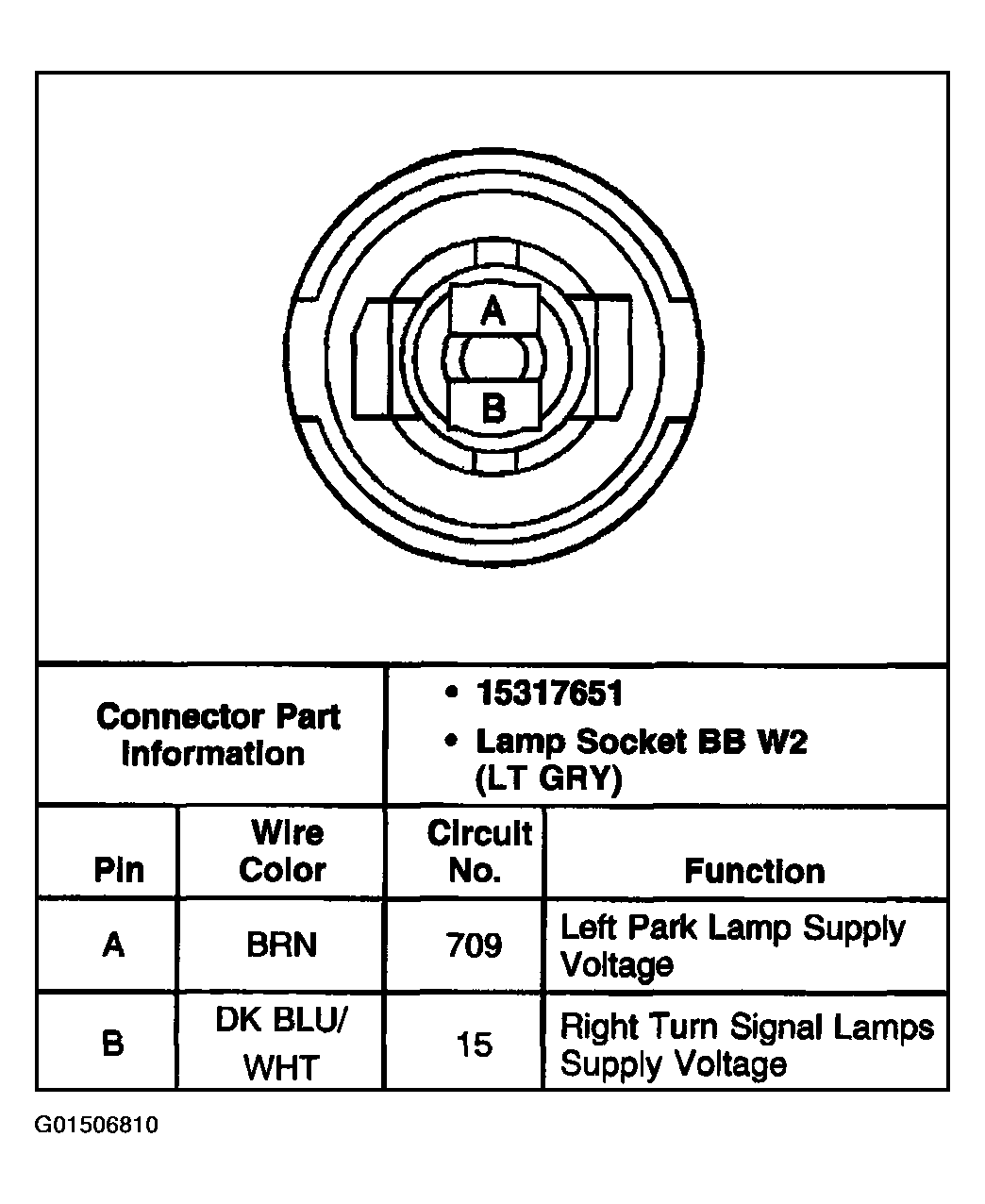

Fig 24: Identifying Park/Turn Signal Lamp Connector Terminals - LF
Courtesy of GENERAL MOTORS CORP.
Fig 25: Identifying Park/Turn Signal Lamp Connector Terminals - RF
Courtesy of GENERAL MOTORS CORP.

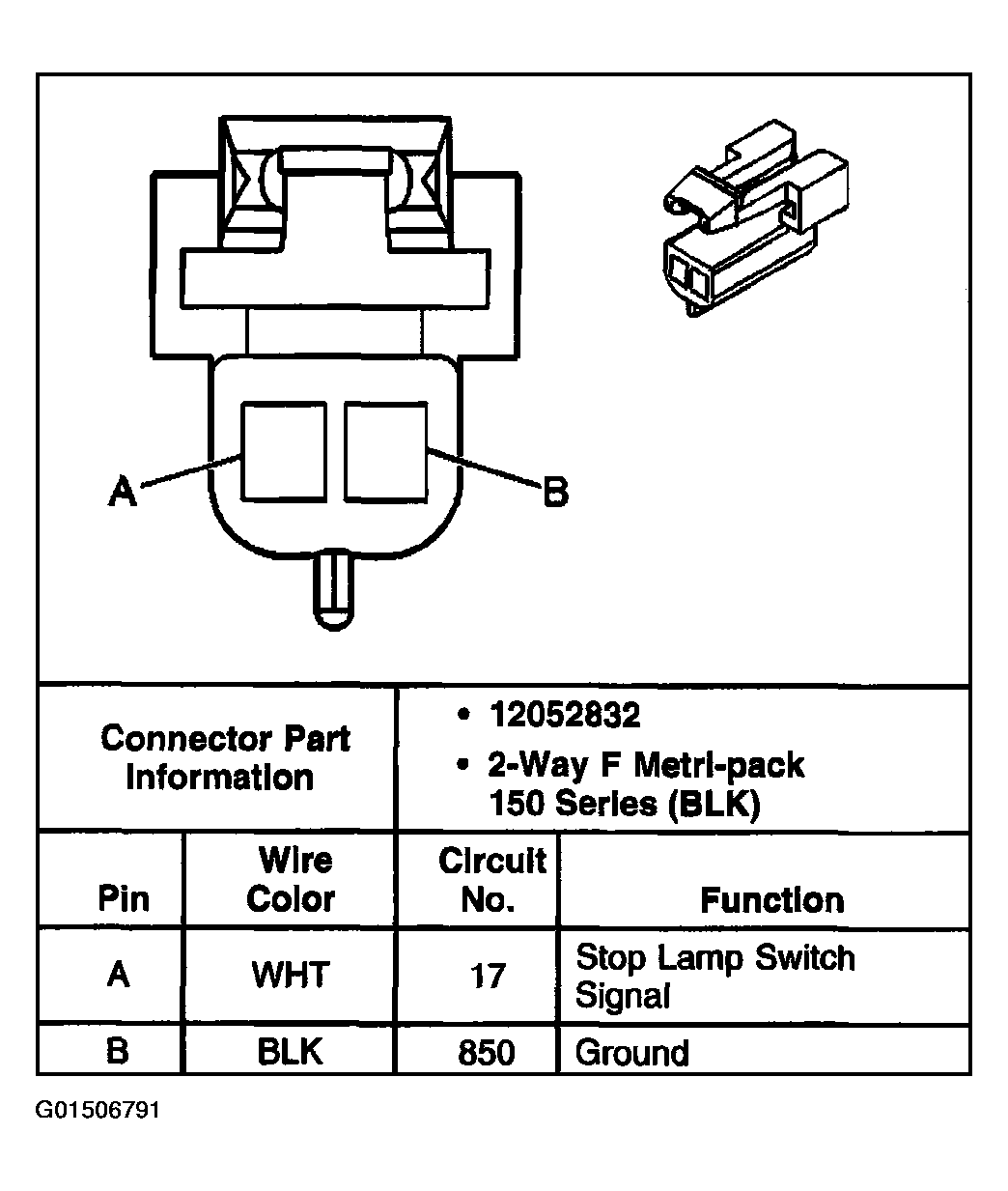

Fig 26: Identifying Stop Lamp Switch C1 Connector Terminals
Courtesy of GENERAL MOTORS CORP.

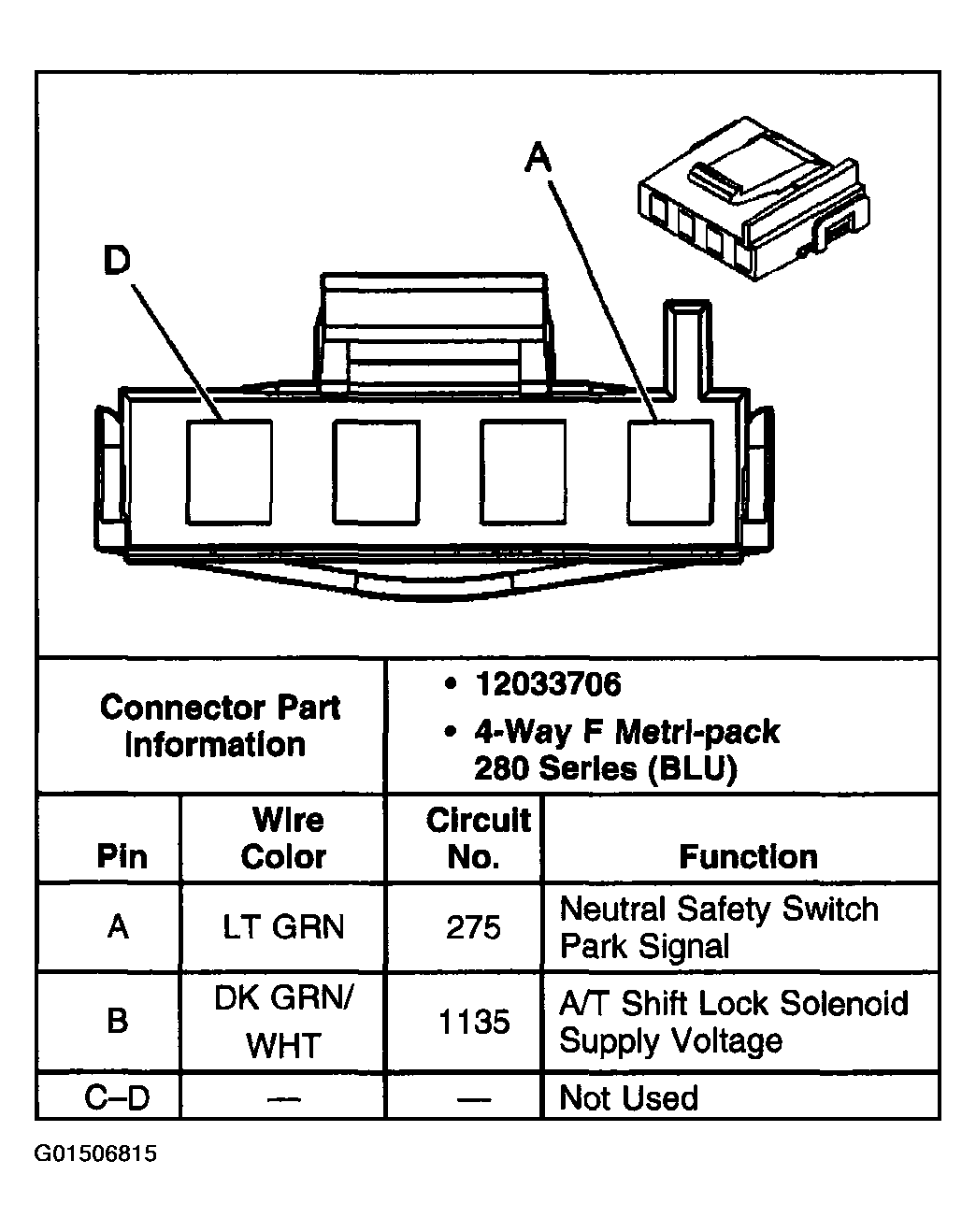

Fig 27: Identifying Stop Lamp Switch C2 Connector Terminals
Courtesy of GENERAL MOTORS CORP.

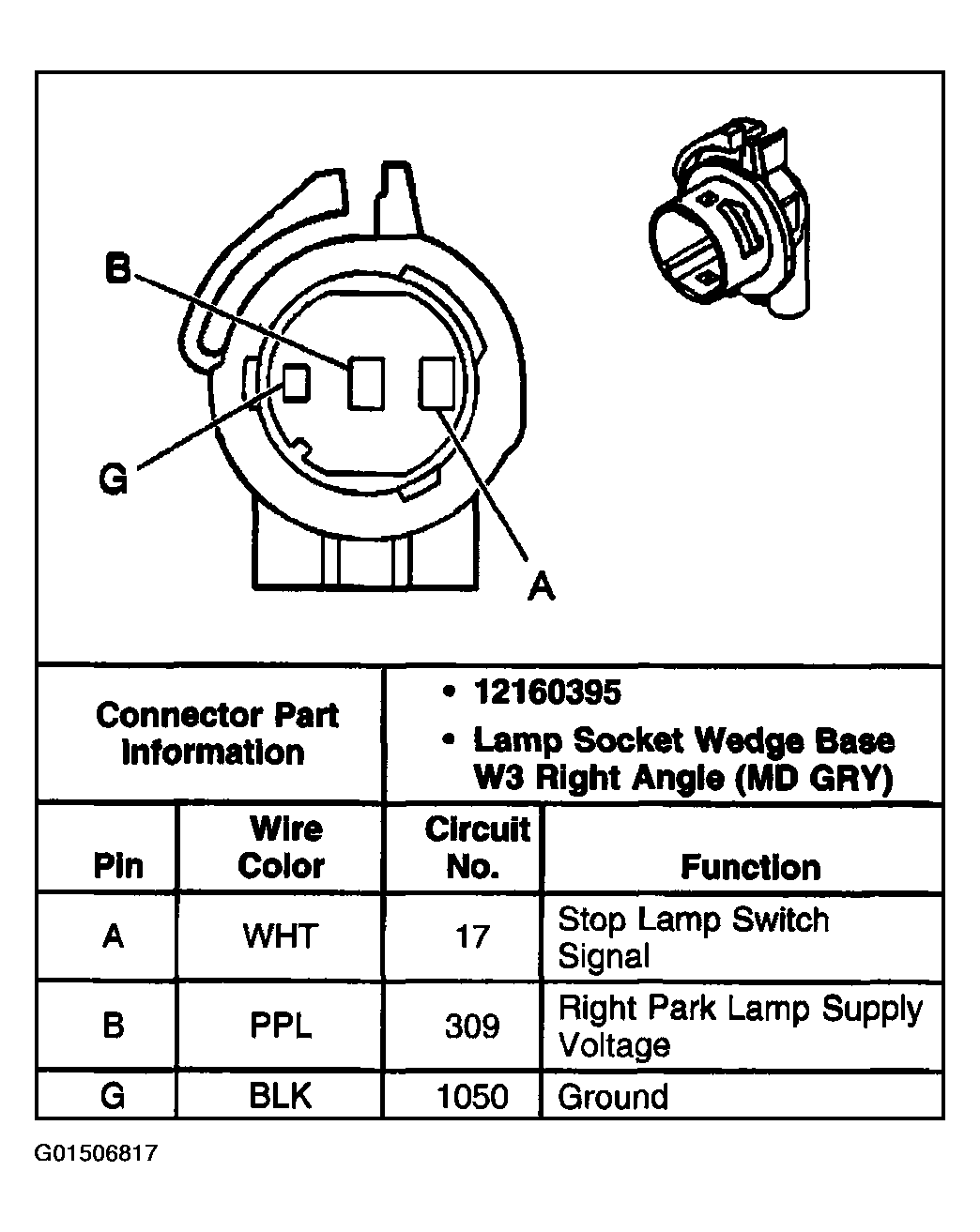

Fig 28: Identifying Tail/Stop Lamp - Left Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 29: Identifying Tail/Stop Lamp Connector Terminals - Right
Courtesy of GENERAL MOTORS CORP.
Fig 30: Identifying Turn Signal/Hazard Flasher Module Connector Terminals
Courtesy of GENERAL MOTORS CORP.

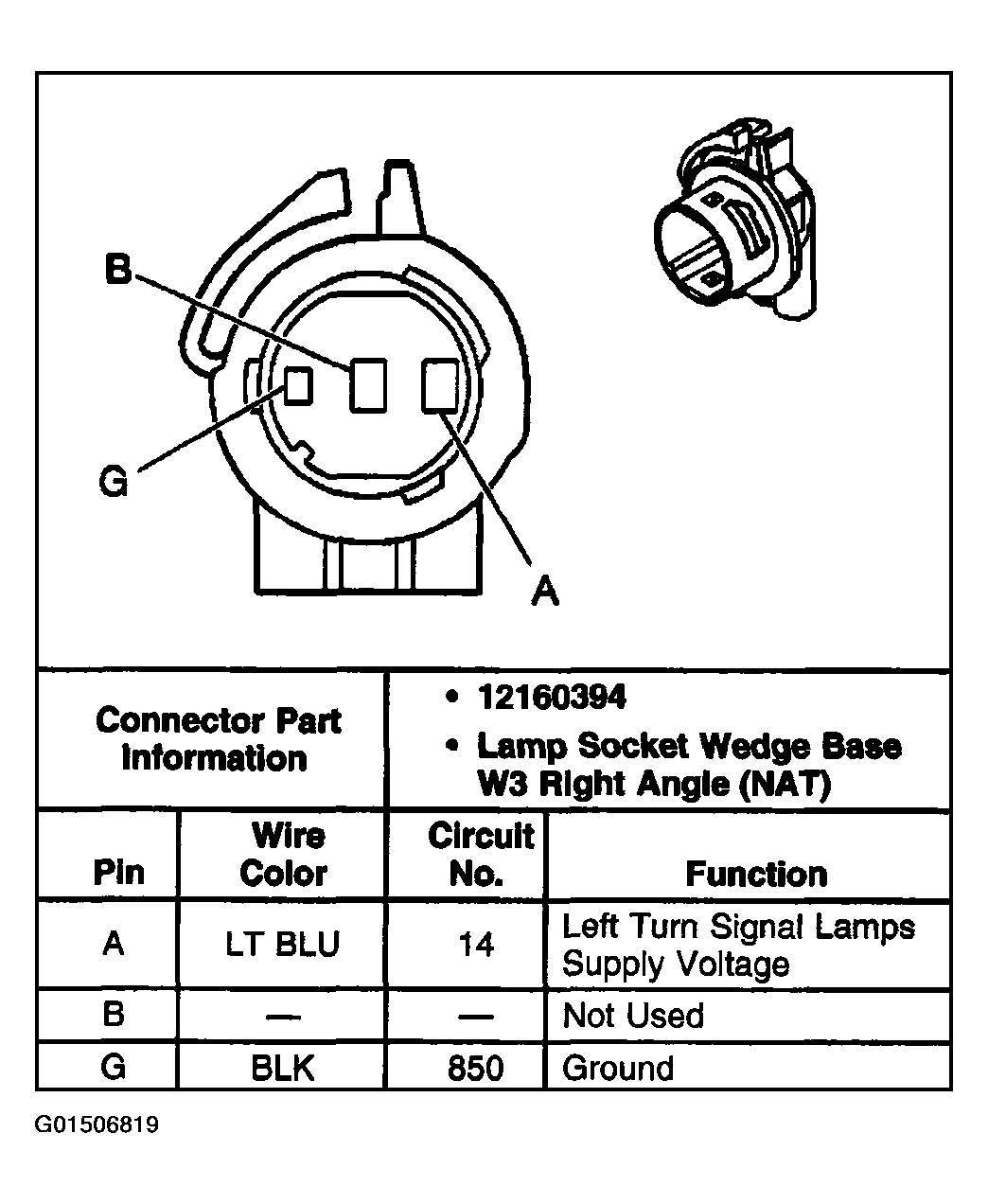

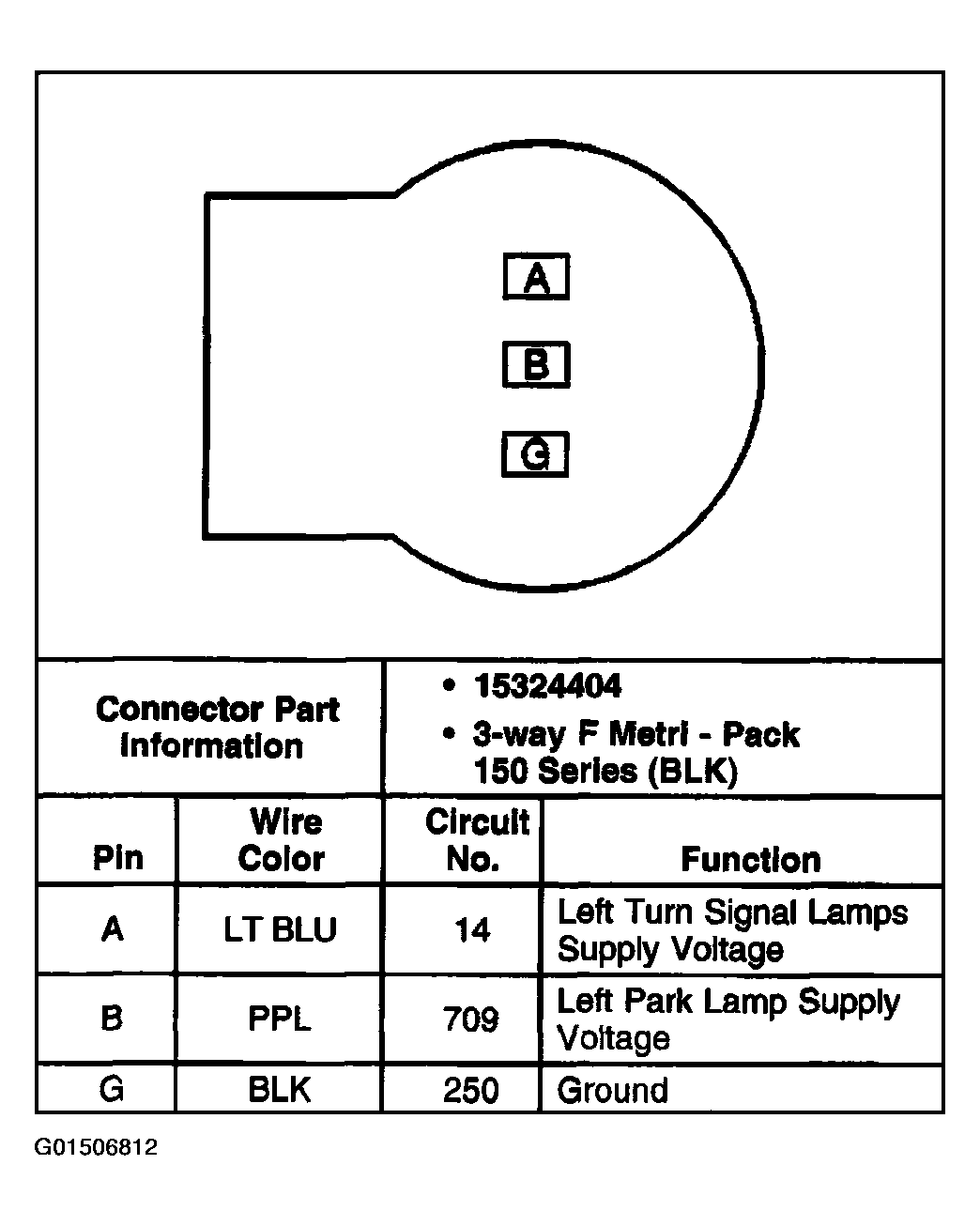

Fig 31: Identifying Turn Signal Lamp Connector Terminals - LR
Courtesy of GENERAL MOTORS CORP.

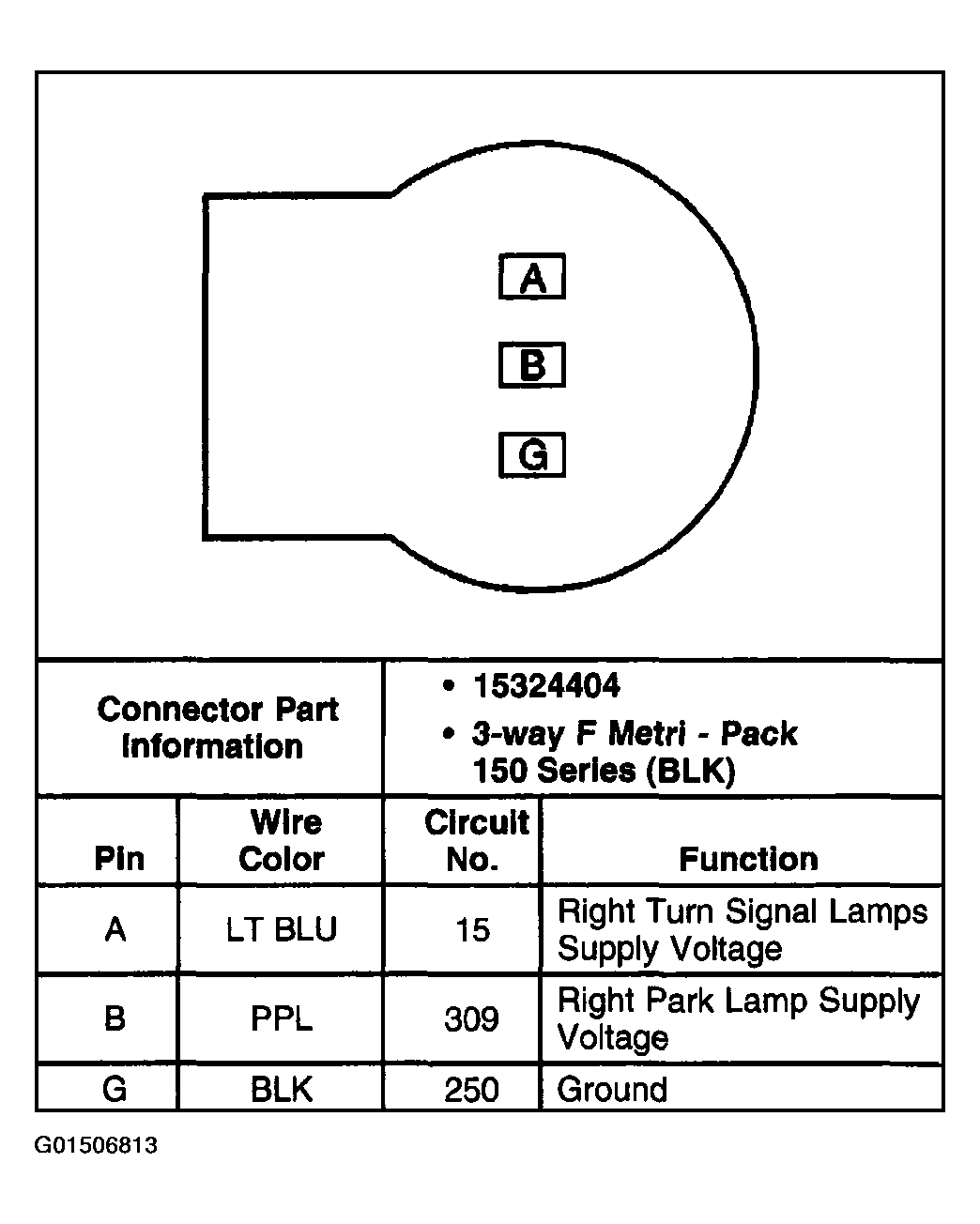

Fig 32: Identifying Turn Signal Lamp Connector Terminals - RR
Courtesy of GENERAL MOTORS CORP.
