Wiper/Washer System Connector End Views

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

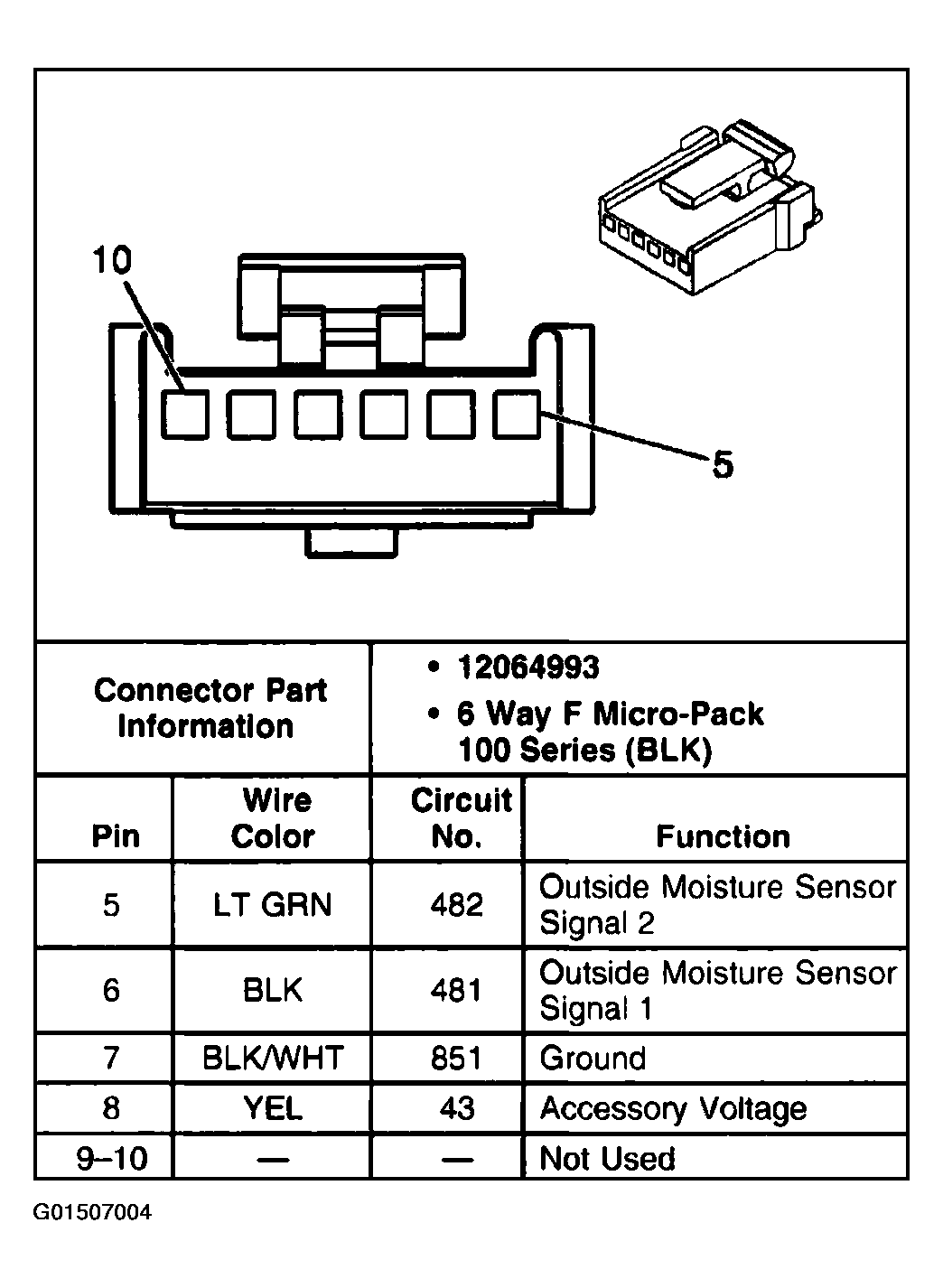

Fig 1: Identifying Outside Moisture Sensor Terminal Connector End View

Courtesy of GENERAL MOTORS CORP.

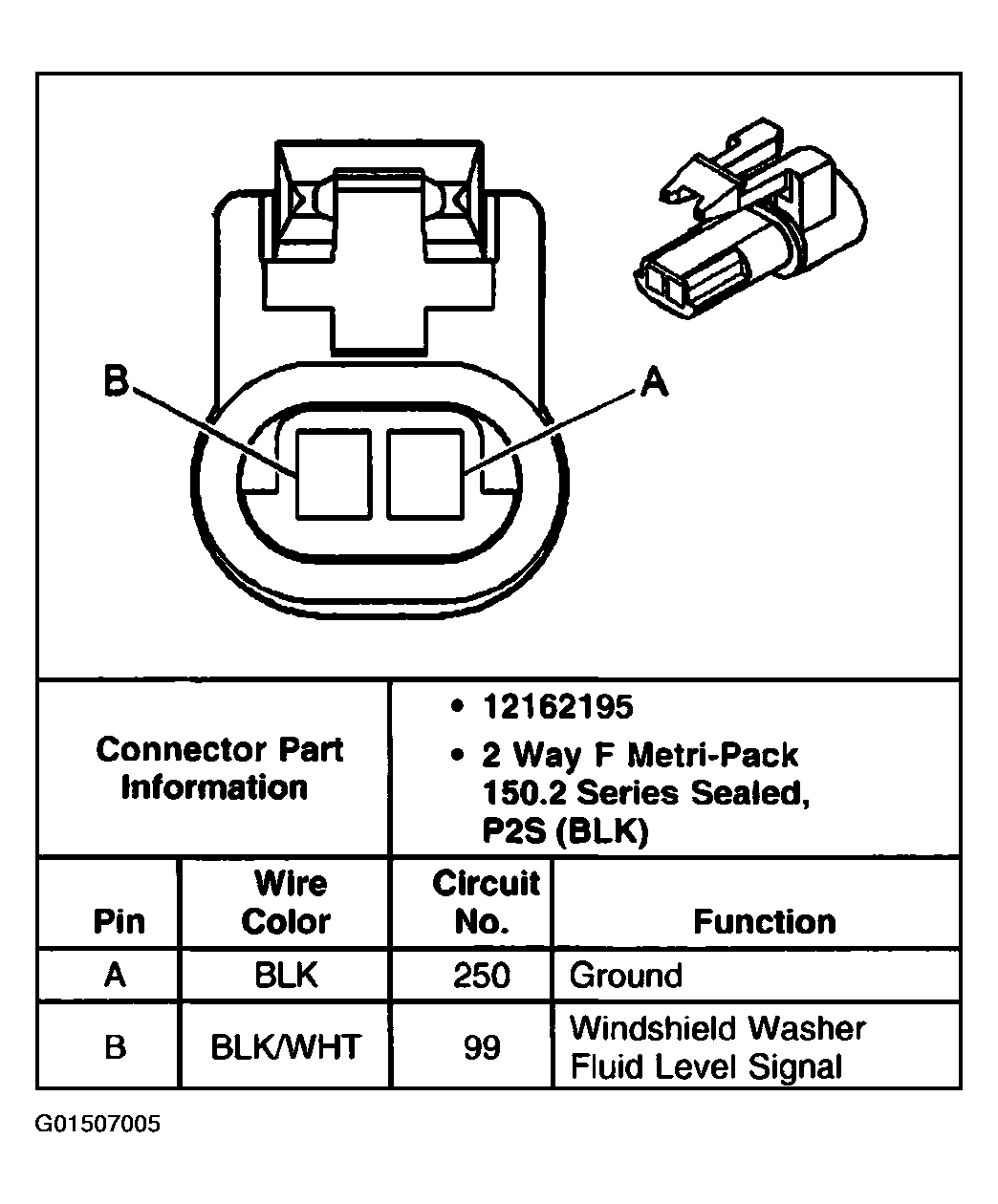

Fig 2: Identifying Windshield Washer Fluid Level Switch Terminal Connector End View

Courtesy of GENERAL MOTORS CORP.

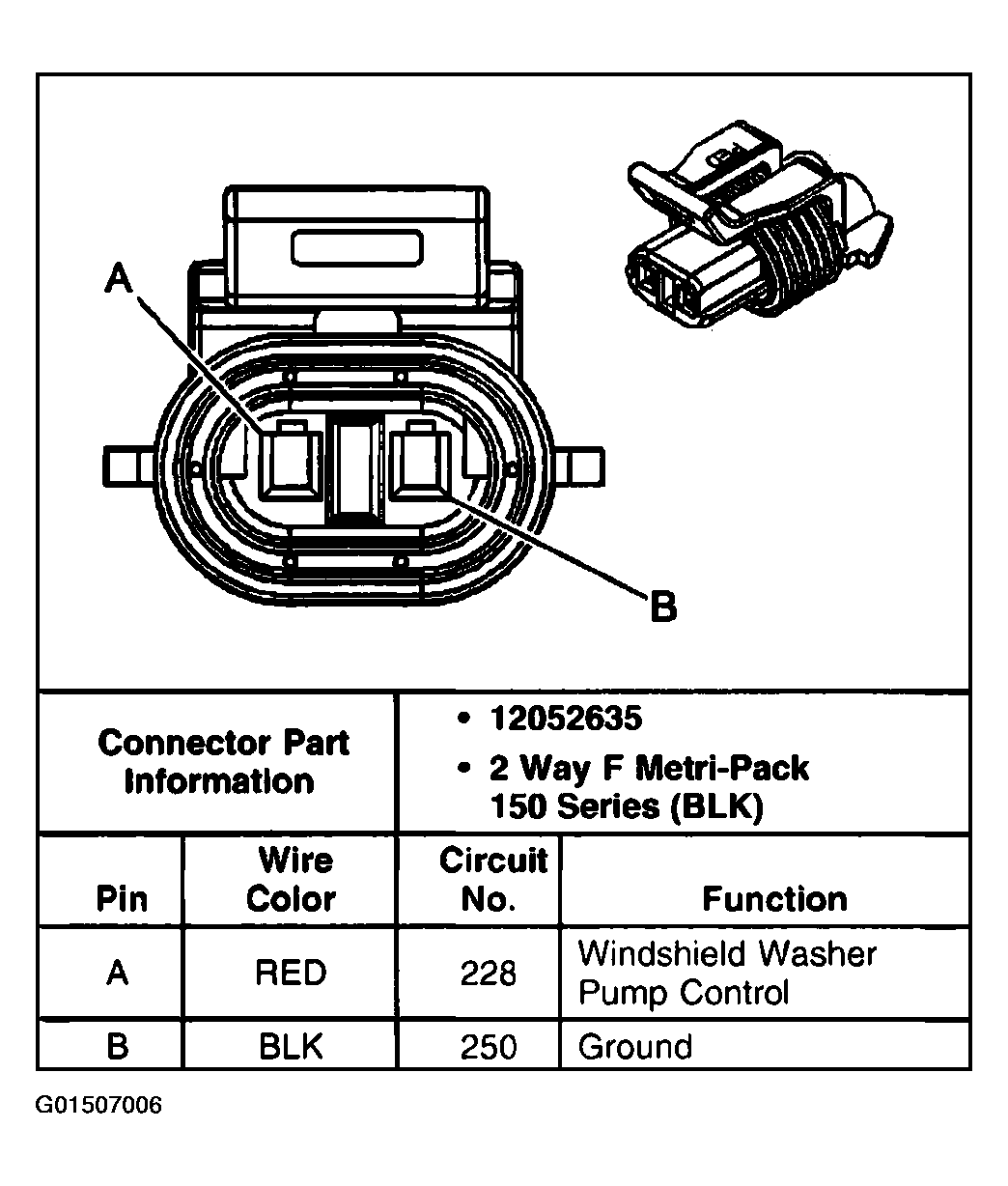

Fig 3: Identifying Windshield Washer Fluid Pump Connector Terminal Connector End View

Courtesy of GENERAL MOTORS CORP.

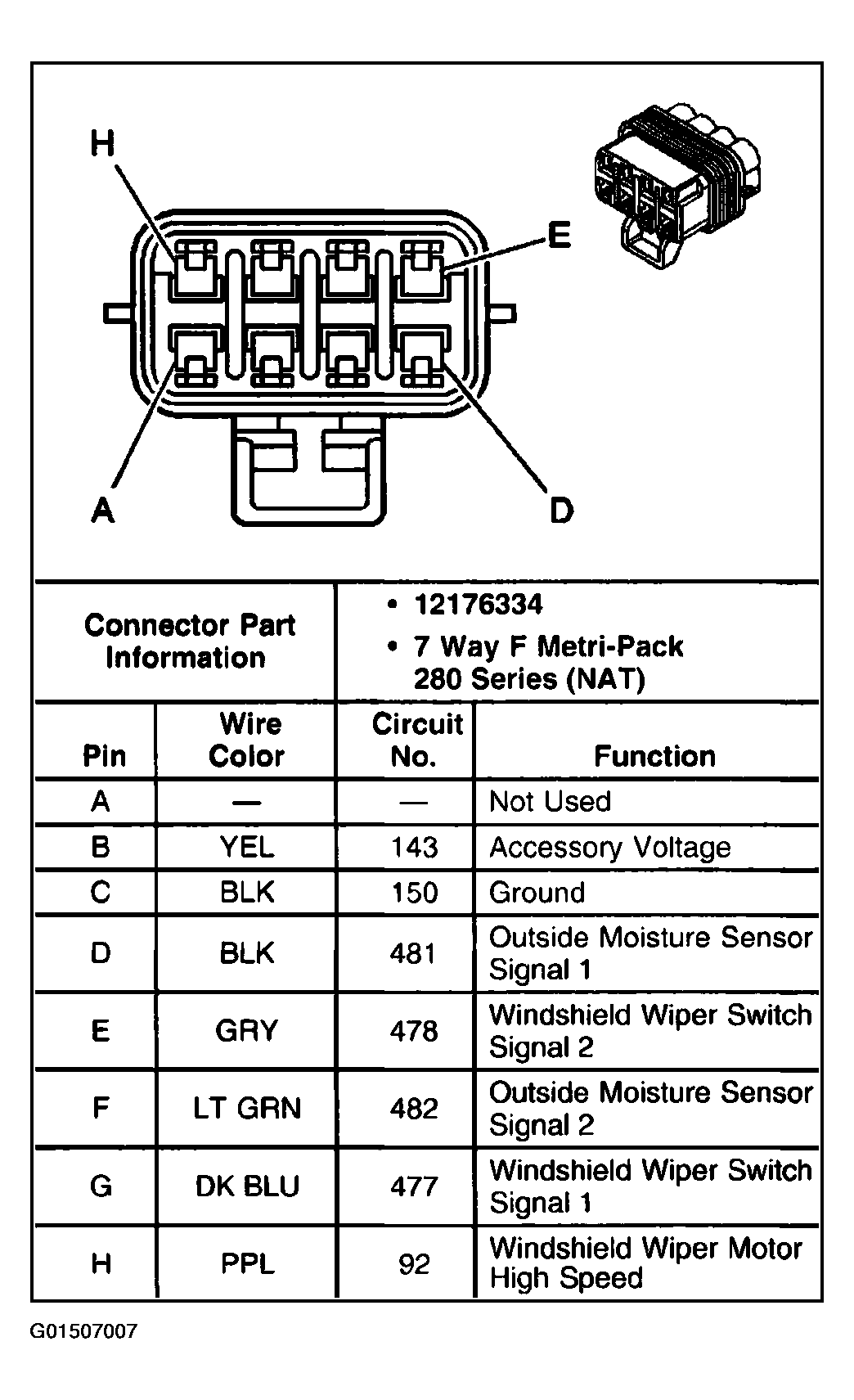

Fig 4: Identifying Windshield Wiper Motor Connector Terminal Connector End View

Courtesy of GENERAL MOTORS CORP.
