Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the memory seat module to the bottom of the seat cushion.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

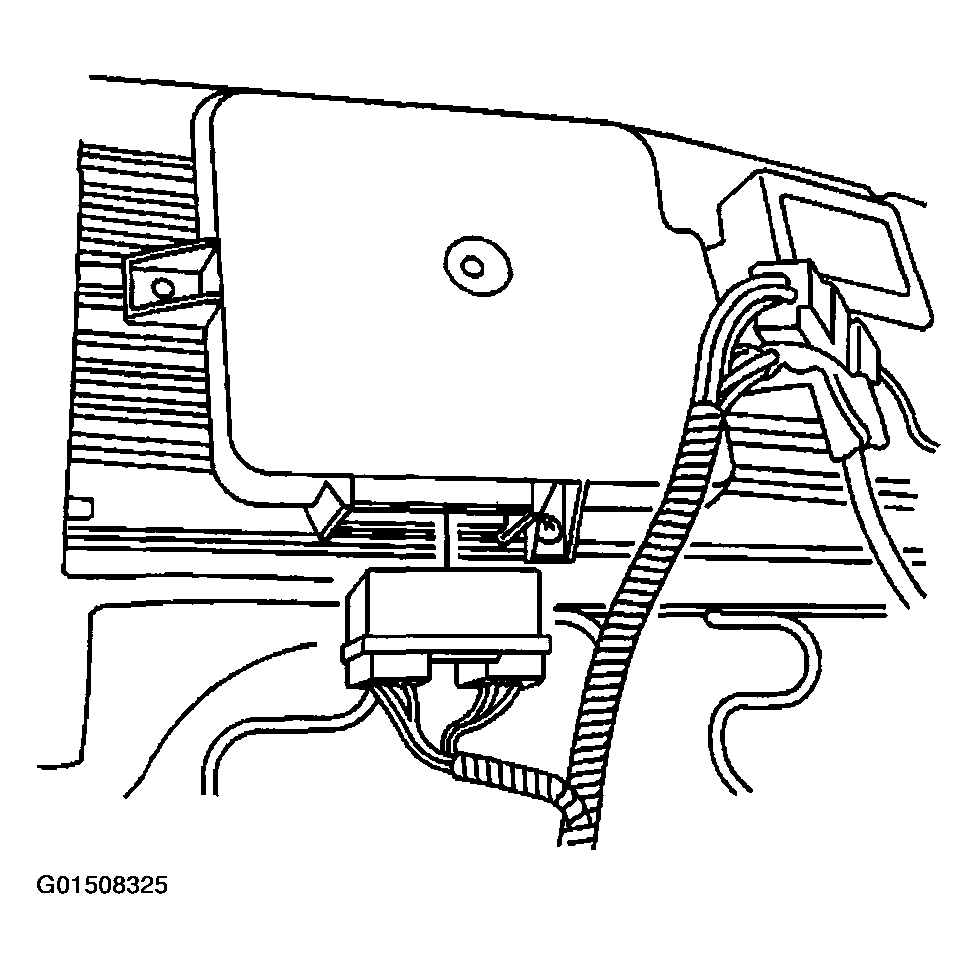

    Fig 1: Installing Memory Seat Control Module
    G01508325Courtesy of GENERAL MOTORS CORP.
  2. Install the memory seat module fasteners.

    Tighten

    Tighten the fasteners to 2 N.m (18 lb in).

  3. Install the electrical connectors to the memory seat module.
  4. Ensure the wiring harness is positioned in the same location in which it was removed.
  5. Install the seat cushion. Refer to SEAT CUSHION REPLACEMENT - FRONT  .
  6. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 9 .
