Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Install the cruise control cable ball stud (1) into the slot in the cruise control module actuator strip (2).
Insert the cruise control cable housing into the cruise control module and twist clockwise to secure.

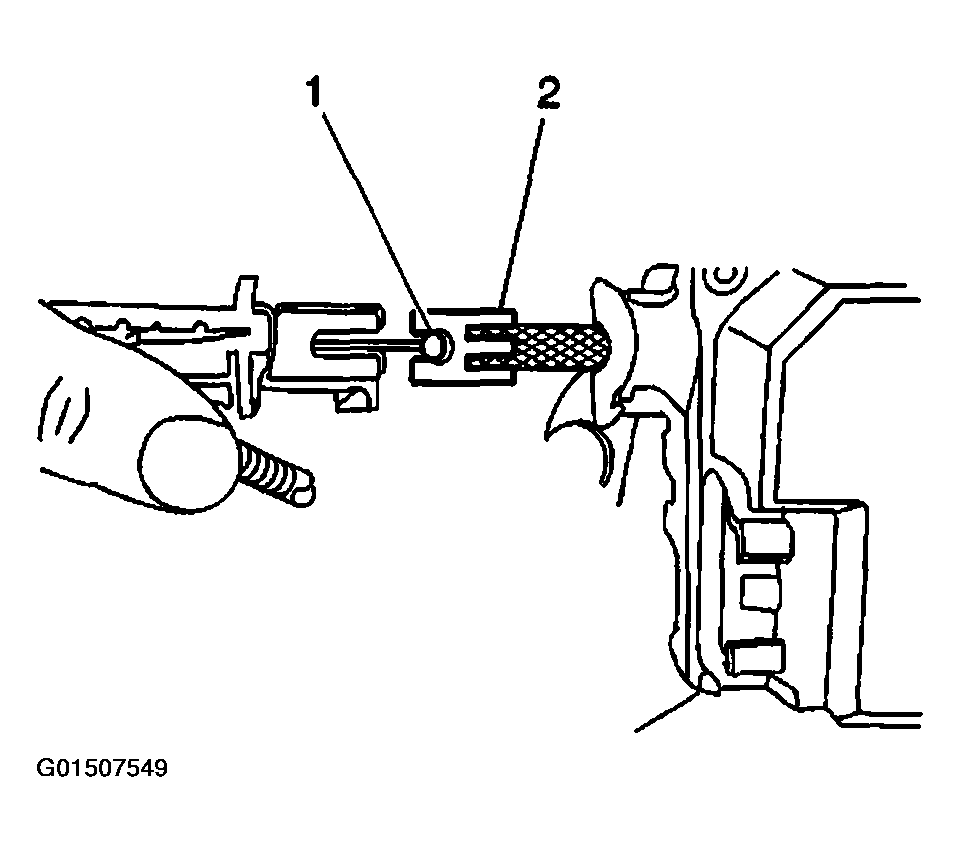

Fig 1: Installing Cruise Control Cable Ball Stud
Courtesy of GENERAL MOTORS CORP.

Important: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to CRUISE CONTROL DESCRIPTION AND OPERATION for the complete operational details.
Connect the cruise control cable to the throttle body cam (1).
Snap the cable clip (3) to the throttle body bracket.

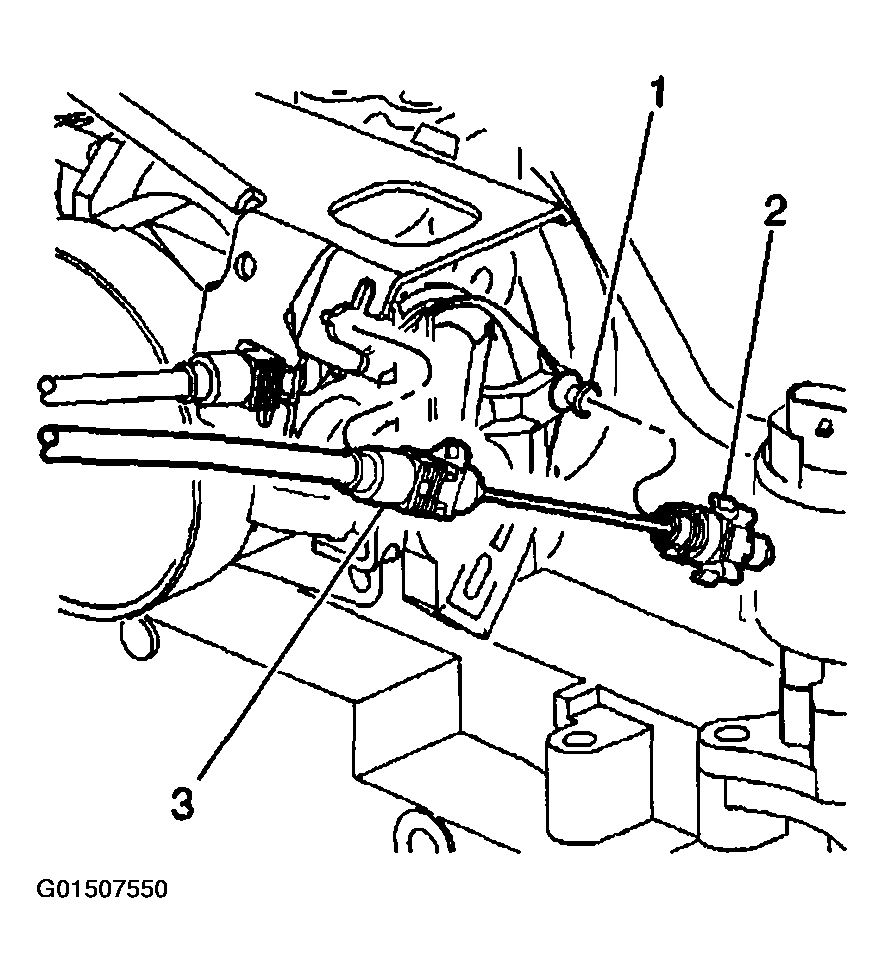

Fig 2: Connecting Cruise Control Cable
Courtesy of GENERAL MOTORS CORP.
Install the cable into the retainers (2).

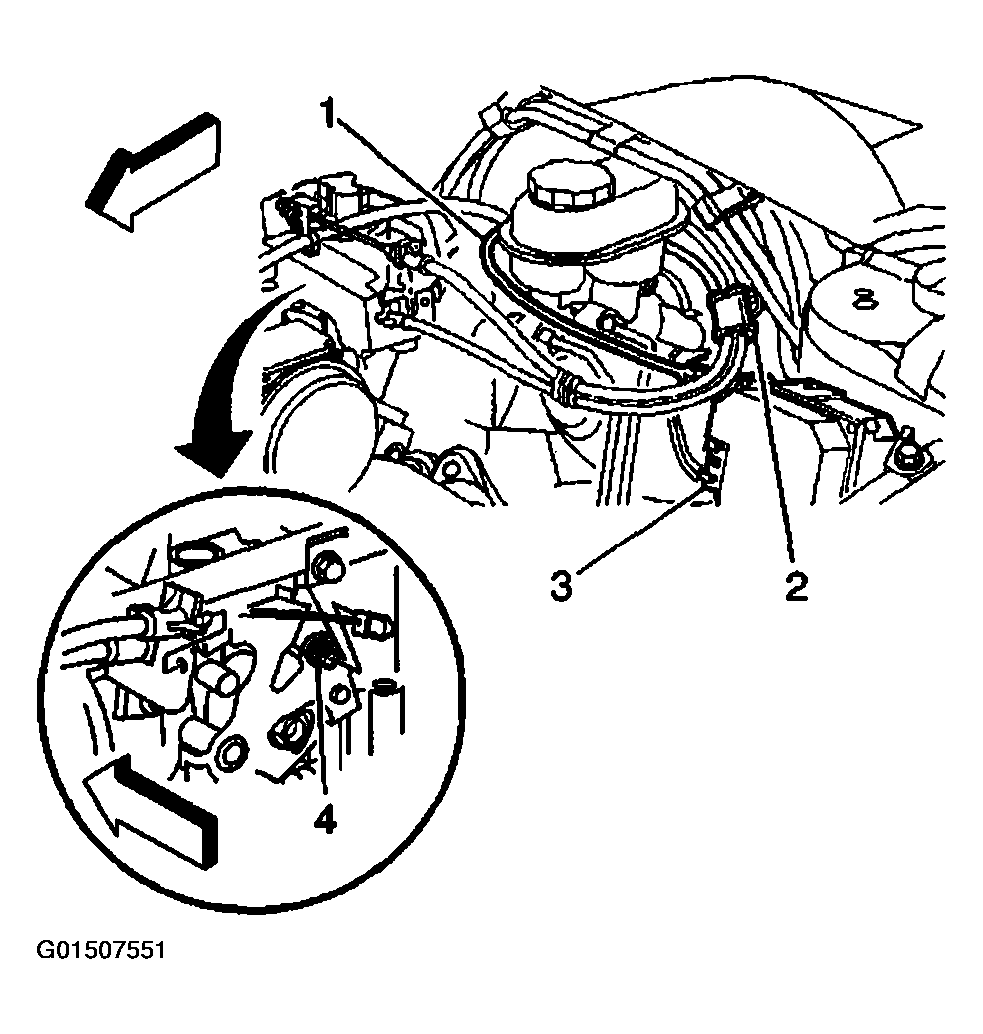

Fig 3: Installing Cable In Retainers
Courtesy of GENERAL MOTORS CORP.
