Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control module (2) to the bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the module to bracket fasteners.

    Tighten

    Tighten the fasteners to 7.5 N.m (66 lb in).

  3. Install the cruise control module and bracket assembly to the vehicle.
  4. Install the module retaining fasteners (1, 3).

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

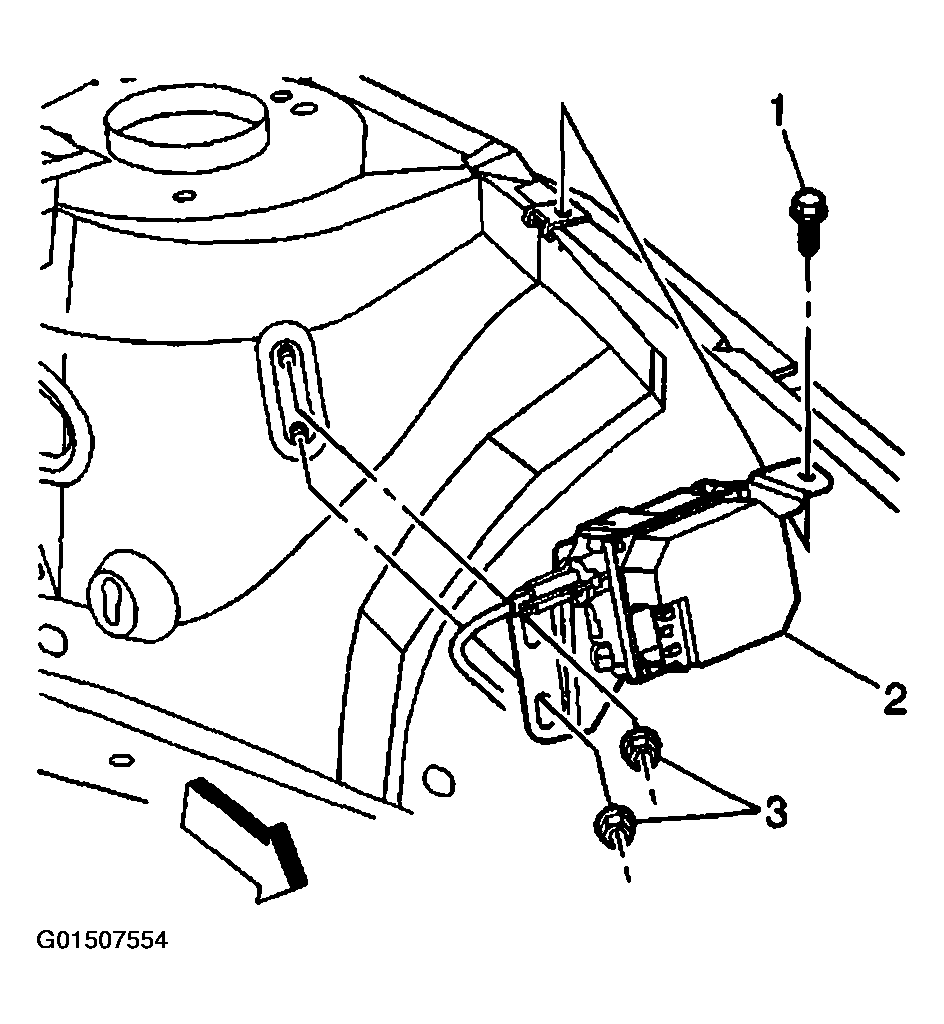

    Fig 1: Installing Module Retaining Fasteners
    G01507554Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector (2) to the cruise control module.

    Important:  The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to CRUISE CONTROL DESCRIPTION AND OPERATION  for the complete operational details.

  6. Install the cruise control cable. Refer to CRUISE CONTROL CABLE REPLACEMENT (L47)  .
  7. Inspect the component operation.

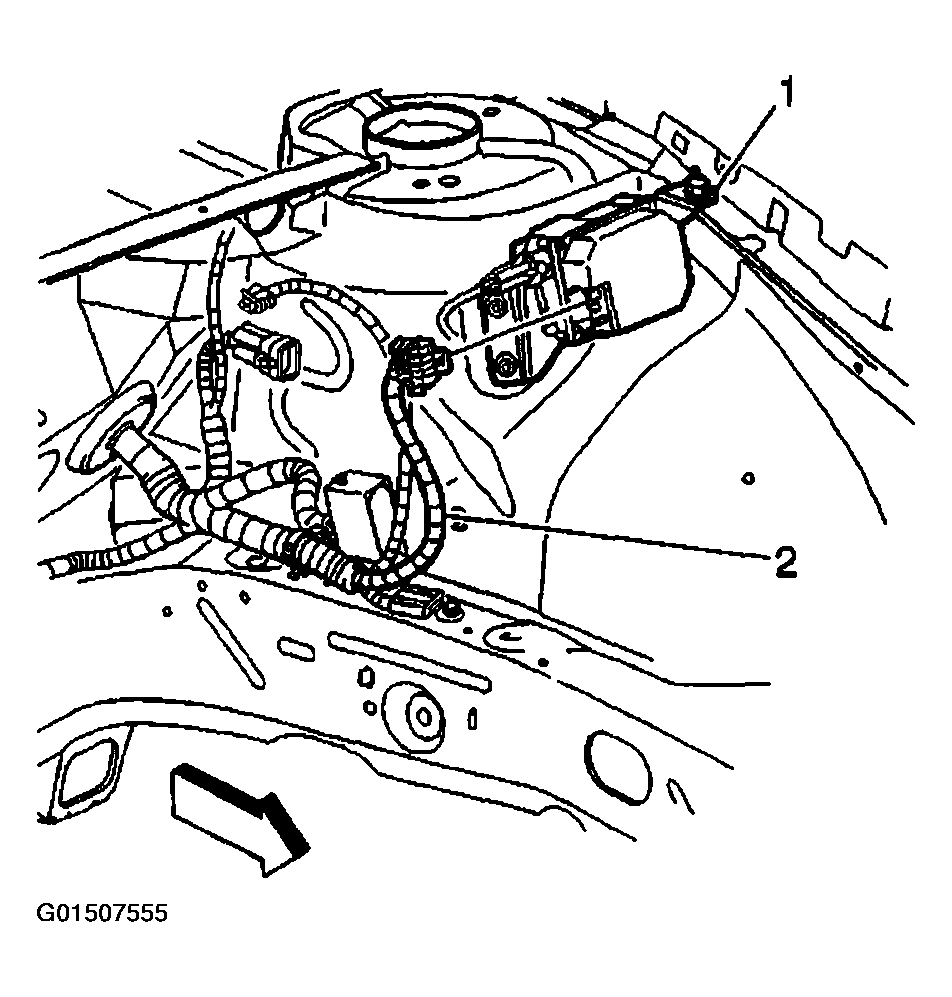

    Fig 2: Connecting Electrical Connector To Cruise Control Module
    G01507555Courtesy of GENERAL MOTORS CORP.
