Removal Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cruise control cable from the cruise control module. Refer to CRUISE CONTROL CABLE REPLACEMENT (L47)  .
  2. Disconnect the electrical connector (2) from the cruise control module.

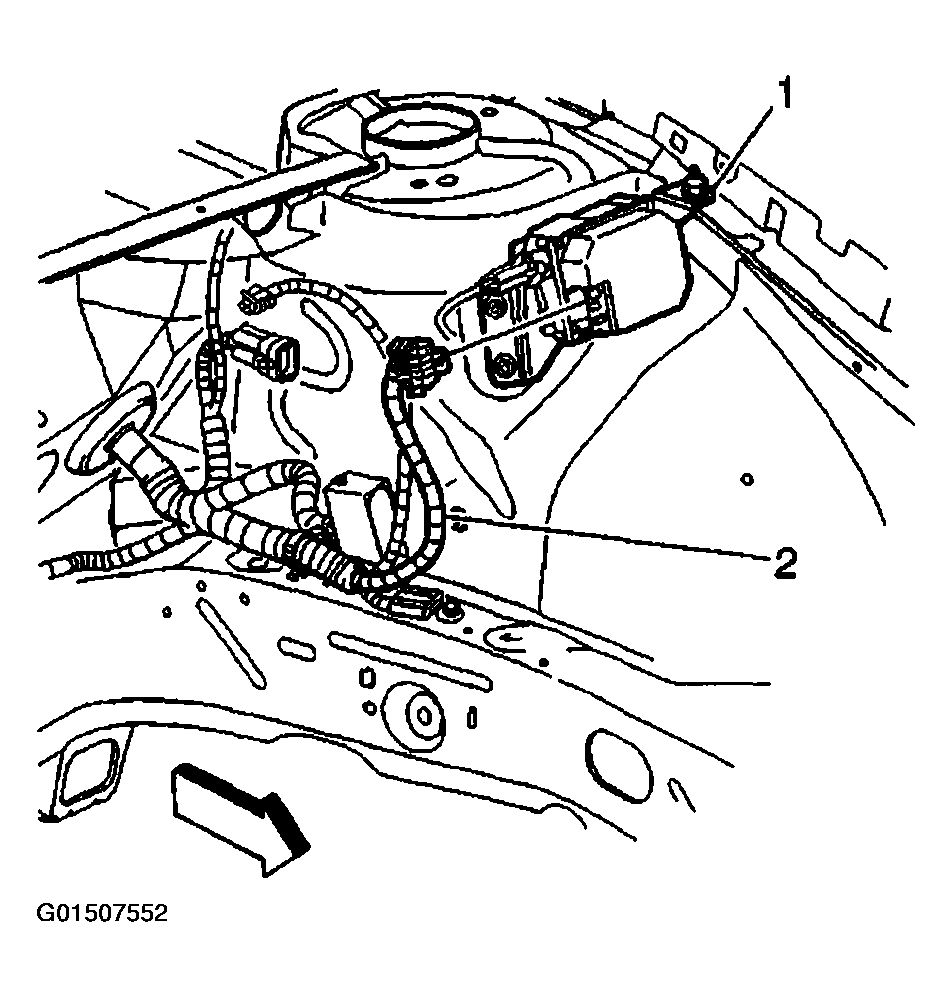

    Fig 1: Disconnecting Electrical Connector From Cruise Control Module
    G01507552Courtesy of GENERAL MOTORS CORP.
  3. Remove the module bracket retaining fasteners (1,3).
  4. Remove the cruise control module and bracket assembly (2) from vehicle.
  5. Remove the module to bracket fasteners.
  6. Remove the module from the bracket.

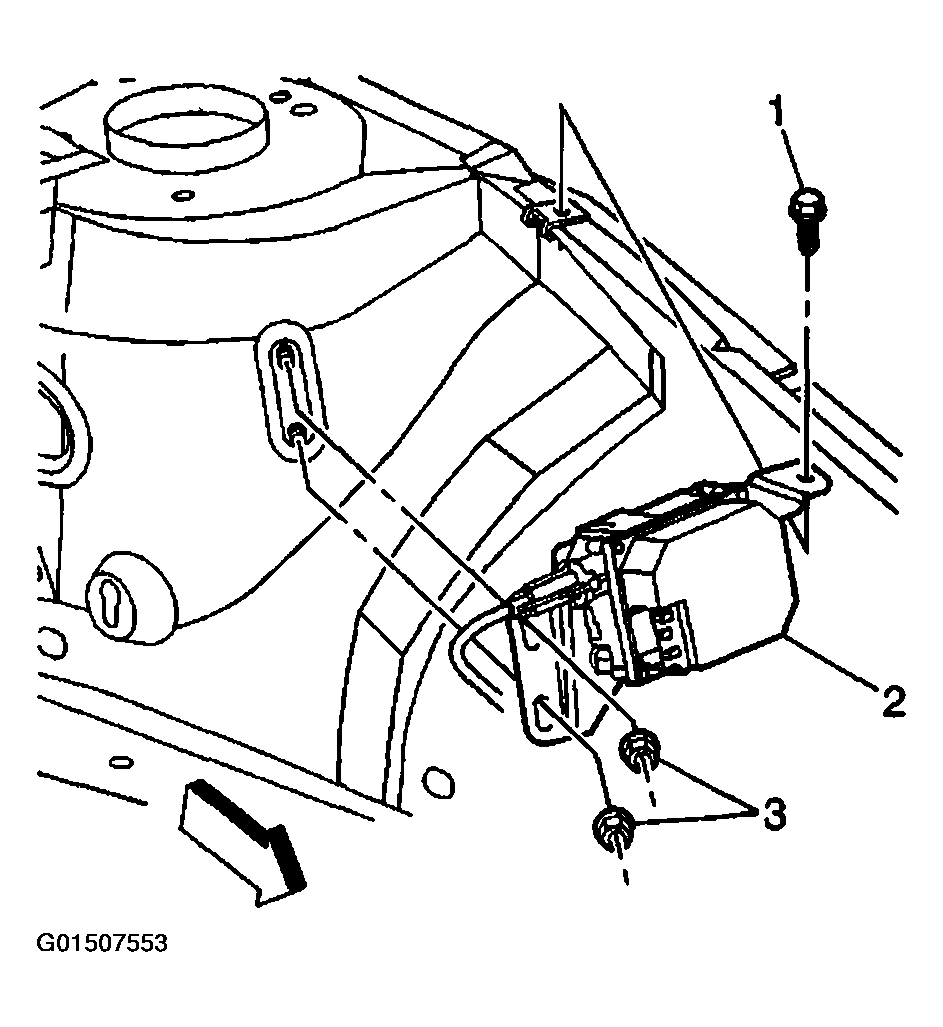

    Fig 2: Removing Module Bracket Retaining Fasteners
    G01507553Courtesy of GENERAL MOTORS CORP.
