Entertainment Component Views

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

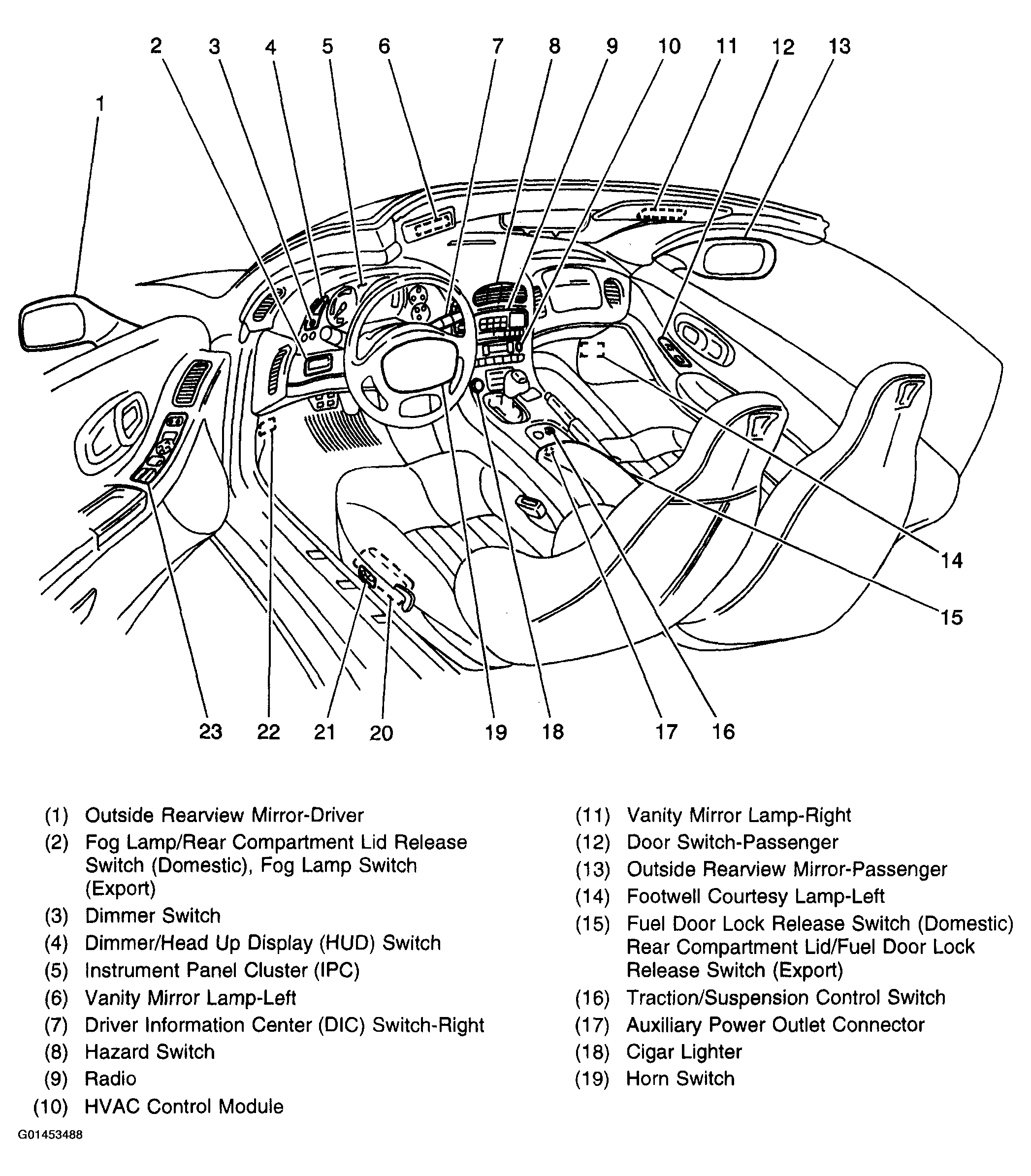

Fig 1: Cockpit View

Courtesy of GENERAL MOTORS CORP.

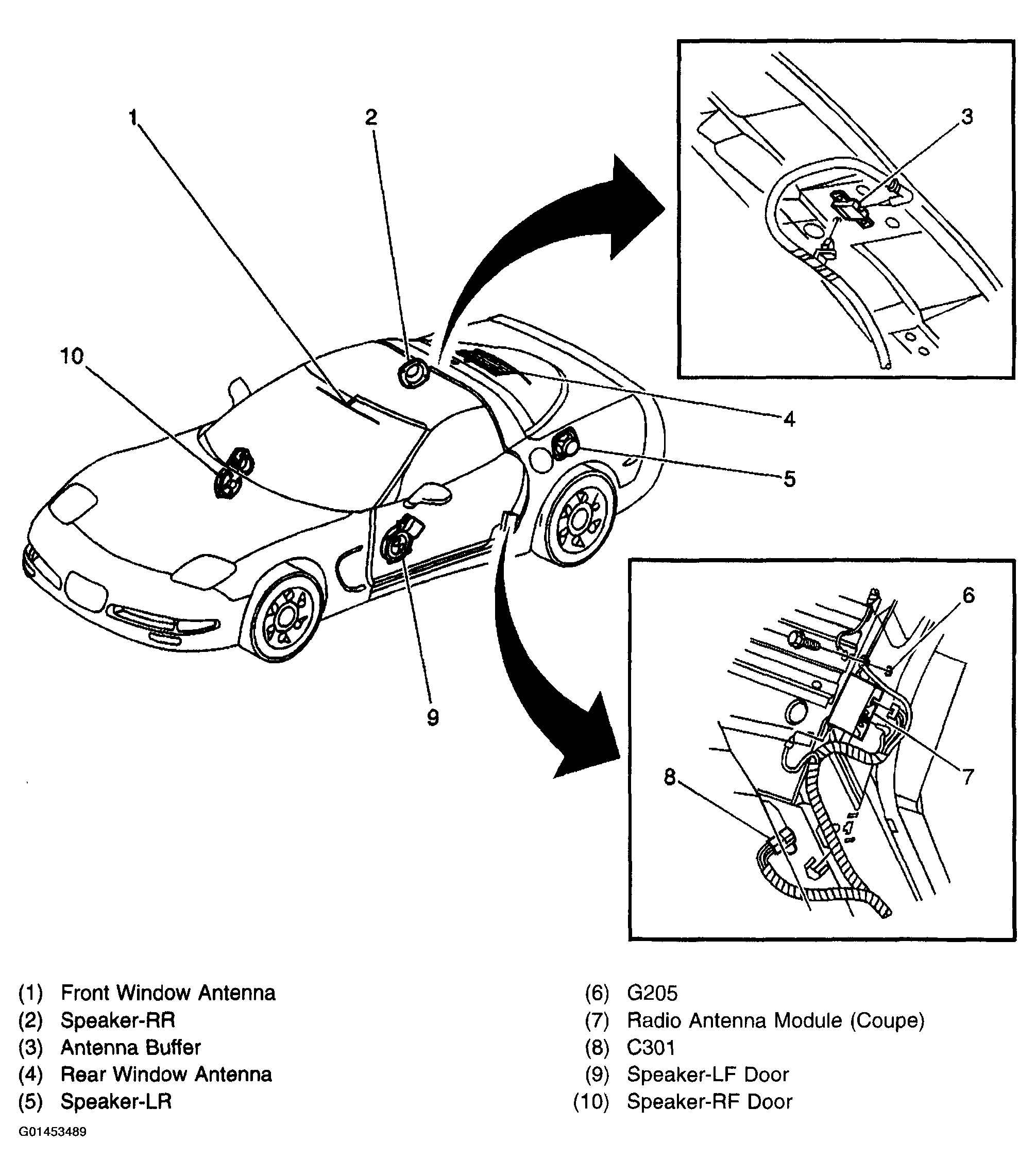

Fig 2: Speakers & Antennas

Courtesy of GENERAL MOTORS CORP.

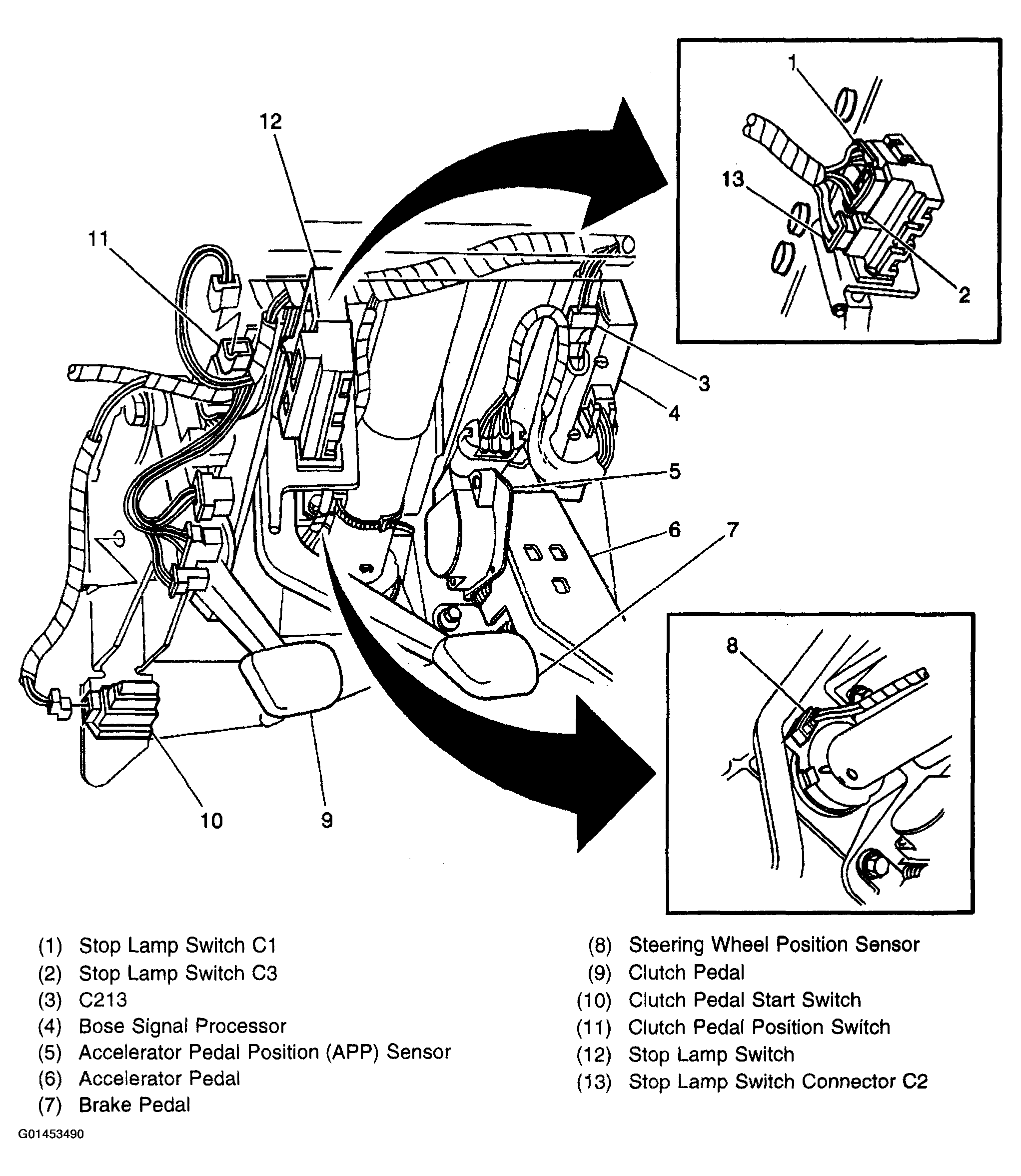

Fig 3: Under Side Of Dash-Left

Courtesy of GENERAL MOTORS CORP.

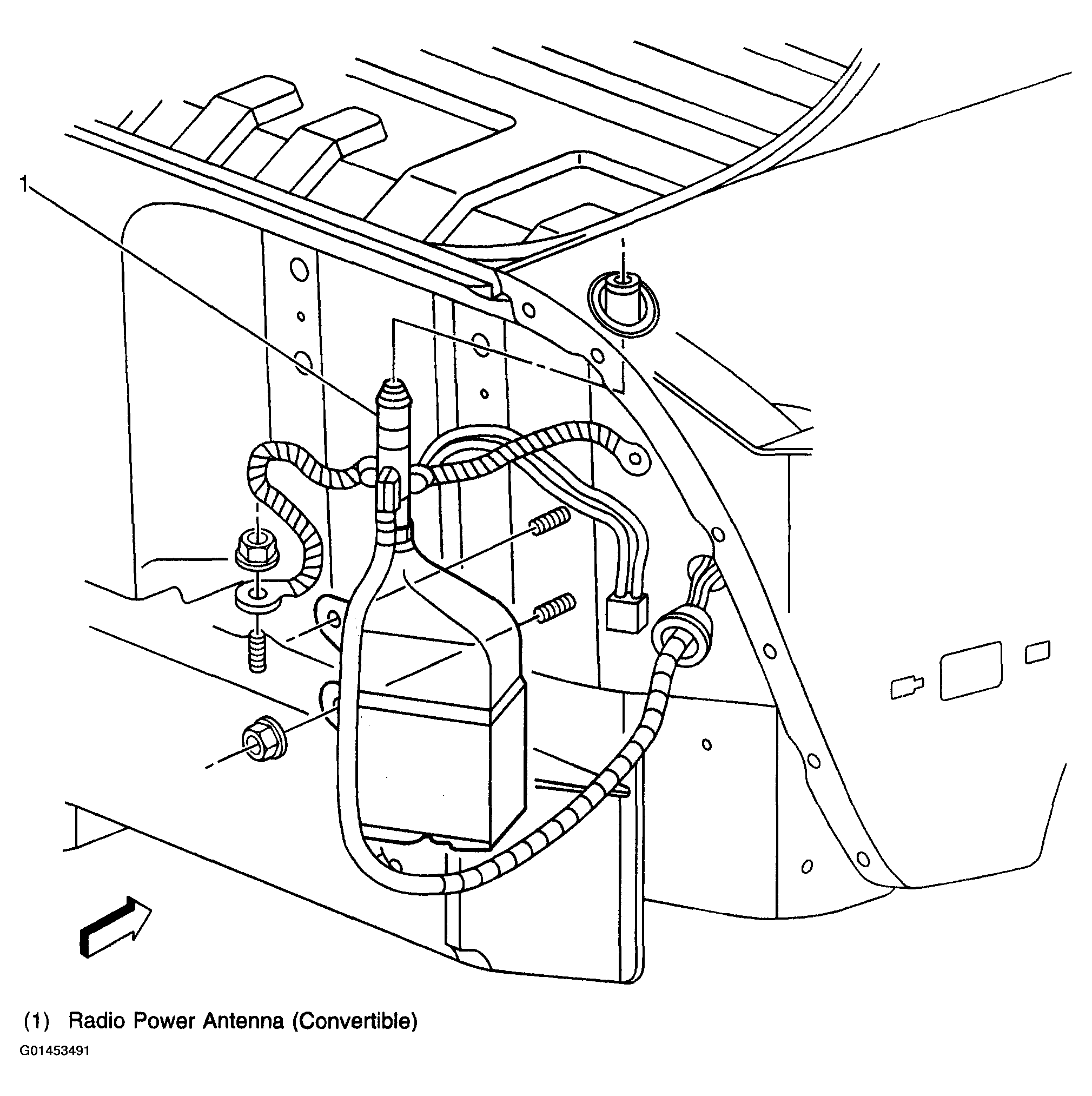

Fig 4: Rear Of Vehicle

Courtesy of GENERAL MOTORS CORP.

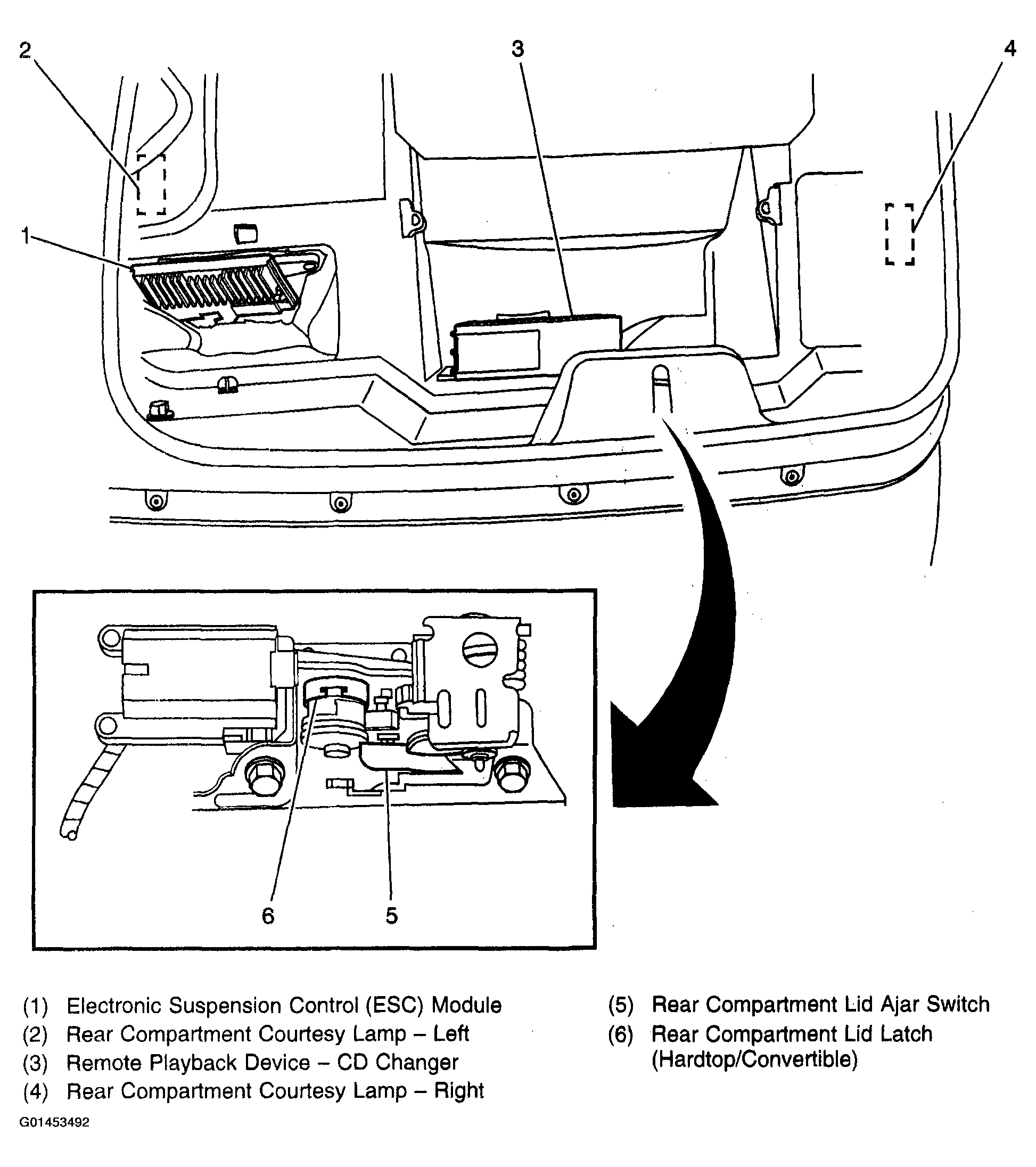

Fig 5: Luggage Compartment

Courtesy of GENERAL MOTORS CORP.
