Removal Procedure
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the door sill plate. Refer to DOOR SILL PLATE REPLACEMENT in Interior Trim.
- Remove the lock pillar trim panel. Refer to TRIM REPLACEMENT - LOCK PILLAR (UPPER CONVERTIBLE) or TRIM REPLACEMENT - LOCK PILLAR (COUPE) or TRIM REPLACEMENT - LOCK PILLAR (LOWER CONVERTIBLE AND HARD TOP) in Interior Trim.

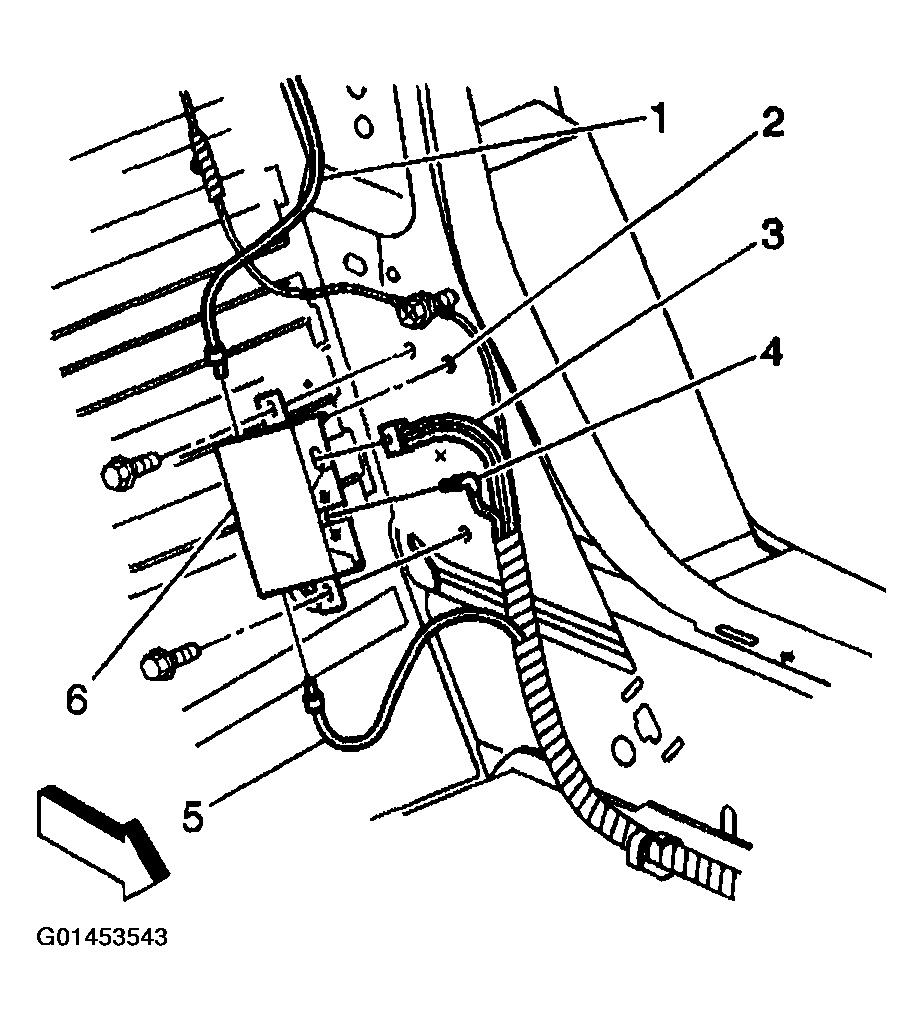

- Disconnect the electrical/audio connector (3) from the antenna module (6).
- Disconnect the following three coaxial cables from the antenna module (6).
- Rear lift window antenna extension (1)
- Radio control (4)
- Front windshield antenna (5)
- Remove the screws retaining the antenna module (6) to the lock pillar.
- Remove the antenna module (6).
