Removal Procedure
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front floor kick-up panel. Refer to KICK-UP PANEL REPLACEMENT - FRONT FLOOR in Interior Trim.
- Remove the cover from the instrument panel (IP) electrical center.
- Remove the RDO/ANT MiniFuse® #24 from the IP electrical center.
- Remove the IP left lower insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.

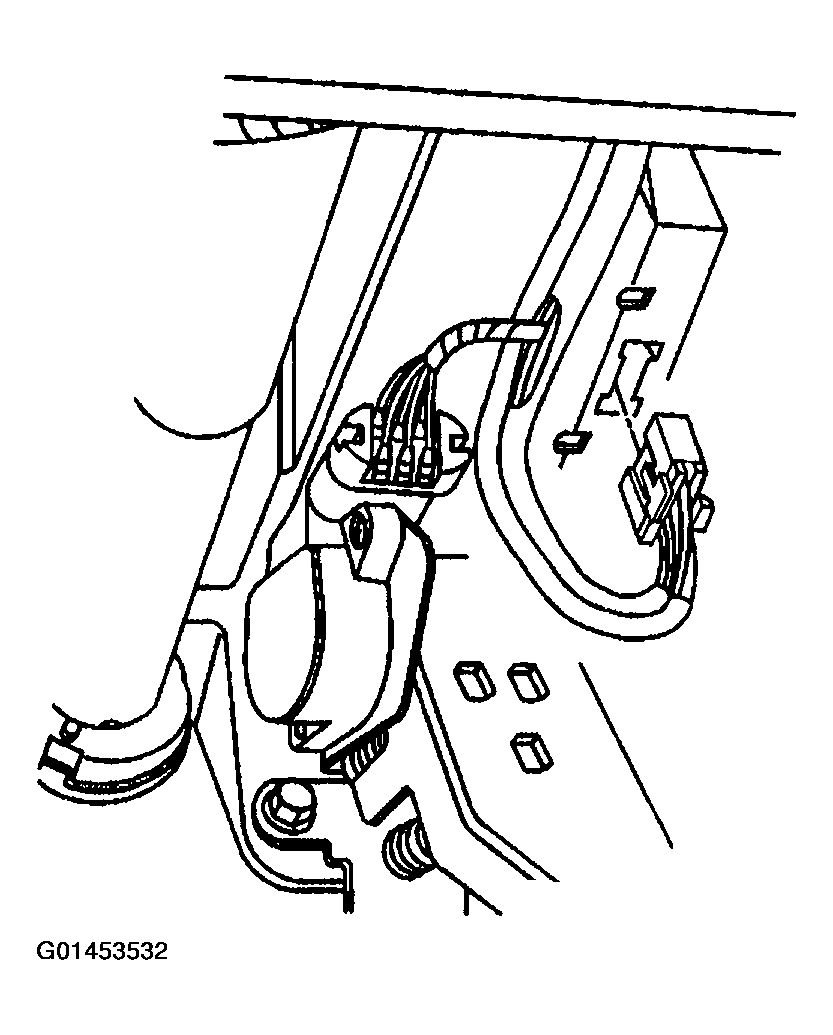

- Disconnect the electrical/audio connector from the Bose® signal processing module.
Courtesy of GENERAL MOTORS CORP.
Important: The signal processing module is only held in place by retaining bolts. Be sure to support the signal processor upon removal of the bolts.

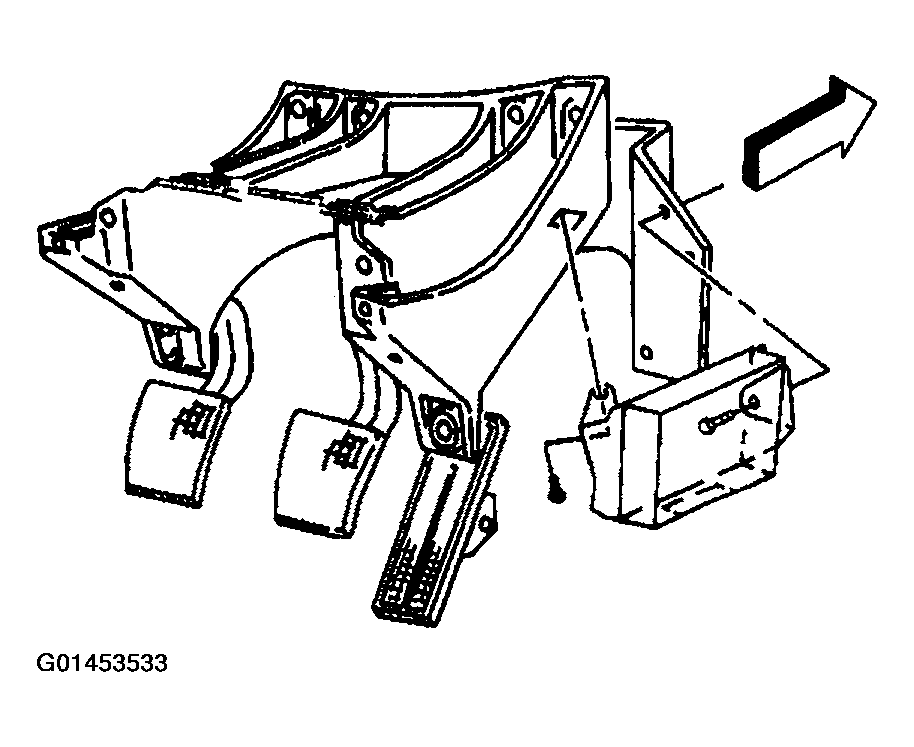

- Remove the bolts retaining the Bose® signal processor to the steering column bracket.
- Remove the signal processing module.
